Tree rack one-sided type 97845
Code: 97845

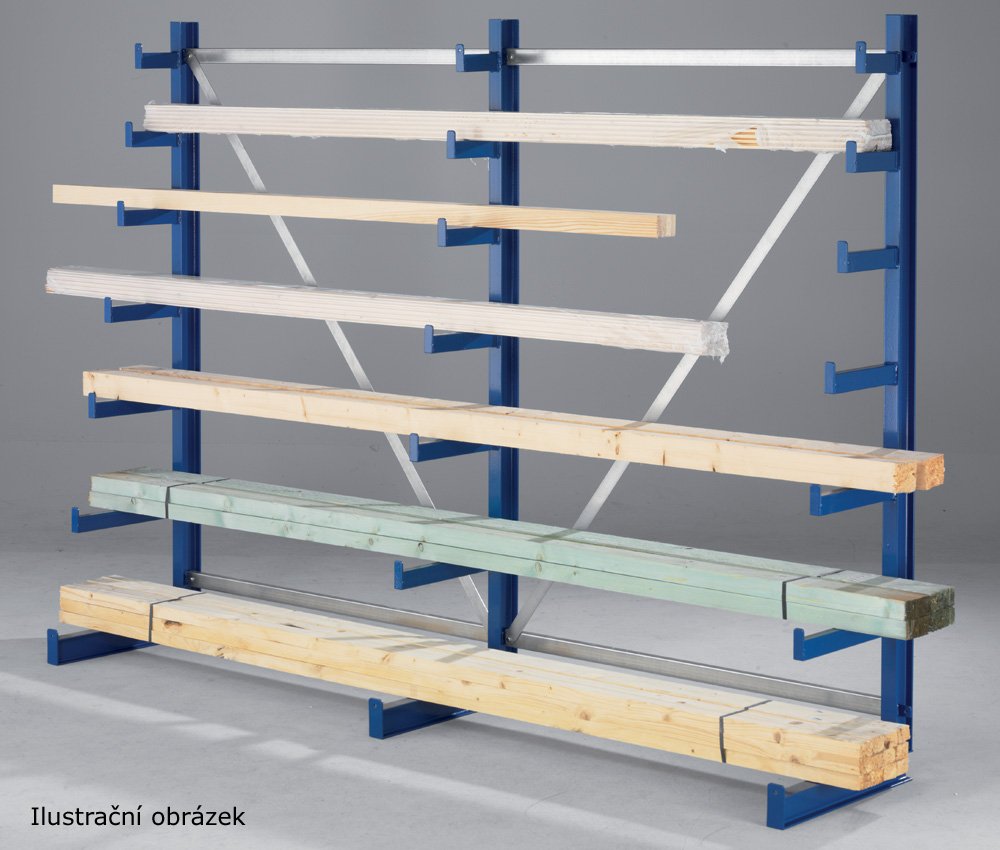

One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg. full description and parameters
Product description
Tree rack one-sided type 97845
One-sided ATLAS ST cantilever rack with different arm lengths. Number of arms 6 per web, number of webs 5. Rack height 2000 mm, width 5400 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
- ATLAS ST one-sided cantilever rack with different arm lengths
- with the number of webs 3, the total width of the shelf is 2700 mm
- with the number of webs 4, the total width of the shelf is 4050 mm
- with the number of webs 5, the total width of the rack is 5400 mm
- with the number of webs 6, the total width of the rack is 6750 mm
- axial distance of webs is 1350 mm
- arm capacity 200kg

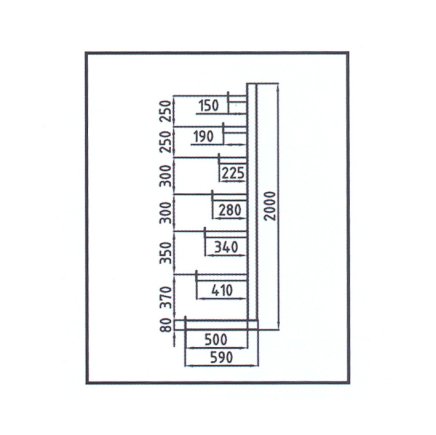

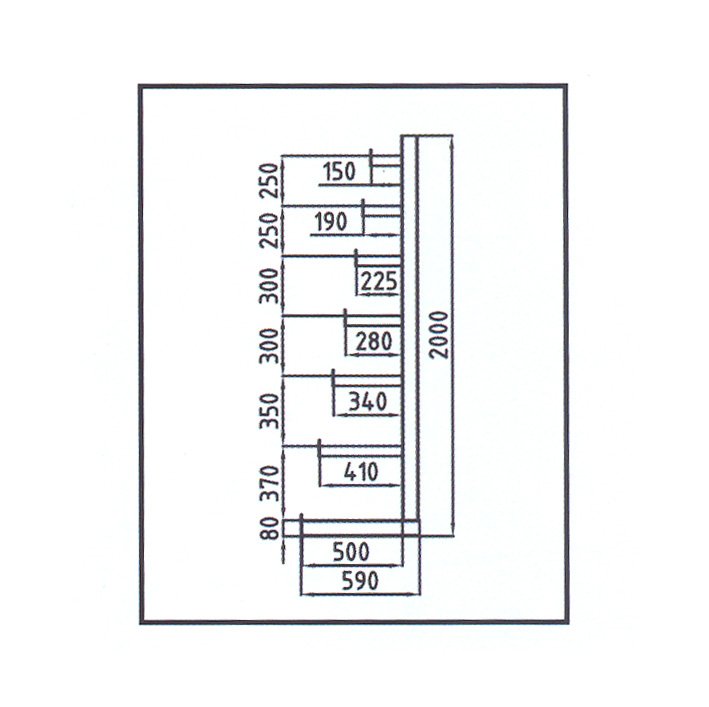

- clear arm depth 500, 410, 340, 280, 225, 190 and 150 mm
Technical parameters
Total height
2000 mm
Width
5400 mm
Depth
590 mm
Column load capacity
1080 kg
Carrying capacity of the arm
200 kg
Number of arms
6
Number of webs
5
Mass
117 kg
Warranty (years)
5
Manufacturer
All models
Technical parameters
Code
Mass
Number of webs
Number of arms
Carrying capacity of the arm
The bearing capacity of the web is one-sided
Column load capacity
Total height
Width
Depth
In stock
Price
You are currently browsing
97845
117 kg
5
6
200 kg
— kg
1080 kg
2000 mm
5400 mm
590 mm
No
442.89 Eur
