One-sided tree rack (4 models)
Code: 97843

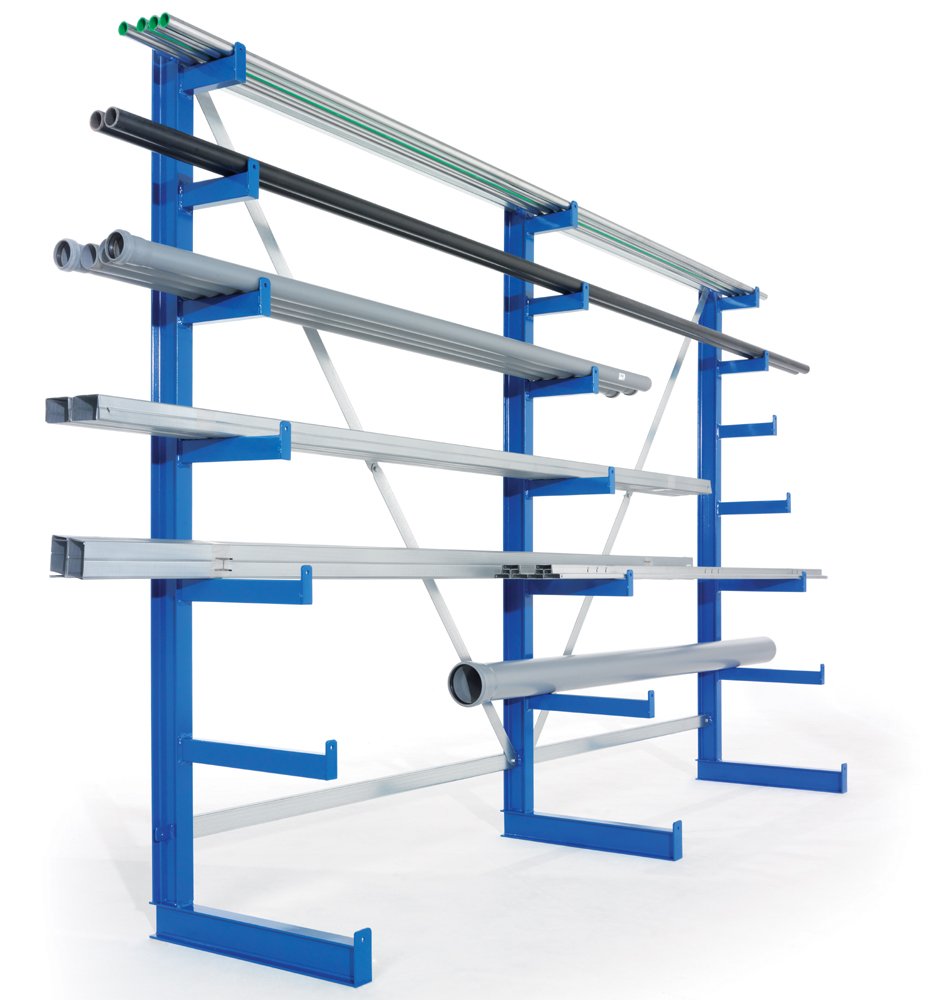

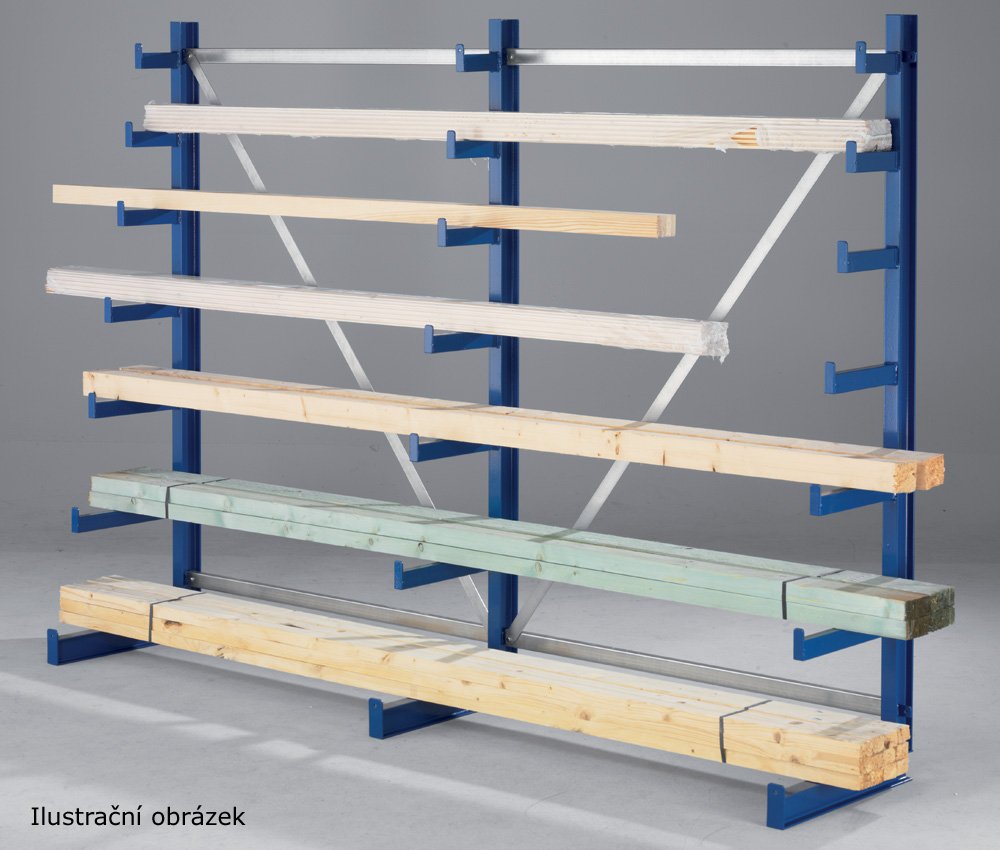

Atlas ST single-sided cantilever racks with different arm lengths. Number of arms 6 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, full description and parameters
Product description
Tree rack one-sided type 97843
Atlas ST single-sided cantilever racks with different arm lengths. Number of arms 6 per web, number of webs 3 (total rack width 2700 mm), 4 (4050 mm), 5 (5400 mm) or 6 (6750 mm). Rack height 2000 mm, depth 590 mm, color blue RAL 5010. Arm capacity 200 kg.
- ATLAS ST one-sided cantilever rack with different arm lengths
- with the number of webs 3, the total width of the shelf is 2700 mm
- with the number of webs 4, the total width of the shelf is 4050 mm
- with the number of webs 5, the total width of the rack is 5400 mm
- with the number of webs 6, the total width of the rack is 6750 mm
- axial distance of webs is 1350 mm
- arm capacity 200kg

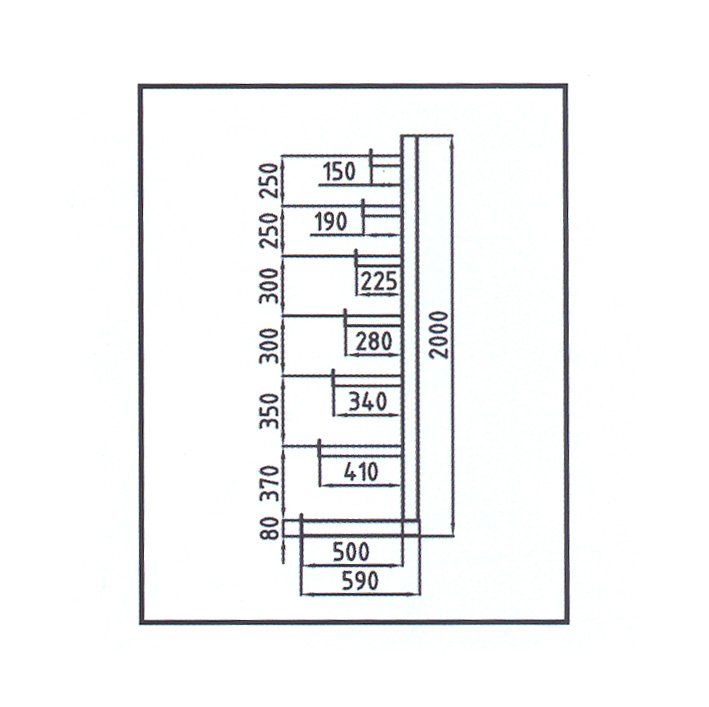

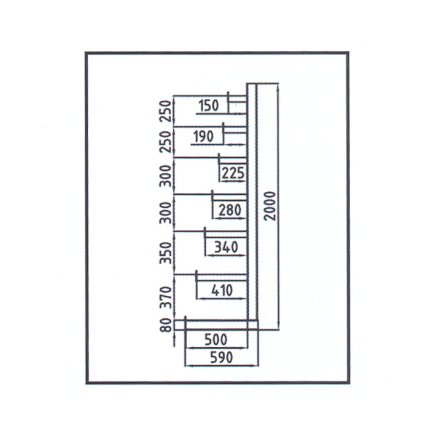

- clear arm depth 500, 410, 340, 280, 225, 190 and 150 mm
Technical parameters
Total height
2000 mm
Width
2700 mm
Depth
590 mm
Column load capacity
1080 kg
The bearing capacity of the web is one-sided
900 kg
Carrying capacity of the arm
200 kg
Number of arms
6
Number of webs
3
Mass
70 kg
Warranty (years)
5
Manufacturer
All models
Technical parameters
Code
Mass
Number of webs
Number of arms
Carrying capacity of the arm
The bearing capacity of the web is one-sided
Column load capacity
Total height
Width
Depth
In stock
Price
You are currently browsing
97843
70 kg
3
6
200 kg
900 kg
1080 kg
2000 mm
2700 mm
590 mm
No
259.90 Eur
