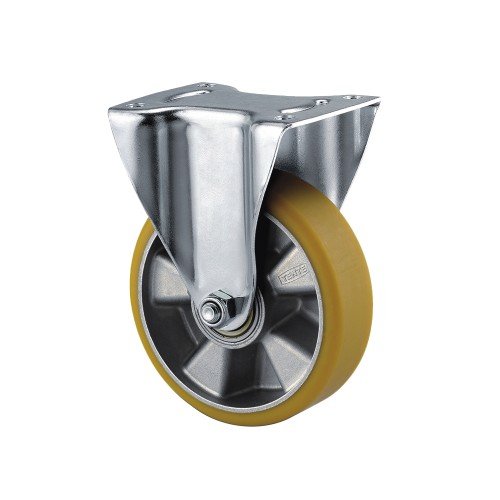

Solid brown instrument wheel with a diameter of 125 mm with a mounting plate
Code: 3478ITP125P63
Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, wheel attached with a central screw and nut, attachment with a plate. Wheel center made of aluminum alloy, full description and parameters
Product description
Fixed instrument wheel brown with ø 125 mm with mounting plate 3478ITP125P63
Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, wheel attached with a central screw and nut, attachment with a plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 137 x 115 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 300 kg
- static load capacity 600 kg
- wheel diameter 125 mm
- tread width 50 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 161 mm
Technical parameters
Carrying capacity
300 kg
Wheel diameter
125 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3478ITP125P63
ball
125 mm
300 kg
No
34.16 Eur
