Fixed instrument wheel brown with mounting plate (4 models)
Code: 3478ITP100P62
Fixed instrument wheel with a diameter of 100 mm, fork made of pressed steel, galvanized, wheel fixed with a central screw and nut, fixing with a plate. Wheel center made of aluminum alloy, tread cast full description and parameters
Product description

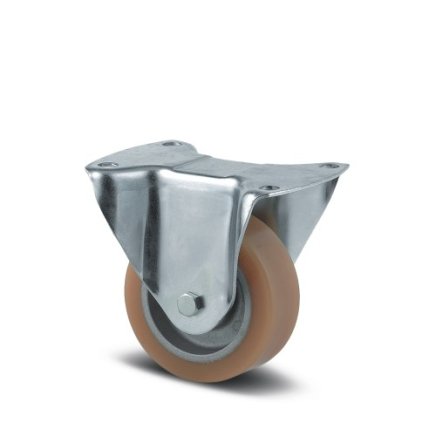

Fixed instrument wheel, brown, ø 100 mm with mounting plate 3478ITP100P62
Fixed instrument wheel with a diameter of 100 mm, fork made of pressed steel, galvanized, wheel fixed with a central screw and nut, fixing with a plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 105 x 85 mm
- hole spacing 80/77 x 60 mm
- hole diameter 9 mm
- dynamic load capacity 250 kg
- static load capacity 500 kg
- wheel diameter 100 mm
- tread width 40 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
250 kg
Wheel diameter
100 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3478ITP100P62
ball
100 mm
250 kg
No
33.98 Eur
