Instrument wheel gray with mounting plate, rotatable with cover (3 models)
Code: 2470PJH075P40
Rotating instrument wheel with a diameter of 75 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel with screw and nut, attachment with plate. The center of the wheel is full description and parameters
Product description

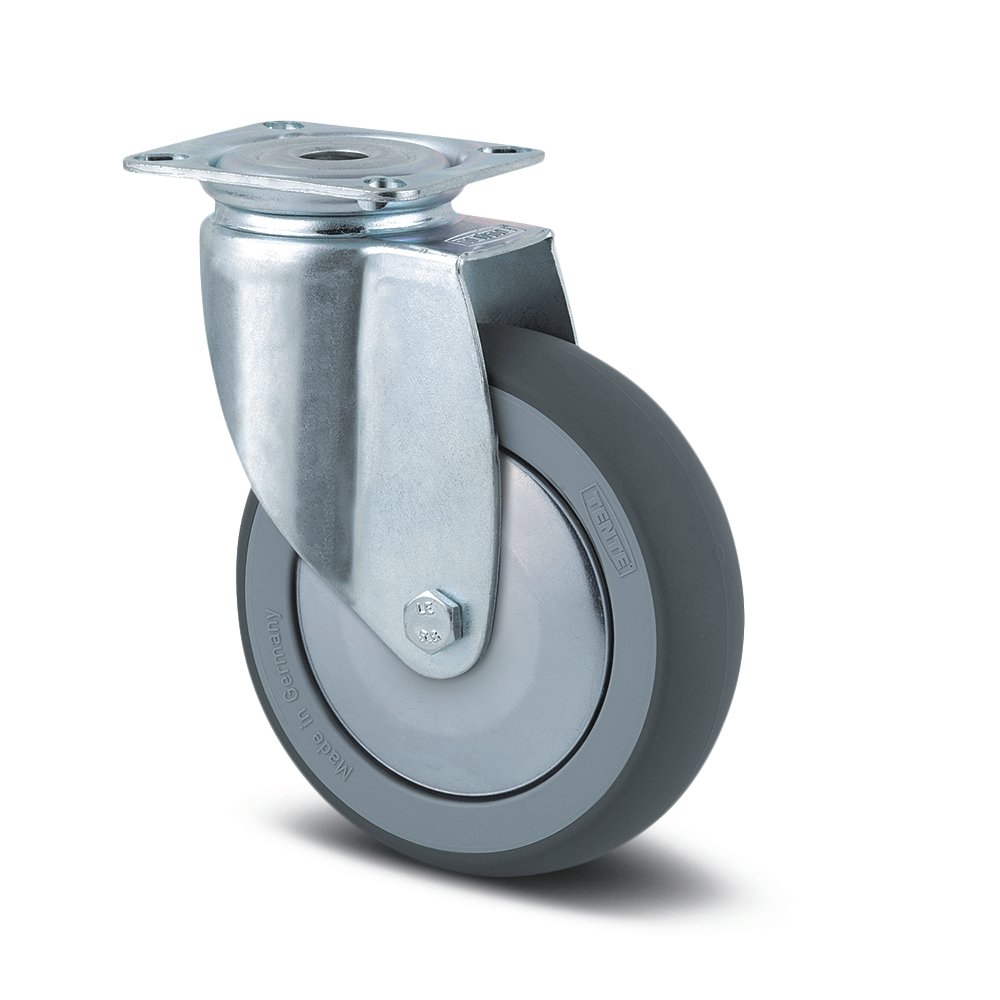

Instrument wheel gray ø 75 mm with mounting plate 2470PJH075P40
Rotating instrument wheel with a diameter of 75 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel with screw and nut, attachment with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- plate size 60 x 60 mm
- hole spacing 48/38 x 48/38 mm
- hole diameter 6.3 mm
- turning radius 61.5 mm
- dynamic load capacity 75 kg
- static load capacity 150 kg
- wheel diameter 75 mm
- tread width 25 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 100 mm
Technical parameters
Carrying capacity
75 kg
Wheel diameter
75 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
