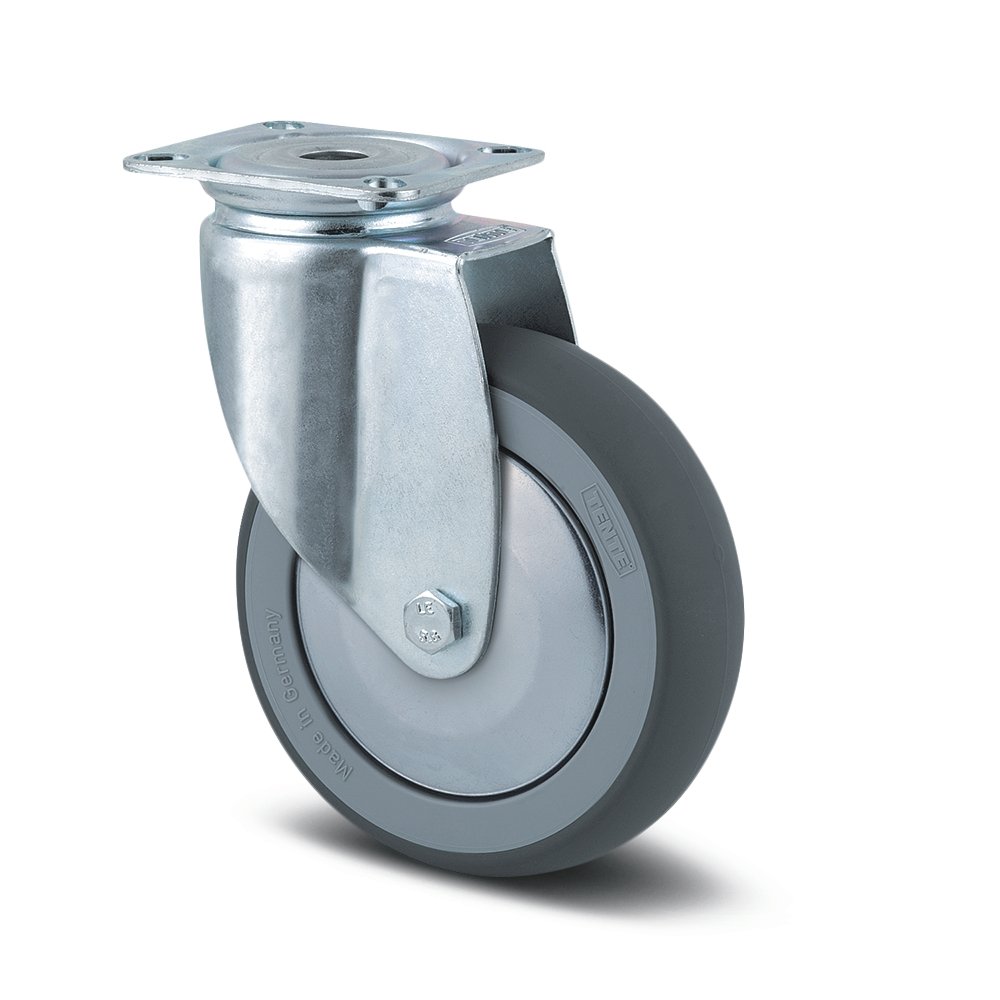

Gray instrument wheel ø 100 mm with plate attachment, rotatable with cover
Code: 2470PJH100P50
Rotating instrument wheel with a diameter of 100 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel with screw and nut, attachment with plate. The center of the wheel is full description and parameters
Product description
Tool wheel gray ø 100 mm with mounting plate 2470PJH100P50
Rotating instrument wheel with a diameter of 100 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel with screw and nut, attachment with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- plate size 77 x 67 mm
- hole spacing 61.5/56 x 51.5/46.5 mm
- hole diameter 8.5 mm
- turning radius 88 mm
- dynamic load capacity 80 kg
- static load capacity 160 kg
- wheel diameter 100 mm
- tread width 32 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 135 mm
Technical parameters
Carrying capacity
80 kg
Wheel diameter
100 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
2470PJH100P50
ball
100 mm
80 kg
Yes
13.46 Eur
