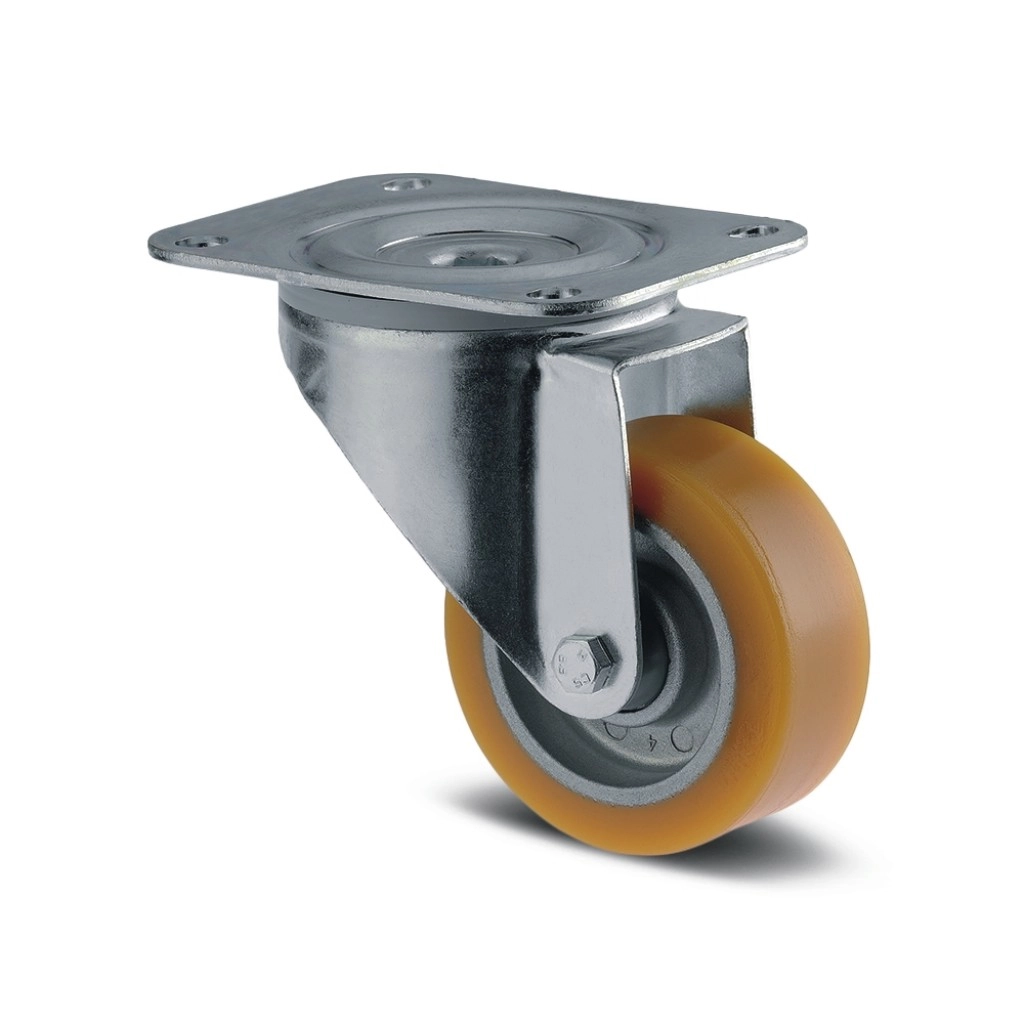

Instrument wheel brown with mounting plate (3 models)
Code: 3470ITP100P63
Instrument wheel ø 100 mm, fork made of pressed steel, galvanized, two-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, mounting with a plate. Wheel center full description and parameters
Product description
Tool wheel brown ø 100 mm with mounting plate 3470ITP100P63
Instrument wheel ø 100 mm, fork made of pressed steel, galvanized, two-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, mounting with a plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 300 kg
- static load capacity 600 kg
- wheel diameter 100 mm
- tread width 40 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
300 kg
Wheel diameter
100 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3470ITP100P63
ball
100 mm
300 kg
No
45.60 Eur
