Brown instrument wheel with a diameter of 200 mm by drying with a hot plate
Code: 3470ITP200P63
Instrument wheel ø 200 mm, fork made of pressed steel, galvanized, two-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, mounting with a plate. Wheel center full description and parameters
Product description

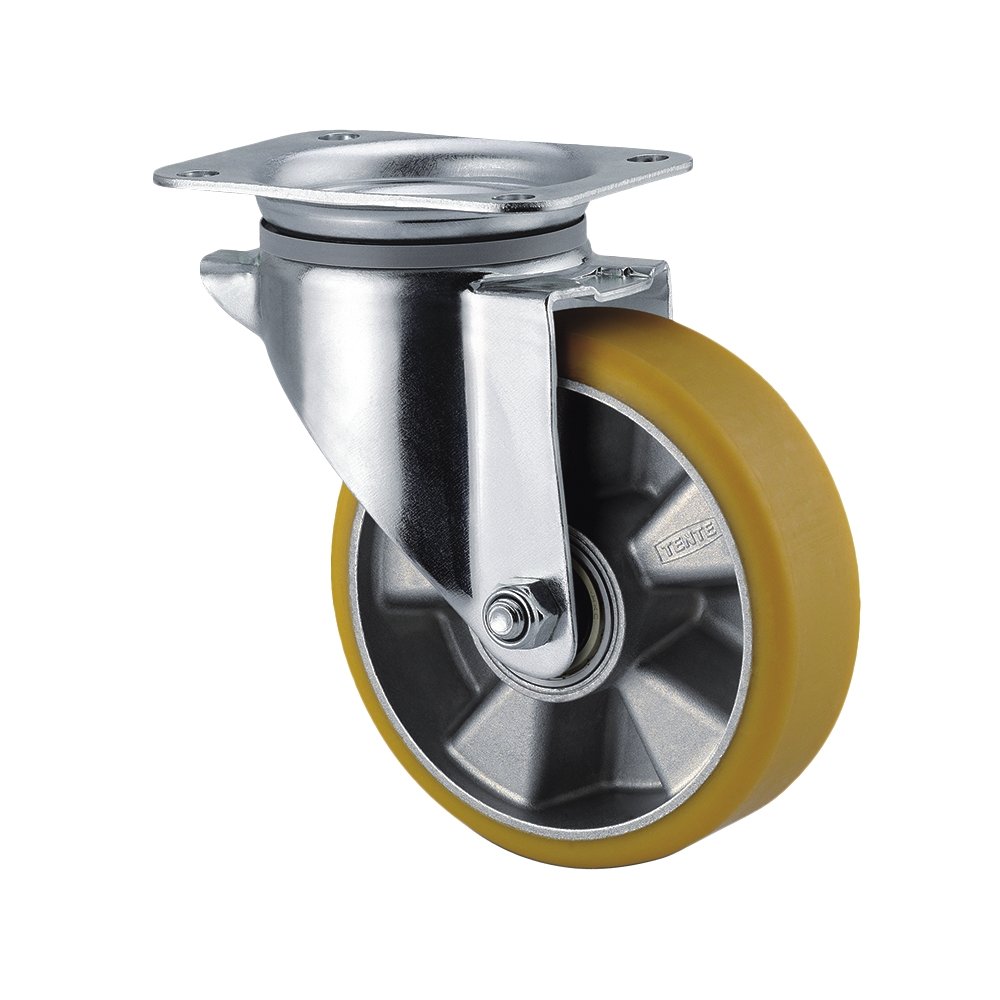

Instrument wheel brown ø 200 mm with mounting plate 3477ITP200P63
Instrument wheel ø 200 mm, fork made of pressed steel, galvanized, two-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, mounting with a plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 350 kg
- static load capacity 700 kg
- wheel diameter 200 mm
- tread width 50 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 240 mm
Technical parameters
Carrying capacity
350 kg
Wheel diameter
200 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3470ITP200P63
ball
200 mm
350 kg
No
58.30 Eur
