Handling chassis with plate 24041933 (2 models)
Code: 24041933
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes a laminated board, 2x swivel casters with brakes, and 2x full description and parameters
Mounted steel chassis 24041933

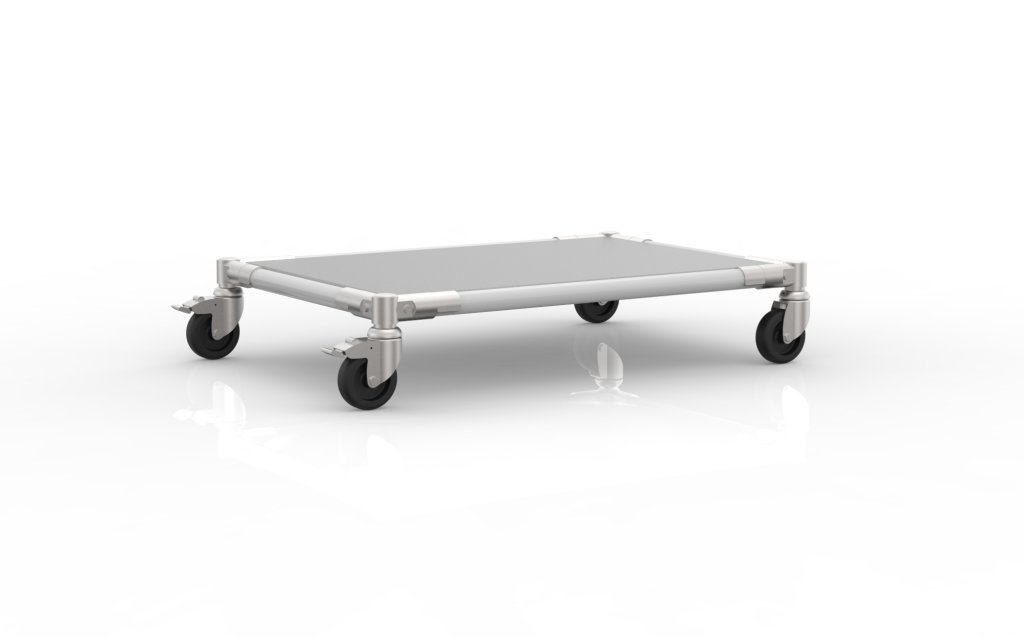

A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes a laminated board, 2x swivel casters with brakes, and 2x swivel casters without brakes, with a diameter of 75 mm, which allow for easy handling of objects. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 138 x 678 x 478 mm.
- a trolley made from a tubular system
- laminated board
- 2x swivel wheels with brakes, 2x without brakes
- wheel diameter 75 mm
- internal dimensions for a crate measuring 600 x 400 mm
- load capacity 100 kg138 x 678 x 478 mm
- Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).

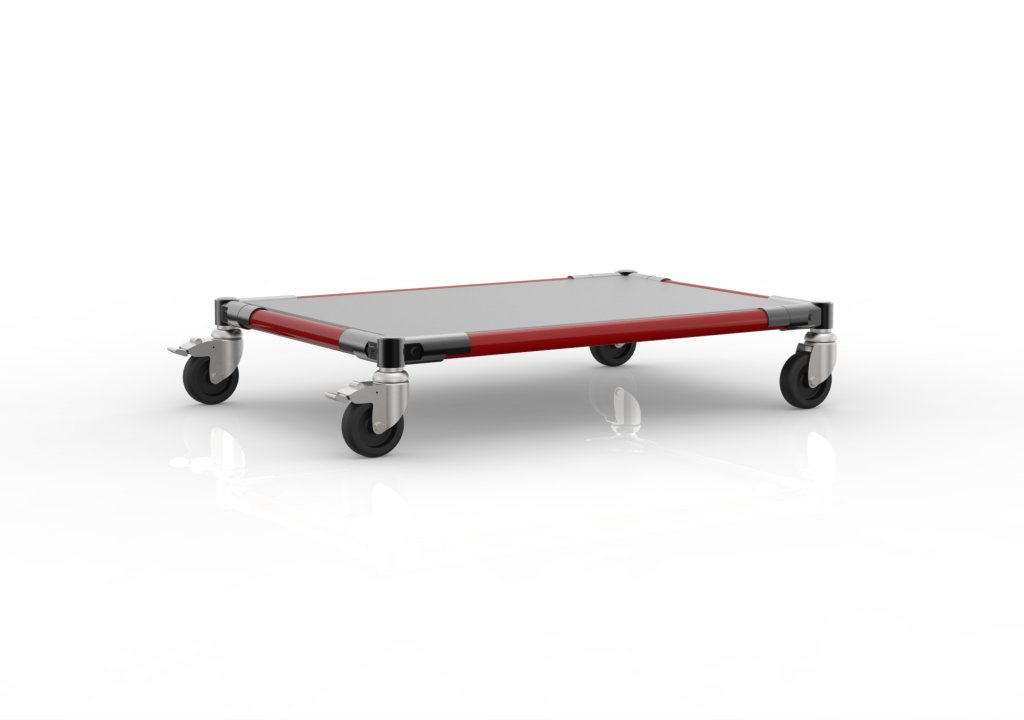

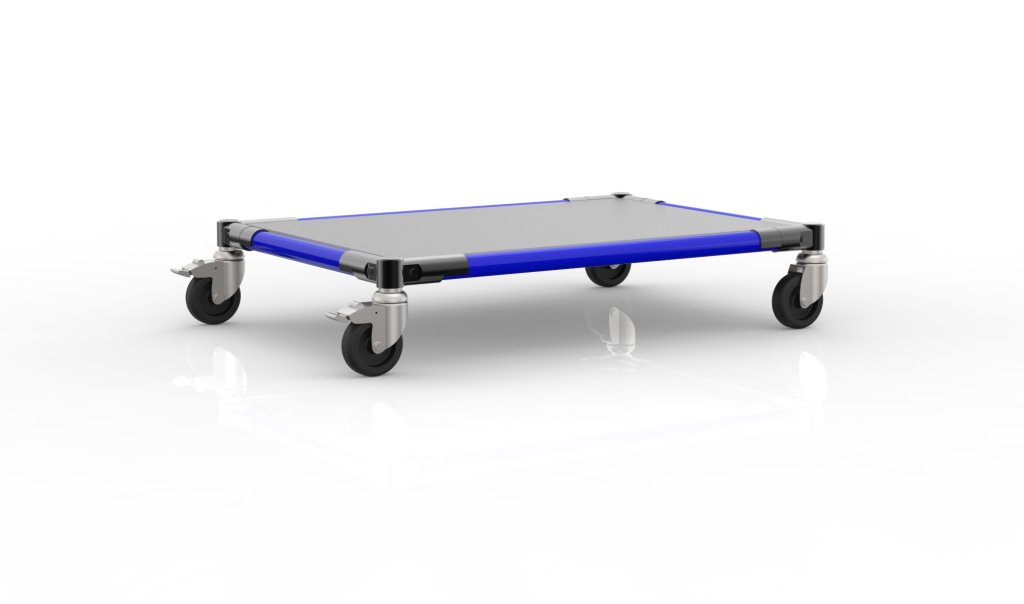

| Color variants | ESD variant | Stainless steel variant |
![]() |
![]() |
![]() |

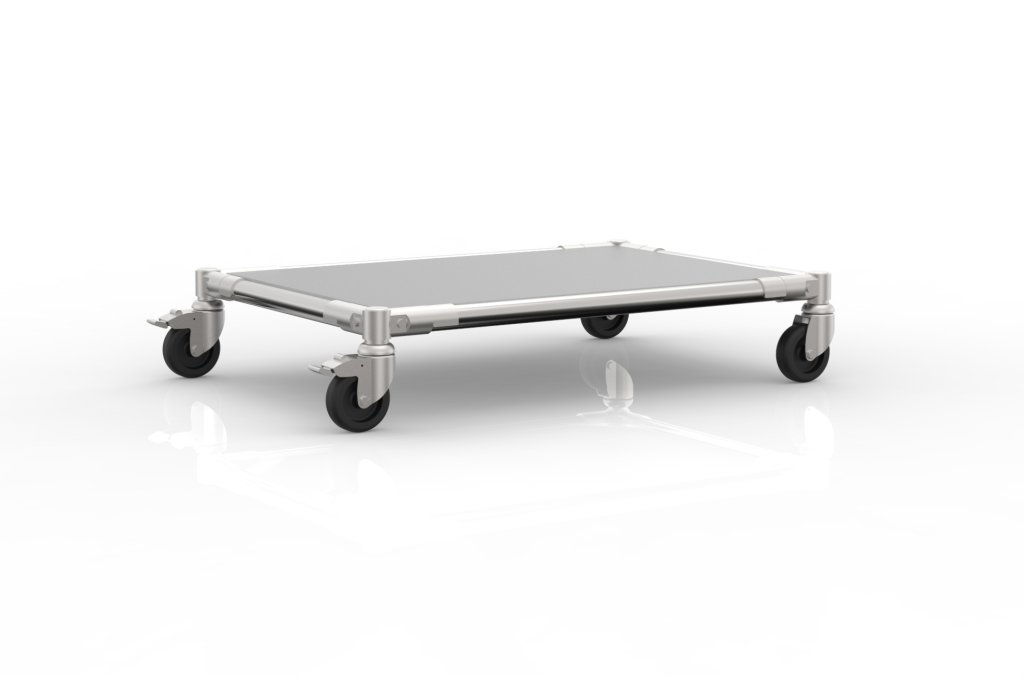

| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
![]() |
![]() |
![]() |
| metal clutches are always available in three variants - black, silver and nickel | ||
