Handling chassis with handle 24041932 (3 models) - 1

Handling chassis with handle 24041932 (3 models) - 2

Handling chassis with handle 24041932 (3 models)

Code: 24041932

Product drawing 24041932

Product description

Mounted steel chassis with handle 24041932

A handling trolley with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 900 x 678 x 478 mm.

a trolley made from a tubular system
2x swivel wheels with brakes, 2x without brakes
wheel diameter 75 mm
handle for easier handling
internal dimensions for a crate measuring 600 x 400 mm
high load capacity 100 kg
dimensions 900 x 678 x 478 mm.

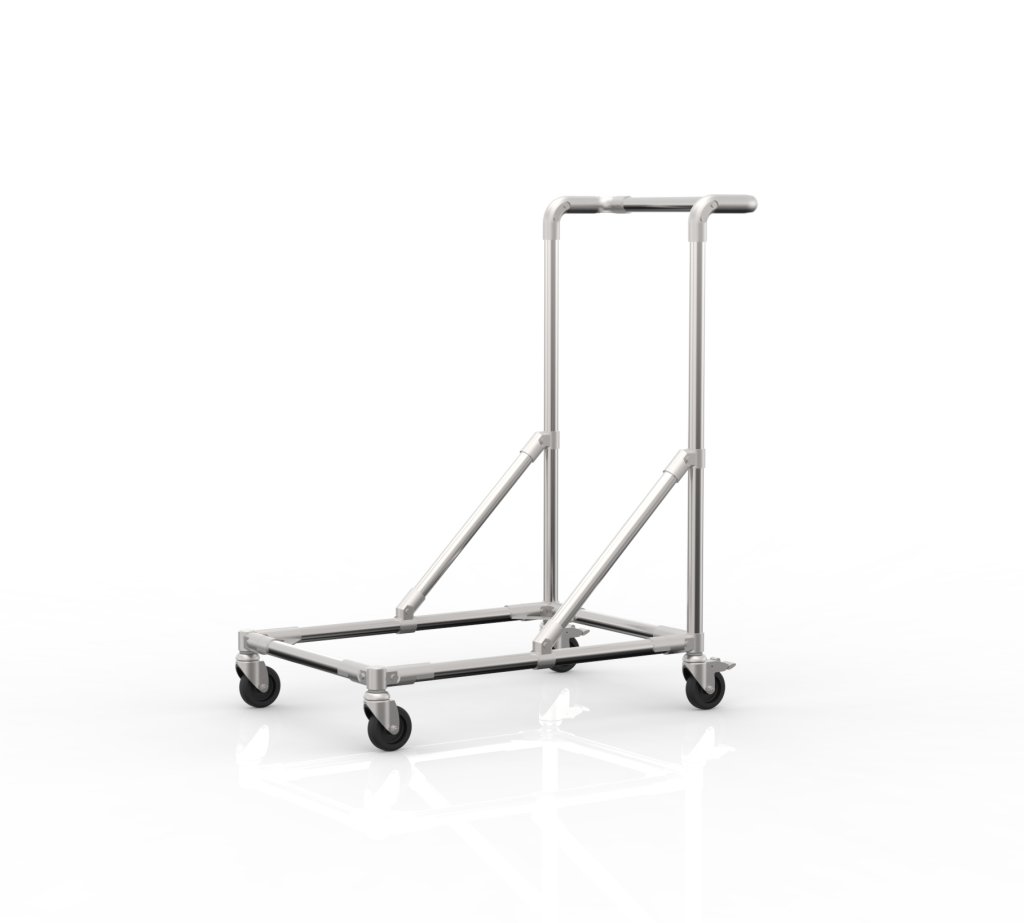

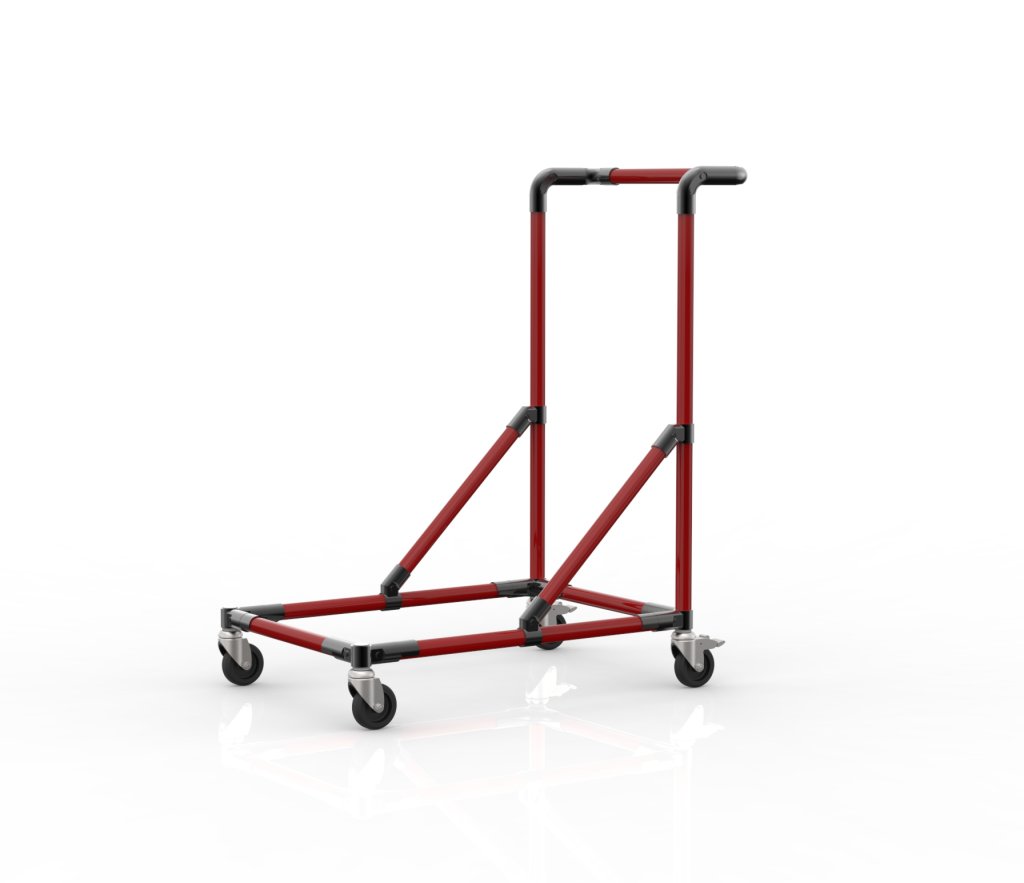

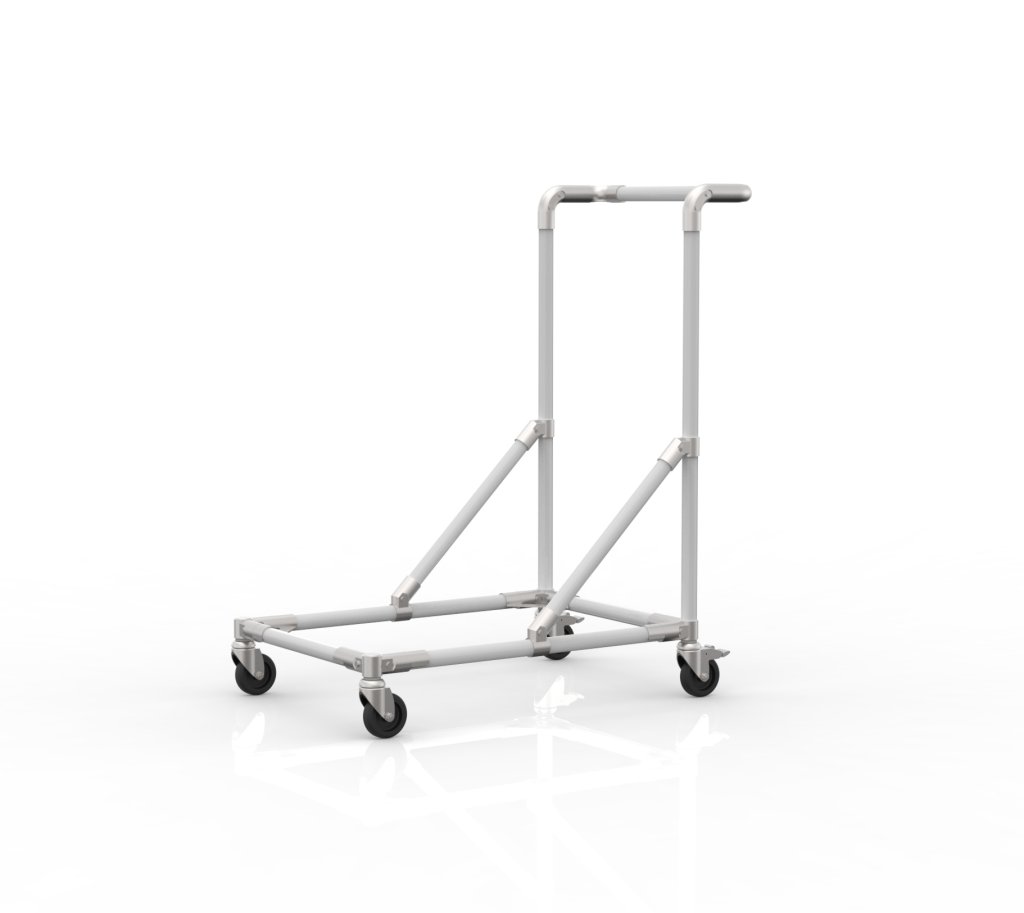

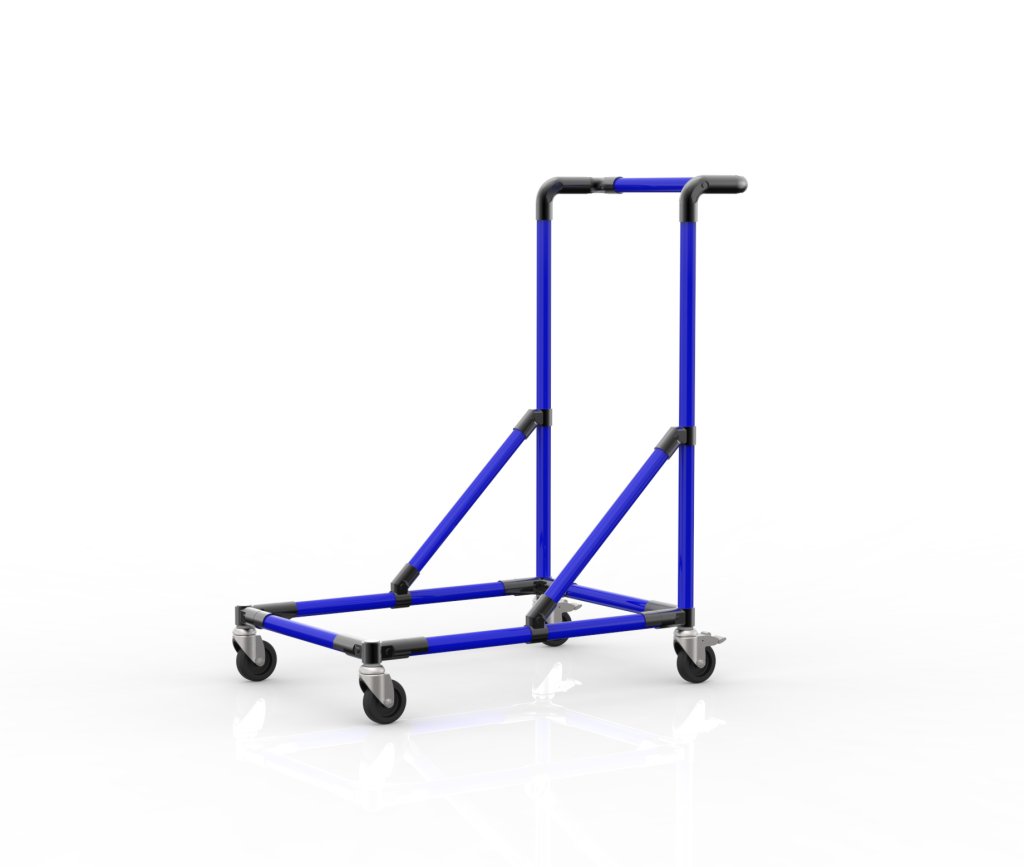

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).

Color variants	ESD variant	Stainless steel variant

1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)

Black variant	Nickel variant	Silver variant

metal clutches are always available in three variants - black, silver and nickel

Technical parameters

Total height

900 mm

Width

678 mm

Depth

478 mm

Carrying capacity

100 kg

Wheel diameter

75 mm

Warranty (years)

All models

Technical parameters

Code

Depth

Carrying capacity

Wheel diameter

Total height

Height

Width

In stock

Price

You are currently browsing

24041932

478 mm

100 kg

75 mm

900 mm

— mm

678 mm

114.51 Eur

To the basket

24041936

478 mm

160 kg

75 mm

900 mm

350 mm

840 mm

678 mm

127.49 Eur

To the basket

24041938

678 mm

160 kg

75 mm

900 mm

350 mm

840 mm

878 mm

127.49 Eur

To the basket
