Gravity rack 22013104
Code: 22013104
Falling rack from a tubular modular system full description and parameters

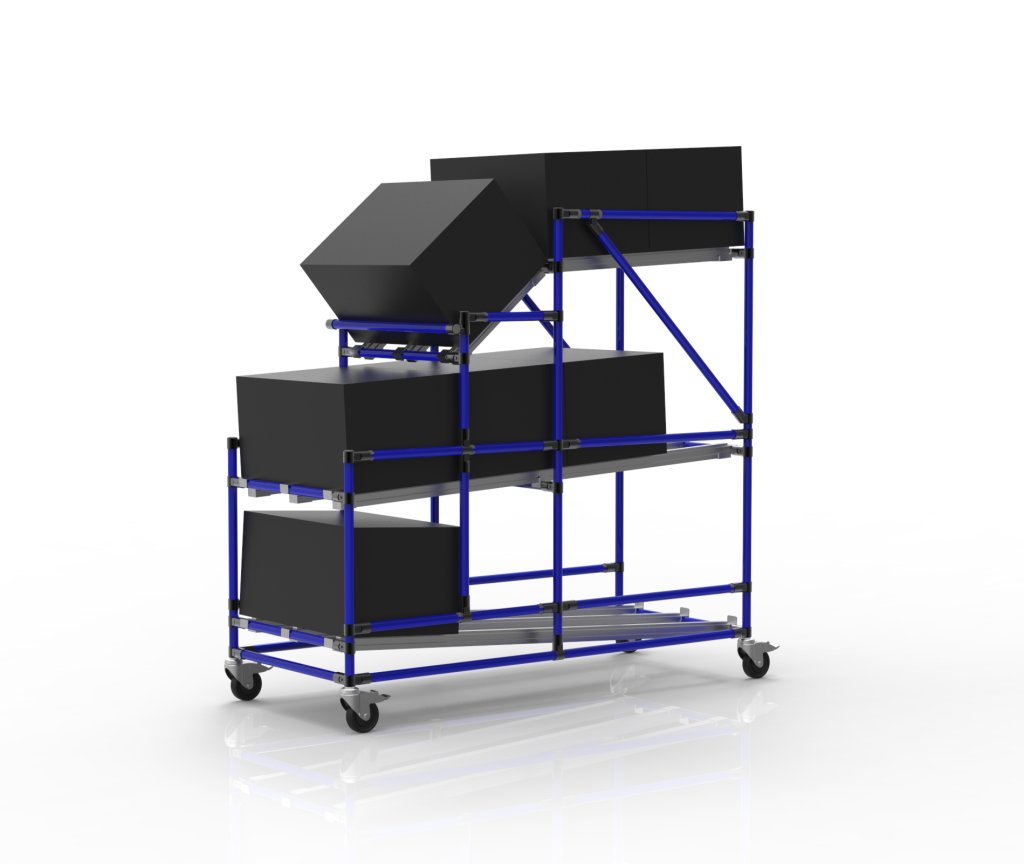

Gravity rack 22013104
Falling rack from a tubular modular system
- intended to ensure a sufficient supply of parts for the assembly line
- shelves formed by roller tracks, on which e.g. KLT 600x400x280mm (RLKLT 6280) are stored. Due to gravity, KLTs move independently in the direction of the roller tracks
- ESD construction, CP1100BK pipes (black), SV couplings (galvanized)

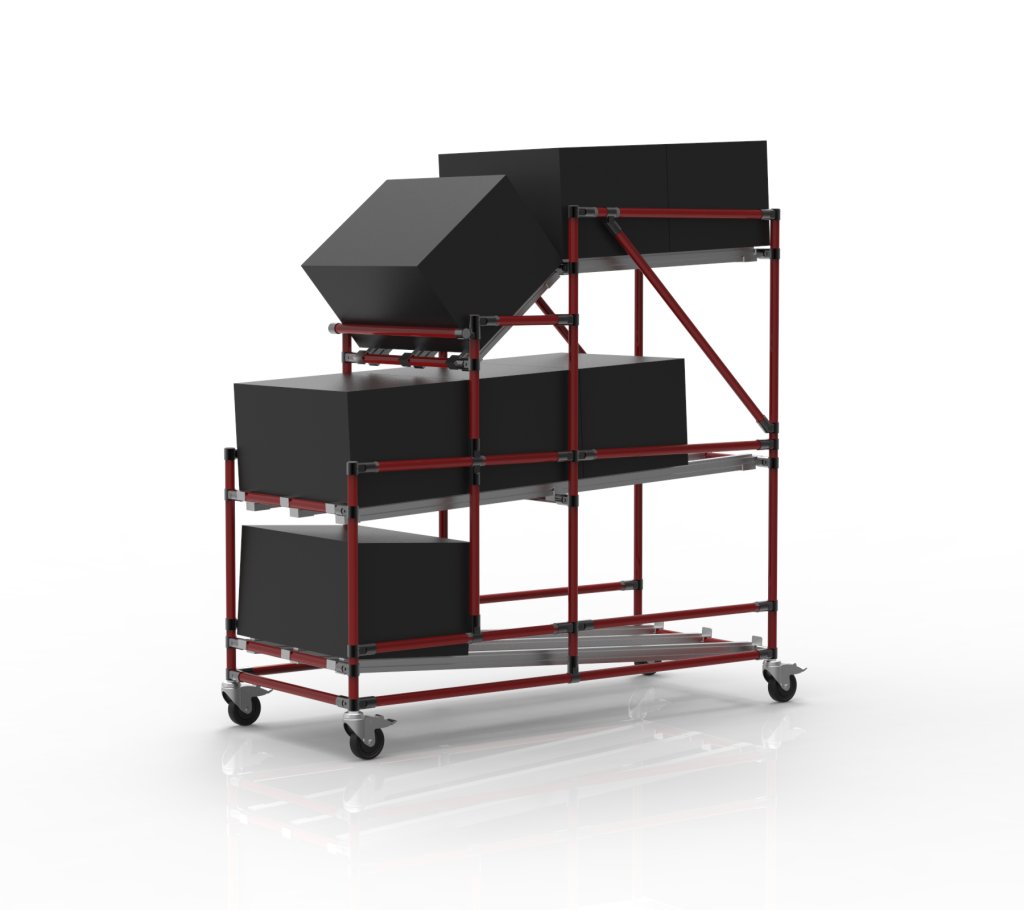

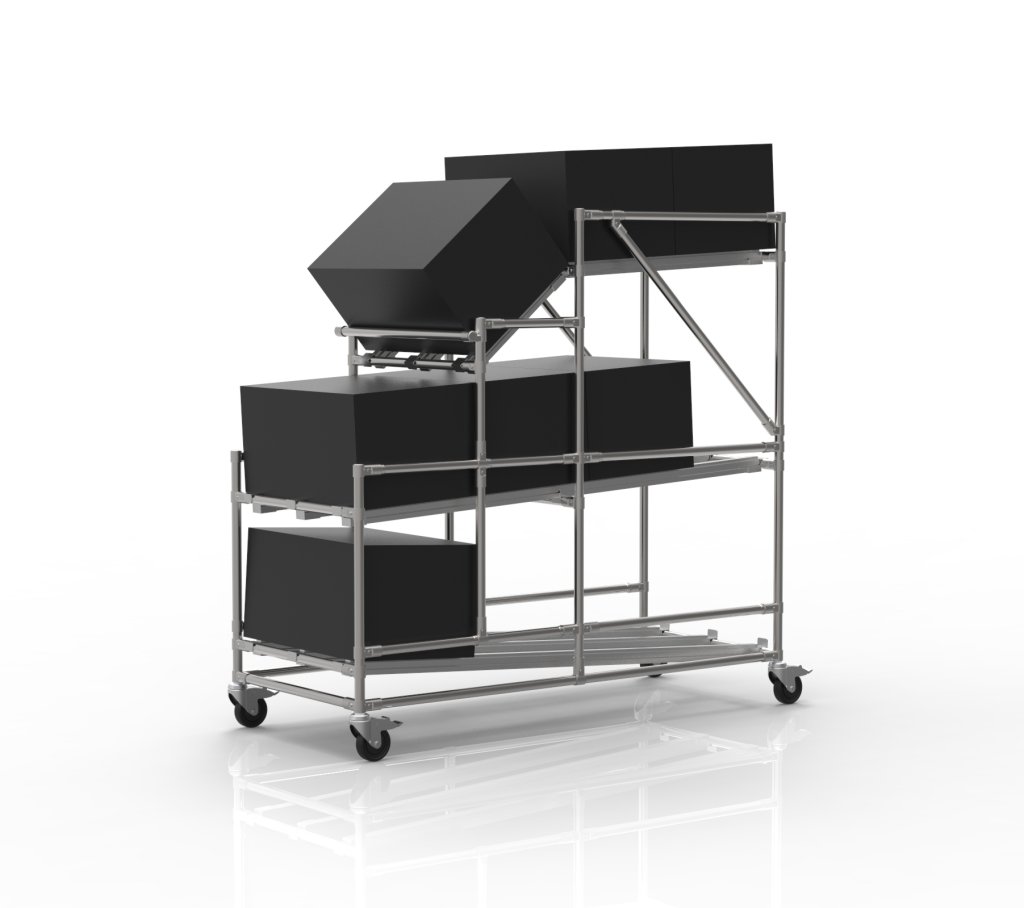

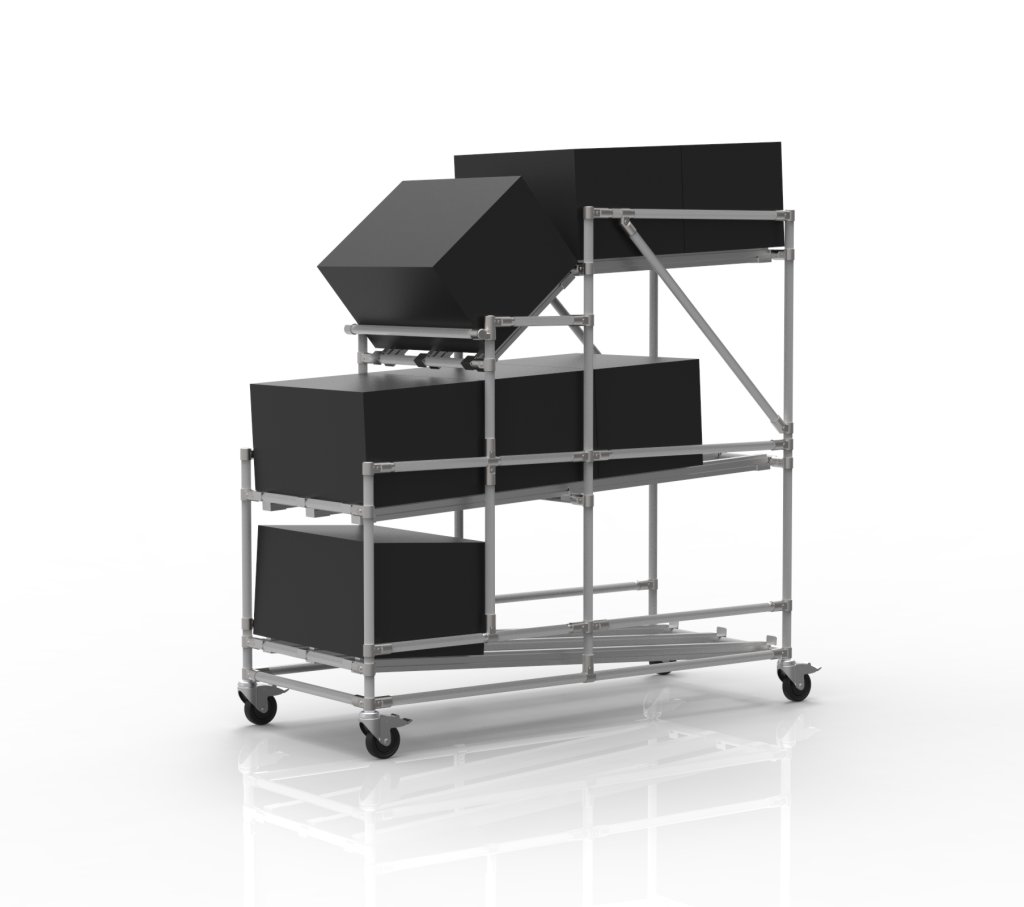

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
![]() |
![]() |
![]() |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
![]() |
![]() |
![]() |
| metal clutches are always available in three variants - black, silver and nickel | ||
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Lid made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Suitable for RL-KLT crates 600 x 400 mm.
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 200 x d. 300 mm. Smooth bottom, crate capacity 20 kg, max. stacking capacity 400 kg.
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 170 x 200 x 300. Volume 7.6 l. Full handle.
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 420 x 400 x 600. Volume 88 l. Suitable for clear storage of small parts thanks to the storage window.
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 220 x 400 x 300. Volume 20 l. Choice of full or open handle.
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions H 219 x W 600 x D 800 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 200 x d. 300 mm. Smooth bottom, crate capacity 20 kg, max. stacking capacity 400 kg.
The drop conveyor from the tubular modular system is intended for storing KLT crates and boxes with dimensions of 600 x 400 x 280 mm. This innovative conveyor is designed to facilitate material handling and improve work efficiency. The shelves are formed by roller tracks, thanks to which it is possible to easily and smoothly move the KLT crates along the entire length of the conveyor in the direction of the fall of the roller tracks. Total load capacity 100 kg. Dimensions 1202 x 943 x 1253 mm.
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1876 x 1366 x 861 mm.
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1829 x 1066 x 667 mm.
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1782 x 1066 x 465 mm.
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1807 x 1566 x 569 mm.
A drop rack made of an aluminum profile with dimensions of 40 x 40 mm. Construction dimensions 2200 x 1860 x 510 mm. Total load capacity 150 kg (with uniform load). Custom application, all dimensions can be adjusted according to customer needs.
Gravity conveyor from a tubular modular system for moving materials. The system uses roller tracks to move the material. Thanks to the inclined lower roller track, the empty plastic pallets are automatically returned to the beginning of the conveyor. Load capacity per floor 200 kg, total load capacity 400 kg. Dimensions 840 x 3003 x 503 mm.
