Gravity conveyor 22052602

Code: 22052602

Gravity conveyor from a tubular modular system for moving materials. The system uses roller tracks to move the material. Thanks to the inclined lower roller track, the empty plastic pallets are full description and parameters

At partner: 8 pcs
495.80 Eur (599.92 Eur with VAT)
Product description

Gravity conveyor 22052602

Gravity conveyor from a tubular modular system for moving materials. The system uses roller tracks to move the material. Thanks to the inclined lower roller track, the empty plastic pallets are automatically returned to the beginning of the conveyor. Load capacity per floor 200 kg, total load capacity 400 kg. Dimensions 840 x 3003 x 503 mm.

  • bottom roller track in slope - empty plastic pallets return to the beginning of the conveyor
  • side guide with aluminum bar
  • load capacity per floor 200 kg
  • total load capacity 400 kg
  • dimensions 840 x 3003 x 503 mm

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.



Color variants ESD variant Stainless steel version
1 mm thick steel pipe (LP-1100) or 2 mm (LP-1200 ) antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm ( CP-1200BK) 0.7 mm thick stainless steel pipe (ST-1070) or 1.1 mm (ST-1110)
Black variant Nickel variant Silver variant
metal clutches are always available in three variants - black, silver and nickel
Technical parameters
Total height
840 mm
Width
3003 mm
Depth
503 mm
Carrying capacity
400 kg
Assembled product
Yes
Warranty (years)
2
In stock
Code Variant name Prague warehouse CR warehouse

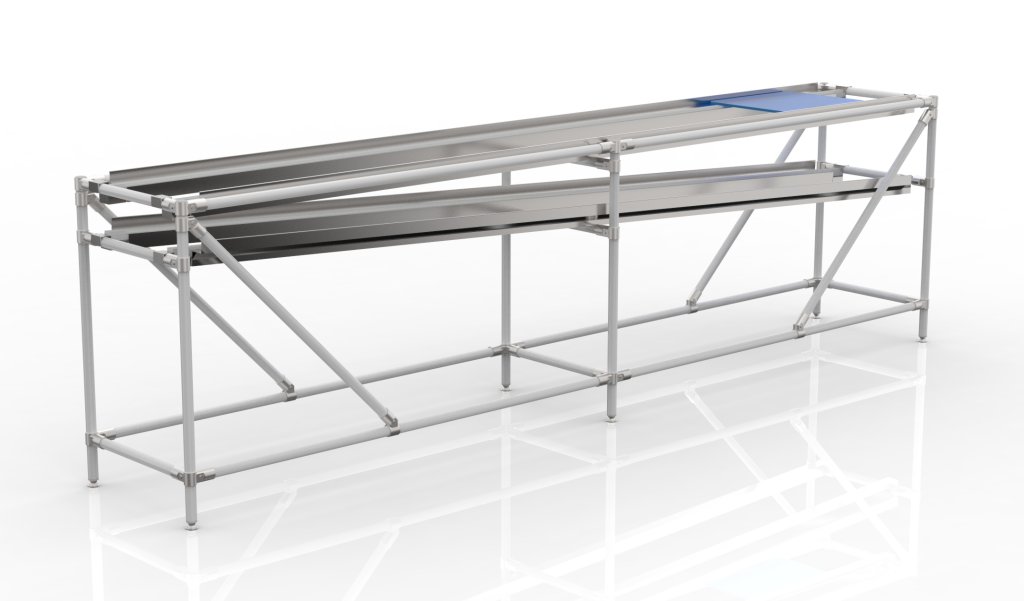

Code: 22052602_1 Variant name: gray + silver clutches Prague warehouse: CR warehouse: 2 ks

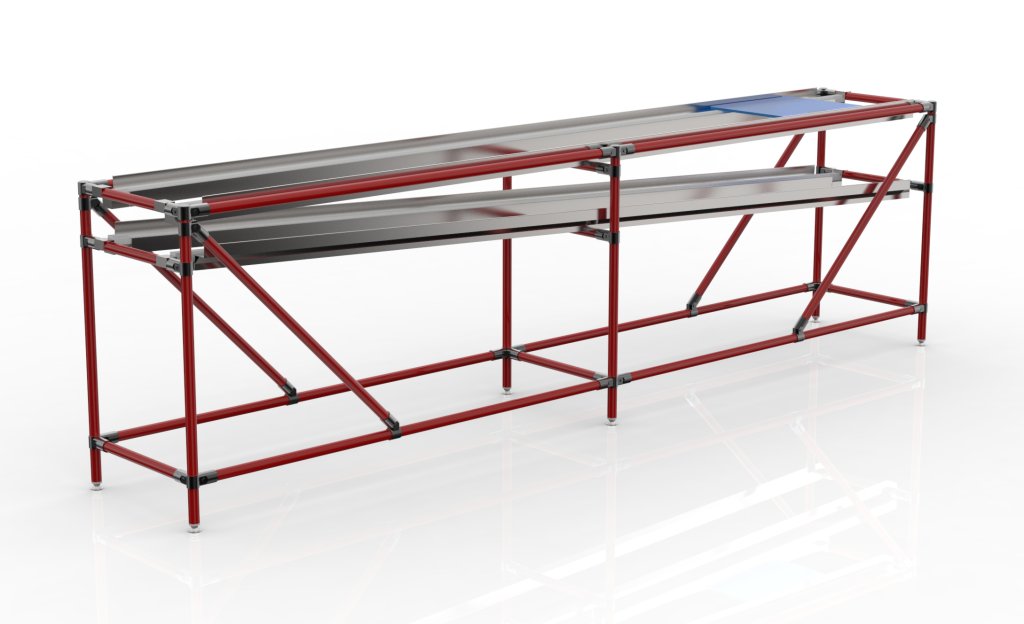

Code: 22052602_2 Variant name: red + black clutches Prague warehouse: CR warehouse: 1 ks

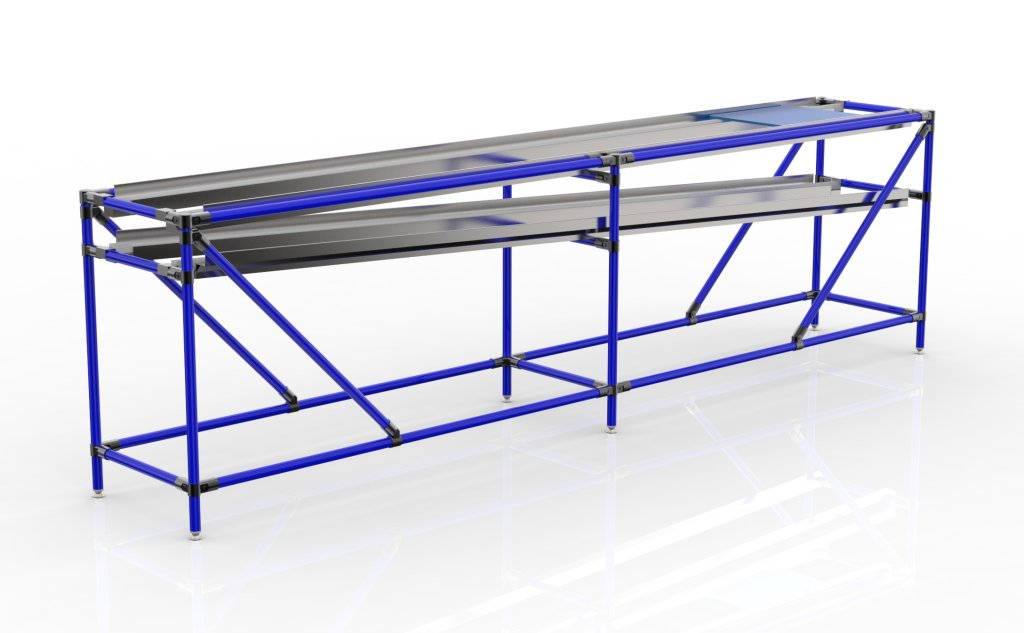

Code: 22052602_3 Variant name: blue + black clutches Prague warehouse: CR warehouse: 3 ks

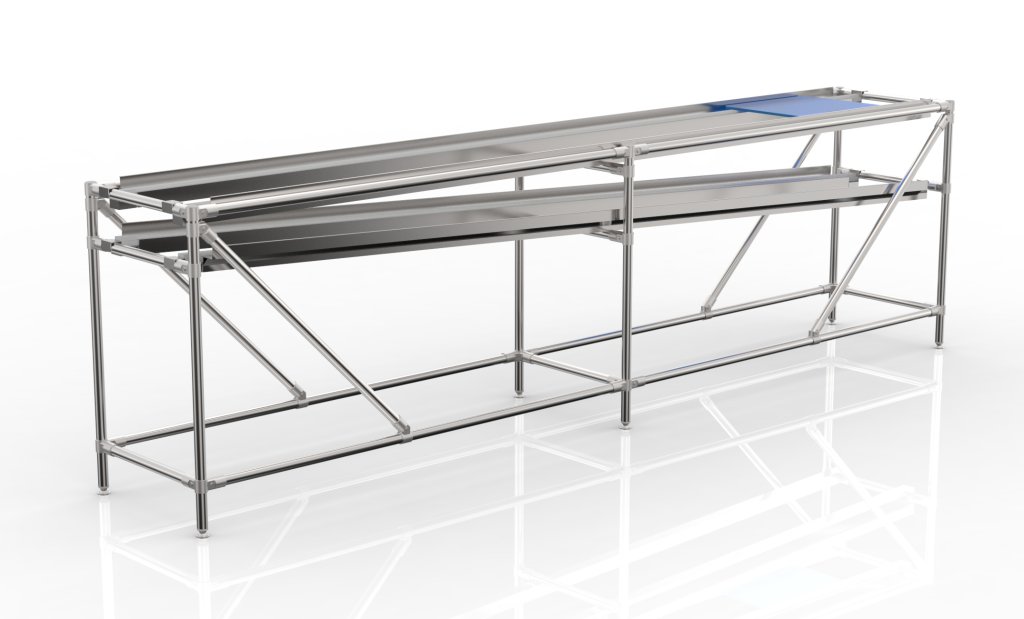

Code: 22052602_4 Variant name: stainless steel + silver connectors Prague warehouse: CR warehouse: 2 ks
