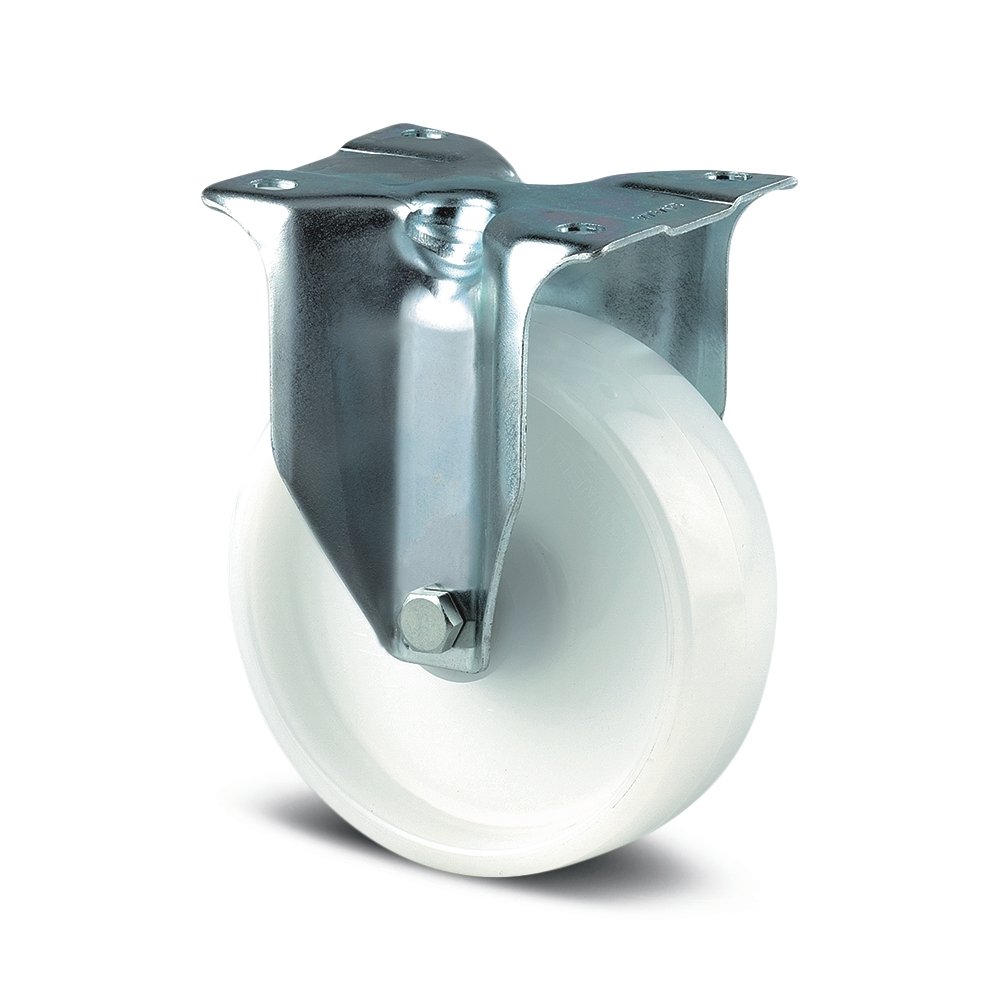

Fixed white industrial wheel with a diameter of 160 mm with a mounting plate
Code: 3478UOR160P63
Rigid industrial wheel ø 160 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel full description and parameters
Product description
Fixed industrial wheel, white, ø 160 mm, with mounting plate 3478UOR160P63
Rigid industrial wheel ø 160 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel center made of polyamide, needle bearing.
- Polyamide wheel center
- temperature resistance -40 °C to 80 °C
- plate size 137 x 115 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 350 kg
- static load capacity 700 kg
- wheel diameter 160 mm
- tread width 40 mm
- tread hardness Shore D75
- meets the EN 12532 standard
- building height 200 mm
Technical parameters
Carrying capacity
350 kg
Wheel diameter
160 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
