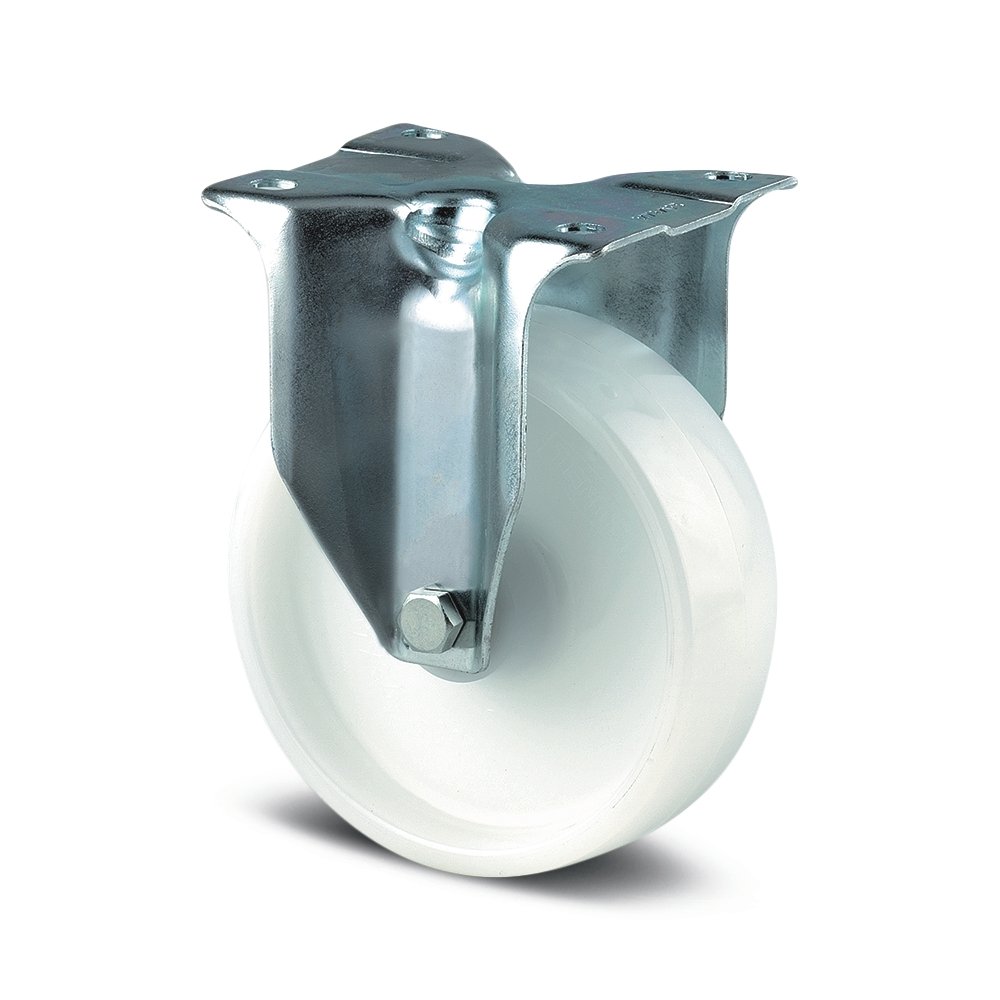

Fixed industrial wheel white with mounting plate (4 models)
Code: 3478UOR100P62
Rigid industrial wheel ø 100 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel full description and parameters
Product description
Fixed industrial wheel white ø 100 mm with mounting plate 3478UOR100P62
Rigid industrial wheel ø 100 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel center made of polyamide, needle bearing.
- Polyamide wheel center
- temperature resistance -40 °C to 80 °C
- plate size 103 x 85 mm
- hole spacing 80/77 x 60 mm
- hole diameter 9 mm
- dynamic load capacity 200 kg
- static load capacity 400 kg
- wheel diameter 100 mm
- tread width 36 mm
- tread hardness Shore D75
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
200 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
