Electrically conductive wheel with total brake and mounting plate (2 models)
Code: 2477DYK075P40
Electrically conductive swivel wheel of ø 75 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with full description and parameters
Product description

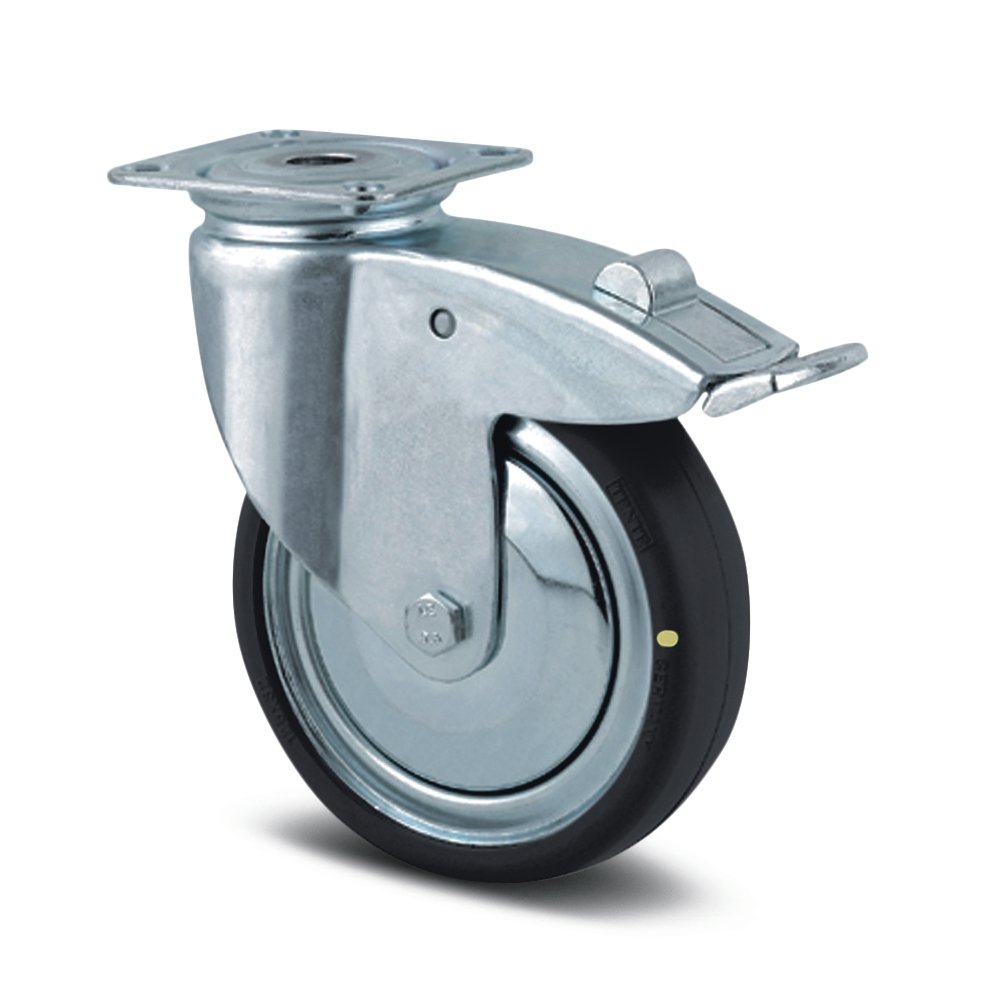

Electrically conductive wheel ø 75 mm with total brake and mounting plate 2477DYK075P40
Electrically conductive swivel wheel of ø 75 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with plate. Wheel center made of steel extrusion, black rubber non-blackening rim tread, lint-free cover, taper bearing.
- wheel center made of pressed steel
- tread from black rubber non-blackening hoop
- tapered bearing
- temperature resistance -20 °C to 85 °C
- plate size 60 x 60 mm
- hole spacing 48/38 x 48/38 mm
- hole diameter 6.3 mm
- dynamic load capacity 55 kg
- static load capacity 110 kg
- wheel diameter 75 mm
- tread width 25 mm
- tread hardness Shore A80
- meets the EN 12530 standard
- building height 100 mm
Technical parameters
Carrying capacity
55 kg
Wheel diameter
75 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
