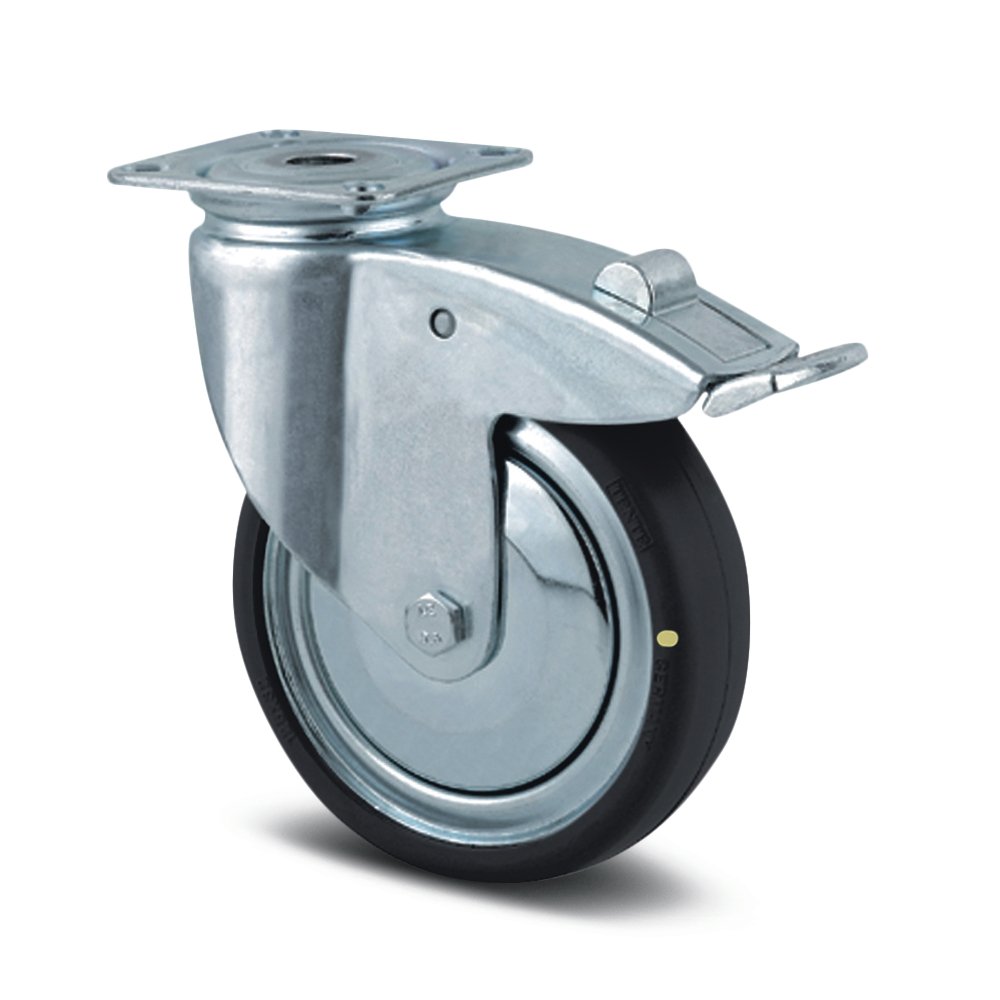

Electrically conductive wheel of ø 100 mm with total brake and mounting plate
Code: 2477DYK100P50
Electrically conductive swivel wheel of ø 100 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with full description and parameters
Product description
Electrically conductive wheel ø 100 mm with total brake and mounting plate 2477DYK100P50
Electrically conductive swivel wheel of ø 100 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with plate. Wheel center made of steel extrusion, black rubber non-blackening rim tread, lint-free cover, taper bearing.
- wheel center made of pressed steel
- tread from black rubber non-blackening hoop
- tapered bearing
- temperature resistance -20 °C to 85 °C
- plate size 77 x 67 mm
- hole spacing 61.5/56 x 51.5/46.5 mm
- hole diameter 8.5 mm
- dynamic load capacity 80 kg
- static load capacity 160 kg
- wheel diameter 100 mm
- tread width 32 mm
- tread hardness Shore A80
- meets the EN 12530 standard
- building height 135 mm
Technical parameters
Carrying capacity
80 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
