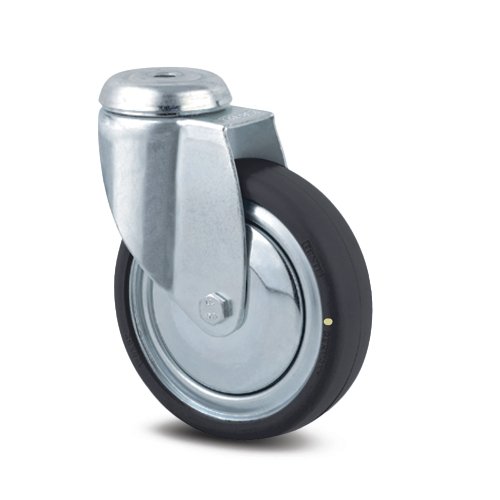

Electrically conductive wheel with a diameter of 100 mm with a hole for a pin
Code: 2470DYK100P30-11
Electrically conductive swivel wheel with ø 100 mm, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, hole for the pin. Wheel full description and parameters
Product description
Electrically conductive wheel ø 100 mm with pin hole 2470DYK100P30-11
Electrically conductive swivel wheel with ø 100 mm, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, hole for the pin. Wheel center made of steel extrusion, black rubber non-blackening rim tread, lint-free cover, taper bearing. It can be mounted with standard screws of any length.
- wheel center made of pressed steel
- tread from black rubber non-blackening hoop
- tapered bearing
- temperature resistance -20 °C to 85 °C
- diameter of central hole 11 mm
- turning radius 88 mm
- dynamic load capacity 80 kg
- static load capacity 160 kg
- wheel diameter 100 mm
- tread width 32 mm
- tread hardness Shore A80
- meets the EN 12530 standard
- building height 135 mm
Technical parameters
Carrying capacity
80 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
2470DYK100P30-11
100 mm
80 kg
No
24.63 Eur
