Transport NC trolley NCV3636 with equipment (5 models)
Code: NCV3636-1
Transport NC trolley - The basic structure of the trolley is made of high-quality reinforced steel sheet welds, the side walls are perforated for hanging carriers or tool frames. The trolley is full description and parameters

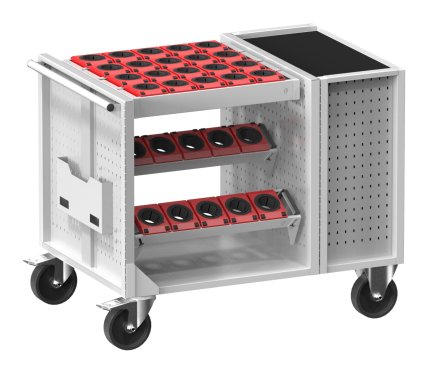

NC transport trolley NCV3636-1
Transport NC trolley - The basic structure of the trolley is made of high-quality reinforced steel sheet welds, the side walls are perforated for hanging carriers or tool frames. The trolley is equipped with two swivel wheels with a brake and two fixed wheels with a diameter of 160 mm. Some models also include plastic holders - see Product variants or the table in the detailed product description.
- for 36D carriers and 36 x 36D tool frames
- width 1110 x depth 734 x height 880 mm
- the position of the frames and carriers can be set horizontally or at an angle of 15 or 30°
- 4 x wheels with a diameter of 160 mm, of which 2 x swivel with brake
- hole identification system and description label
- pocket for A4 documents
- load capacity 400 kg
| Equipment | Number of pieces | Order number | W x D x H mm | Carrying capacity |
Weight |
| no tool holders |
- | NCV3636-1 | 1110 x 734 x 880 |
400 kg |
61 kg |
| ISO 40 |
48 | NCV3636-2 | 1110 x 734 x 880 | 400 kg |
66 kg |
| ISO 50 | 30 |
NCV3636-3 | 1110 x 734 x 880 | 400 kg | 66 kg |
| HSK 63 | 48 | NCV3636-4 | 1110 x 734 x 880 | 400 kg | 66 kg |
| VDI 40 | 30 |
NCV3636-5 | 1110 x 734 x 880 | 400 kg | 66 kg |
| Common equipment: 1x tool frame, 2x tool carrier |
|||||
NOTE that as of May 15, 2025, there have been design changes to the Polak brand's products. If you need the ordered product to be compatible with products purchased before this date, please include this information in the notes of your order.
