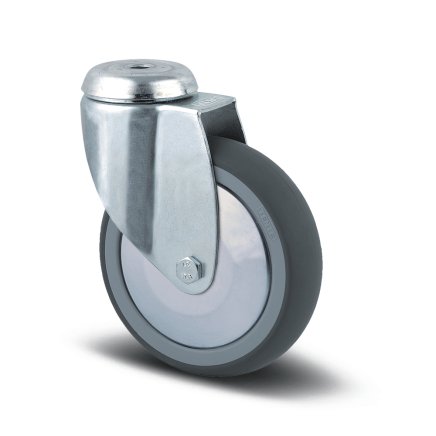

Tool wheel gray ø 125 mm, hole for pin, rotatable with cover
Code: 2470PJH125P30-11
Rotating instrument wheel with ø 125 mm, fork made of pressed steel, double ball bearing in the rotating head, hole for pin. The center of the wheel is made of polypropylene, the tread is made of gray full description and parameters
Product description
Instrument wheel gray ø 125 mm 2470PJH100P30-11
Rotating instrument wheel with ø 125 mm, fork made of pressed steel, double ball bearing in the rotating head, hole for pin. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing. It can be mounted with standard screws of any length.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- diameter of central hole 11 mm
- turning radius 103.5 mm
- dynamic load capacity 100 kg
- static load capacity 200 kg
- wheel diameter 125 mm
- tread width 32 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 160 mm
Technical parameters
Carrying capacity
100 kg
Wheel diameter
125 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
