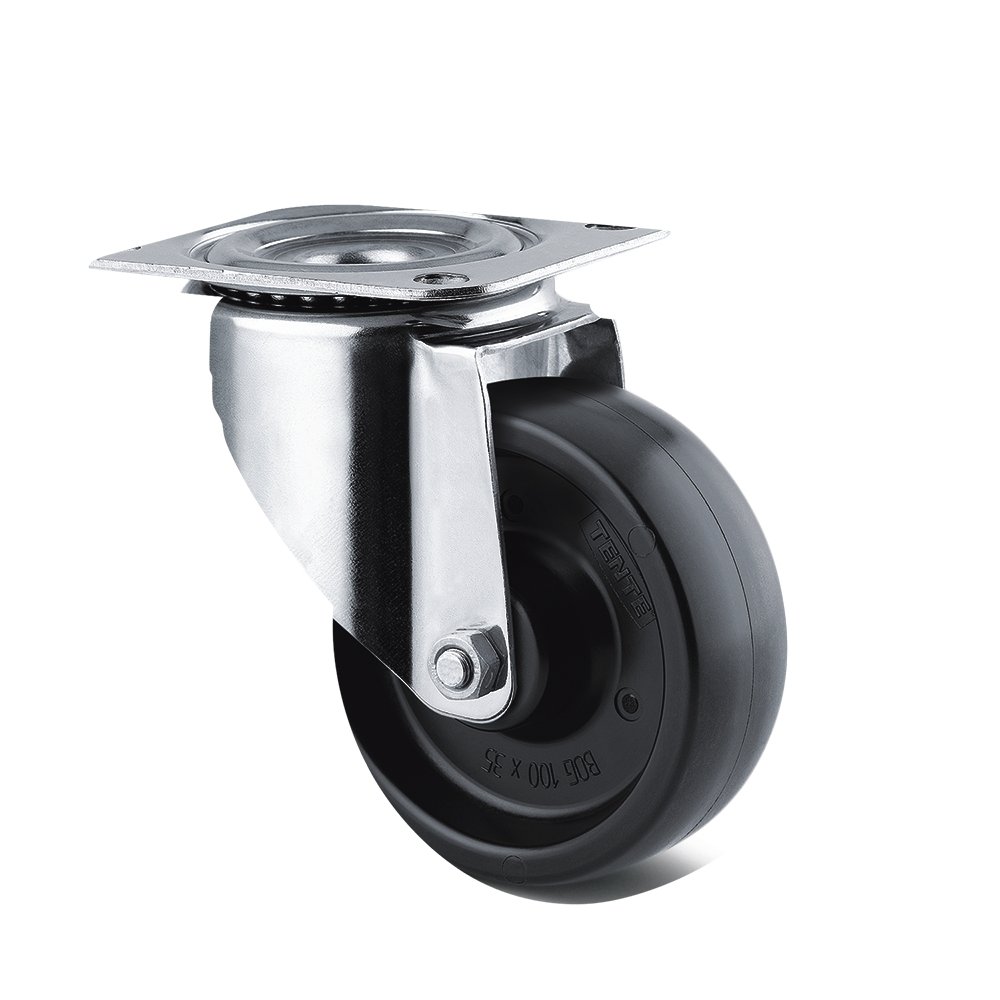

Thermoplastic wheel, black, ø 100 mm, with mounting plate
Code: 8470BOG100P62
Thermoplastic swivel wheel with ø 100 mm, fork made of stainless steel, double ball track in the swivel head of the wheel, wheel with screw and nut, mounting with plate. Wheel made of heat-resistant full description and parameters
Product description
Thermoplastic wheel, black, ø 100 mm with mounting plate 8470BOG100P62
Thermoplastic swivel wheel with ø 100 mm, fork made of stainless steel, double ball track in the swivel head of the wheel, wheel with screw and nut, mounting with plate. Wheel made of heat-resistant synthetic material, self-lubricating hub.
- wheel made of heat-resistant synthetic material
- self-lubricating hub
- temperature resistance -40 °C to 280 °C
- plate size 105 x 85 mm
- hole spacing 80/77 x 60 mm
- hole diameter 9 mm
- dynamic load capacity 125 kg
- static load capacity 250 kg
- wheel diameter 100 mm
- tread width 35 mm
- tread hardness Shore D85
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
125 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
