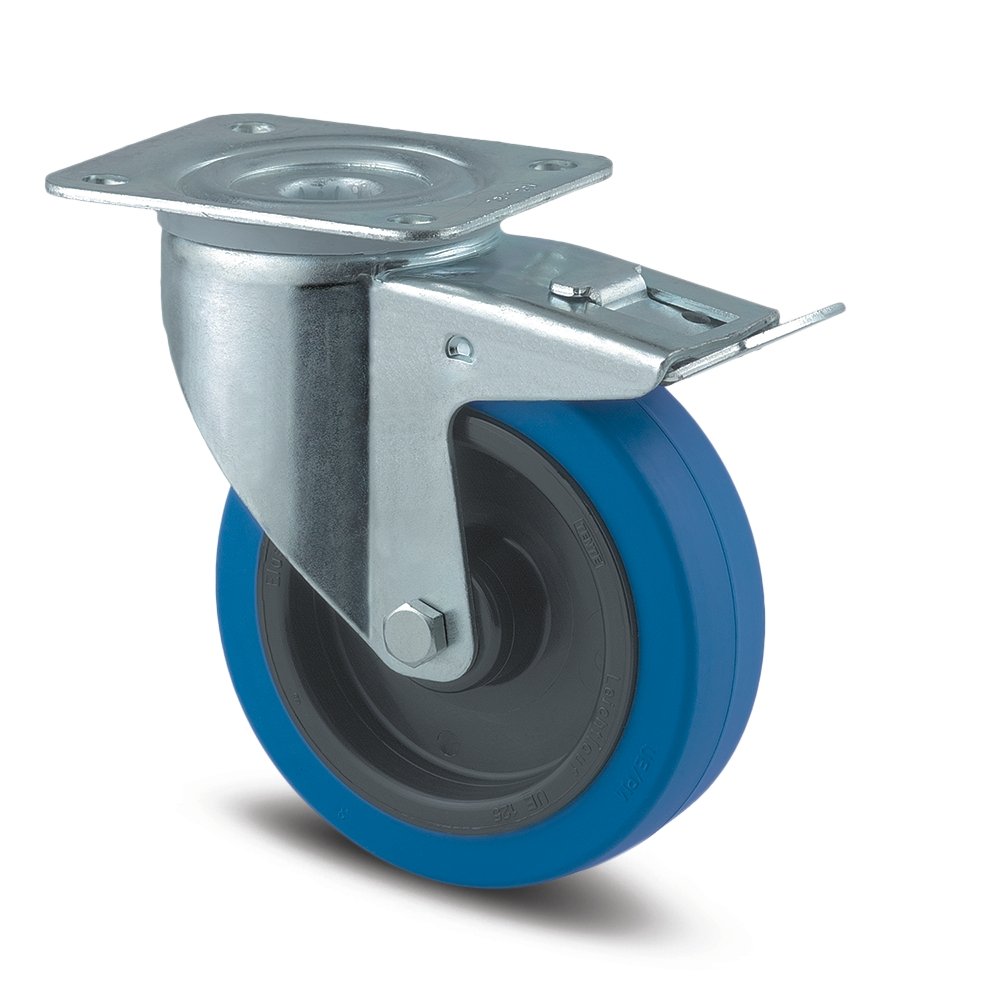

Swivel industrial wheel blue with total brake and mounting plate (2 models)
Code: 3477UFR100P62
Rotating industrial wheel ø 100 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel with screw and nut with anti-fiber cover, mounting with plate. full description and parameters
Product description
Swivel industrial wheel, blue, ø 100 mm with total brake and mounting plate 3477UFR100P62
Rotating industrial wheel ø 100 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel with screw and nut with anti-fiber cover, mounting with plate. Wheel center made of polyamide, tread made of elastic rubber, needle bearing.
- Polyamide wheel center
- temperature resistance -20 °C to 80 °C
- plate size 105 x 85 mm
- hole spacing 80/77 x 60 mm
- hole diameter 9 mm
- dynamic load capacity 160 kg
- static load capacity 320 kg
- wheel diameter 100 mm
- tread width 34 mm
- tread hardness Shore A64
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
160 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
