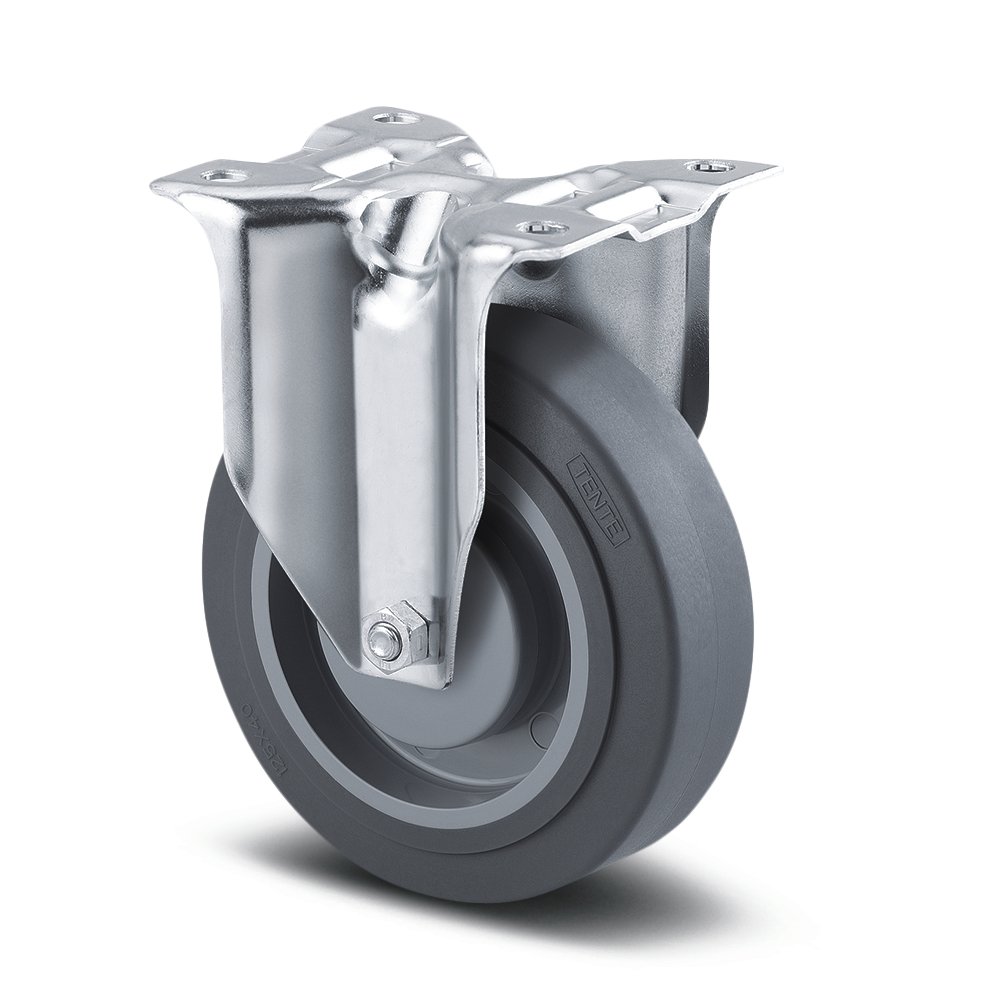

Solid gray supratech instrument wheel with ø 125 mm and plate attachment
Code: 3478PJP125P62
Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, fixing with a full description and parameters
Product description
Gray Supratech fixed instrument wheel with ø 125 mm and plate mounting 3478PJP125P62
Fixed instrument wheel with a diameter of 125 mm, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, fixing with a plate. Wheel center made of polypropylene, tread made of gray TENTEprene (thermoplastic rubber), precision ball bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double-row ball bearing with fiber wrap protection
- temperature resistance -20 °C to 60 °C
- plate size 103 x 85 mm
- hole spacing 80/77 x 60 mm
- hole diameter 9 mm
- dynamic load capacity 180 kg
- static load capacity 360 kg
- wheel diameter 125 mm
- tread width 40 mm
- tread hardness Shore A65
- meets the EN 12532 standard
- building height 155 mm
Technical parameters
Carrying capacity
180 kg
Wheel diameter
125 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
