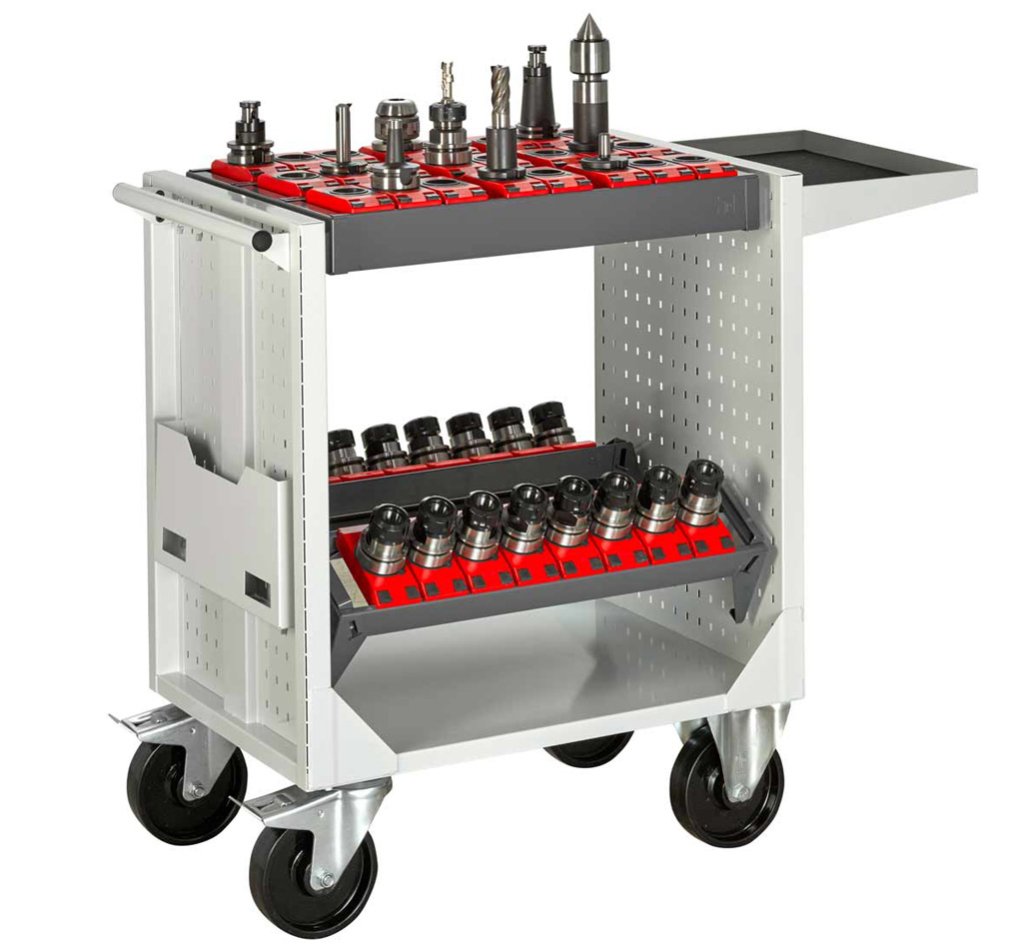

NC transport trolley NCV3627 with equipment
Code: NCV3627-3
Transport NC trolley - The basic structure of the trolley is made of high-quality reinforced steel sheet welds, the side walls are perforated for hanging carriers or tool frames. The trolley is full description and parameters
NC transport trolley NCV3627-3
Transport NC trolley - The basic structure of the trolley is made of high-quality reinforced steel sheet welds, the side walls are perforated for hanging carriers or tool frames. The trolley is equipped with two swivel wheels with a brake and two fixed wheels with a diameter of 160 mm. The trolley includes a folding storage shelf 36 x 27D with a rubber pad. Some models also include plastic holders - see Product variants or the table in the detailed product description.
- for 36D carriers and 36 x 27D tool frames
- width 1092 x depth 495 x height 880 mm
- the position of the frames and carriers can be set horizontally or at an angle of 15 or 30°
- 4 x wheels with a diameter of 160 mm, of which 2 x swivel with brake
- hole identification system and description label
- pocket for A4 documents
- load capacity 300 kg
| Equipment | Number of pieces | Order number | W x D x H mm | Carrying capacity |
Weight |
| no tool holders |
- | NCV3627-1 | 1092 x 495 x 880 |
300 kg |
39 kg |
| ISO 40 |
40 | NCV3627-2 | 1092 x 495 x 880 | 300 kg |
43 kg |
| ISO 50 | 25 | NCV3627-3 | 1092 x 495 x 880 | 300 kg | 43 kg |
| HSK 63 | 40 | NCV3627-4 | 1092 x 495 x 880 | 300 kg | 43 kg |
| VDI 40 | 25 | NCV3627-5 | 1092 x 495 x 880 | 300 kg | 43 kg |
| Common equipment: 1x tool frame, 2x tool carrier |
|||||
UPOZORŇUJEME že od 15.5.2025 došlo ke konstrukčním změnám u produktů značky Polak. Pokud potřebujete, aby objednaný produkt byl kompatibilní s výrobky zakoupenými před tímto datem, uveďte prosím tuto informaci v poznámce vaší objednávky.
