MULTISTRONG M cantilever rack - single-sided base 75107
Code: 75107
Medium load rack for standing and lying long material, height 2500, width 1300, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 full description and parameters
Product description
MULTISTRONG M cantilever rack- single-sided base 75107
Medium load rack for standing and lying long material, height 2500, width 1300, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue.
- for storage of board and board material
- hot cylindrical profiles IPE 140 - perforated on both sides for possible future conversion from single-sided to double-sided
- height-adjustable arms in 50 mm increments
- protection against falling out of the arms secures the arms against unhooking during storage and unloading of goods
- perfect security worked out to the last detail
- the specified depth is the depth of the arm, the actual depth of the rack is approx. 230 mm greater

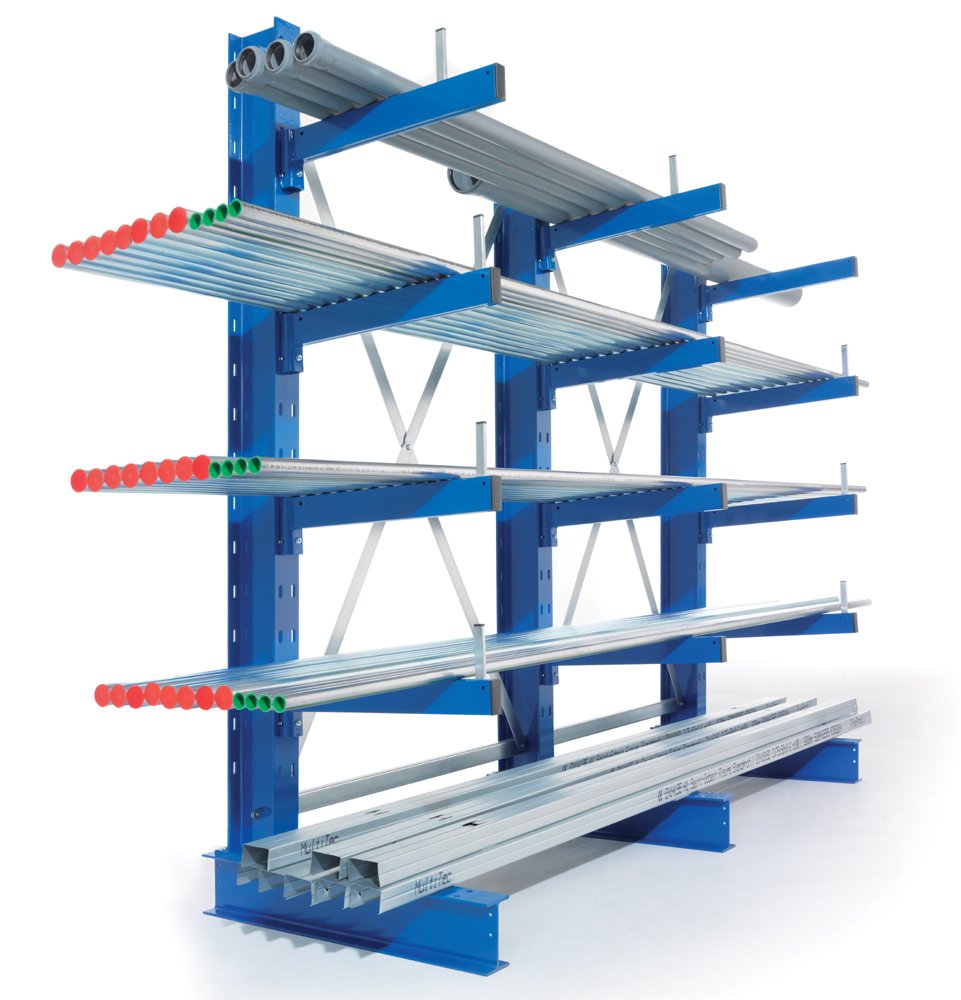

The picture shows the base rack + extension rack.
Technical parameters
Total height
2500 mm
Width
1300 mm
Depth
800 mm
The bearing capacity of the web is one-sided
1500 kg
Carrying capacity of the arm
250 kg
Number of arms
4
Number of webs
2
Warranty (years)
5
