Catalog

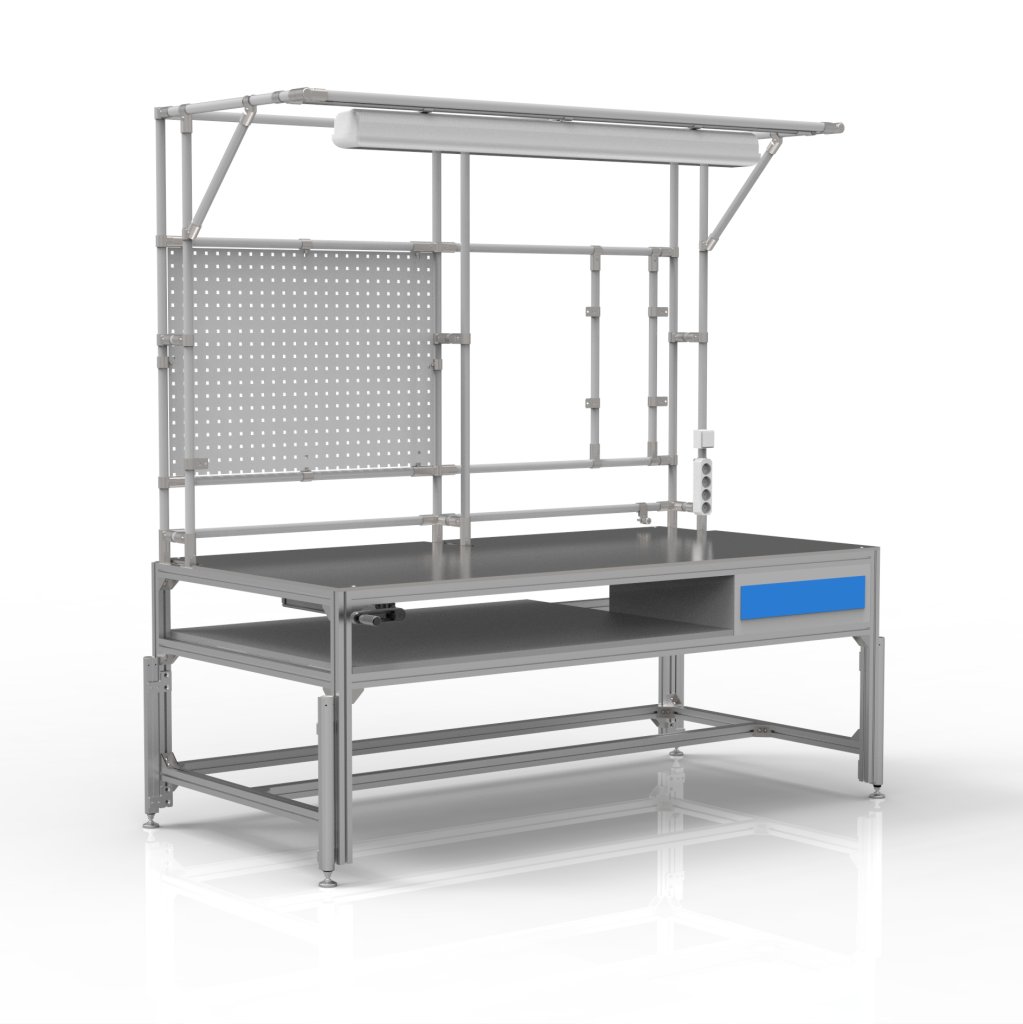

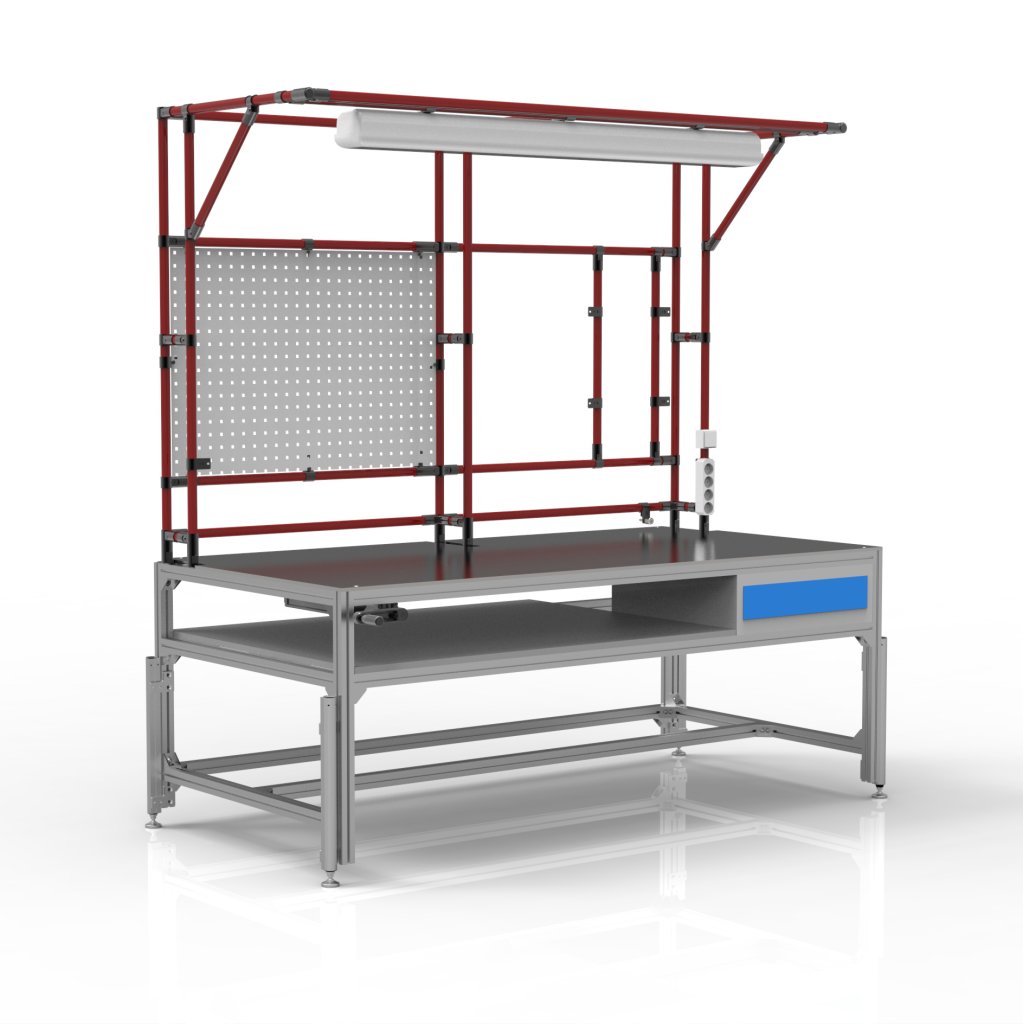

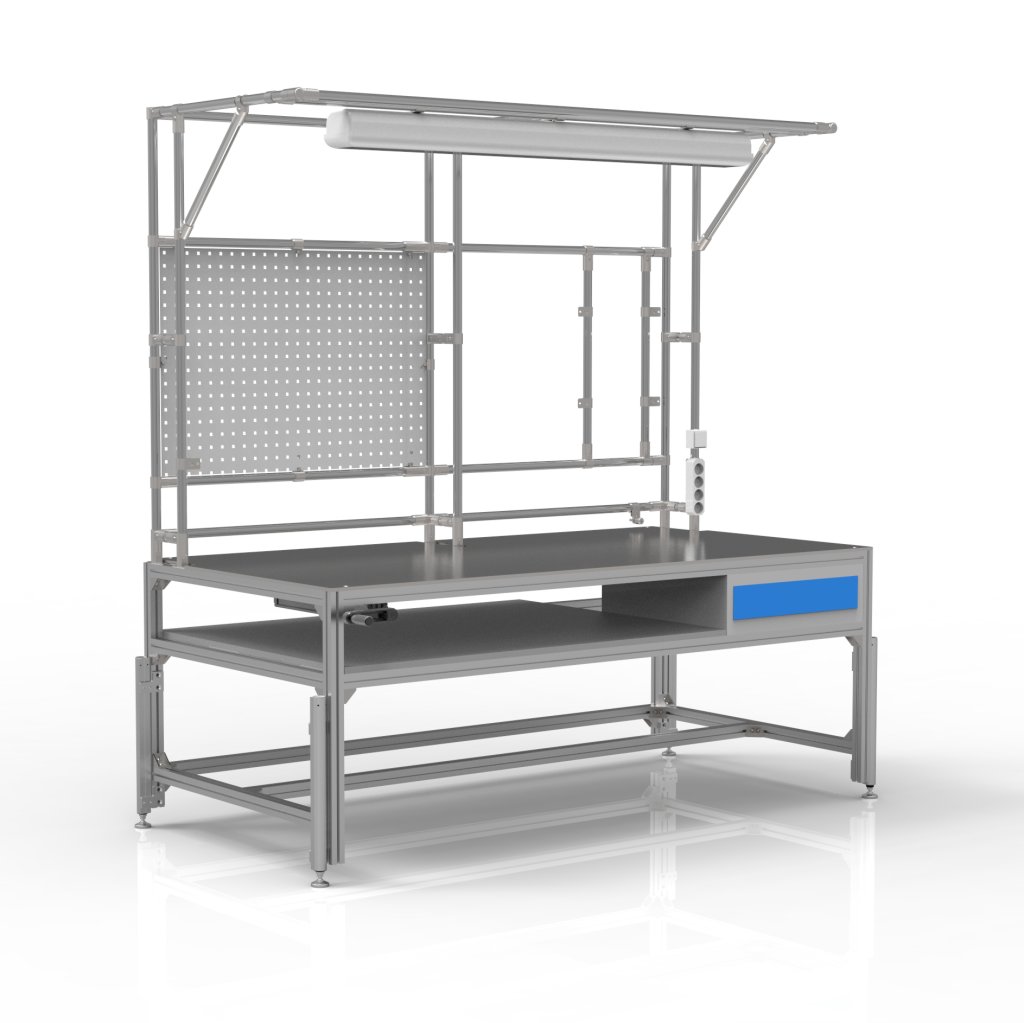

Mechanically height-adjustable welding table

Code: 23080480

A height-adjustable welding workbench made of aluminum profiles with a tube-system extension is a durable and flexible solution suitable even for demanding operations. full description and parameters

Made to order, delivery time 2 - 8 weeks.

3 587.76 Eur (4 341.19 Eur with VAT)
Product description

Welding table made of aluminum profiles

A height-adjustable welding workbench made of aluminum profiles with a tube-system extension is a durable and flexible solution suitable even for demanding operations.

  • Aluminum profiles: KA-4040
  • Aluminum Couplings KBA-40
  • Steel plate, thickness 10 mm
  • Worktop height adjustment: 800–1100 mm
  • Hydraulic lifting system with hand crank control
  • Drawer unit with one drawer
  • Shelf laminated board DTDL 112, thickness 18 mm
  • Perforated panel, gray RAL 7035
  • LED fluorescent lamp, length 1500 mm, 60 W
  • Electric switch, power outlet, and quick-connect – air



Custom application, dimensions can be adjusted according to customer needs.

Technical parameters
Table Height
800 - 1100 mm
Total height
2100 - 2400 mm
Width
2000 mm
Depth
1000 mm
Carrying capacity
200 kg
Equipment
perforated panel
Warranty (years)
2
