Instrument wheel brown with total brake and mounting plate (3 models)
Code: 3642ITP125P63 Flat
Instrument wheel ø 125 mm with total brake, head on the top of the wheel, fork made of reinforced sheet metal, blue zinc chromate, precision ball bearing in the rotating head of the wheel, sealed, full description and parameters
Product description

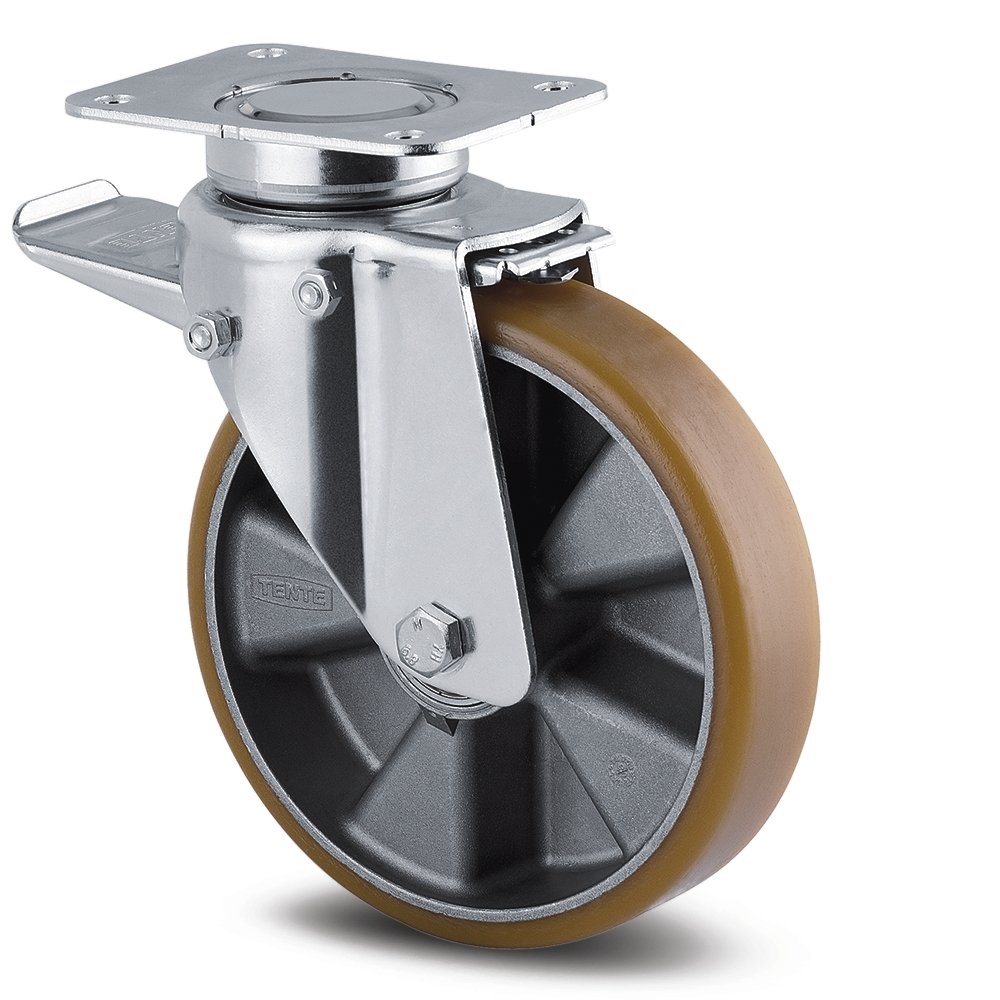

Instrument wheel brown ø 125 mm with total brake and mounting plate 3642ITP125P63 Flat
Instrument wheel ø 125 mm with total brake, head on the top of the wheel, fork made of reinforced sheet metal, blue zinc chromate, precision ball bearing in the rotating head of the wheel, sealed, center of the wheel with a nut, mounting with a plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 137 x 115 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 500 kg
- static load capacity 1000 kg
- wheel diameter 125 mm
- tread width 50 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 178 mm
Technical parameters
Carrying capacity
500 kg
Wheel diameter
125 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3642ITP125P63 Flat
ball
125 mm
500 kg
No
70.99 Eur
