Gray Supratech Instrument Wheel with Total Brake and Pivot Hole, Swivel (2 Models)
Code: 3477PJP100P30-13

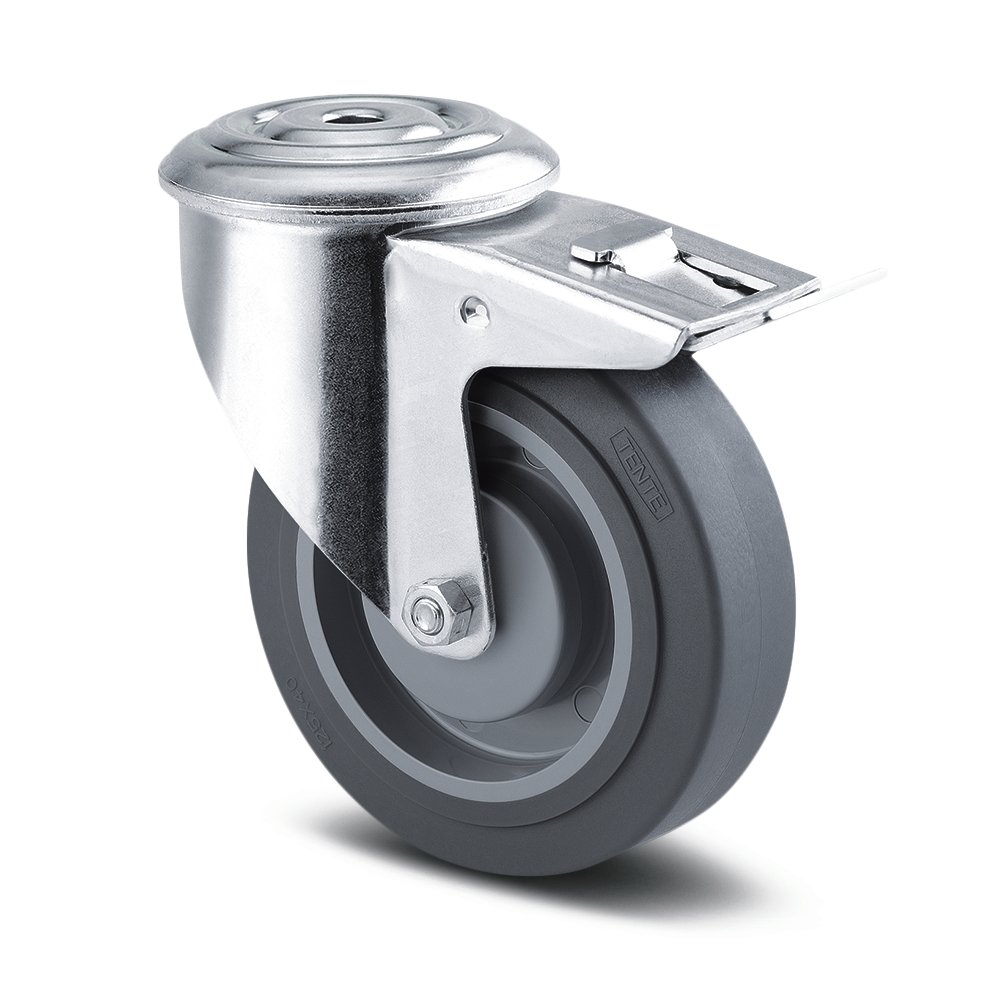

Rotating instrument wheel ø 100 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel fixed with screw and nut, anti-filament cover, hole for pin. full description and parameters
Product description
100mm gray supratech gear wheel with total brake and pin hole 3477PJP100P30-13
Rotating instrument wheel ø 100 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel fixed with screw and nut, anti-filament cover, hole for pin. Wheel center made of polypropylene, tread made of gray TENTEprene (thermoplastic rubber), precision ball bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double-row ball bearing with fiber wrap protection
- temperature resistance -20 °C to 60 °C
- diameter of center hole 13 mm
- turning radius 123 mm
- dynamic load capacity 110 kg
- static load capacity 220 kg
- wheel diameter 100 mm
- tread width 35 mm
- tread hardness Shore A65
- meets the EN 12532 standard
- building height 128 mm
Technical parameters
Carrying capacity
110 kg
Wheel diameter
100 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3477PJP100P30-13
ball
100 mm
110 kg
No
19.36 Eur
