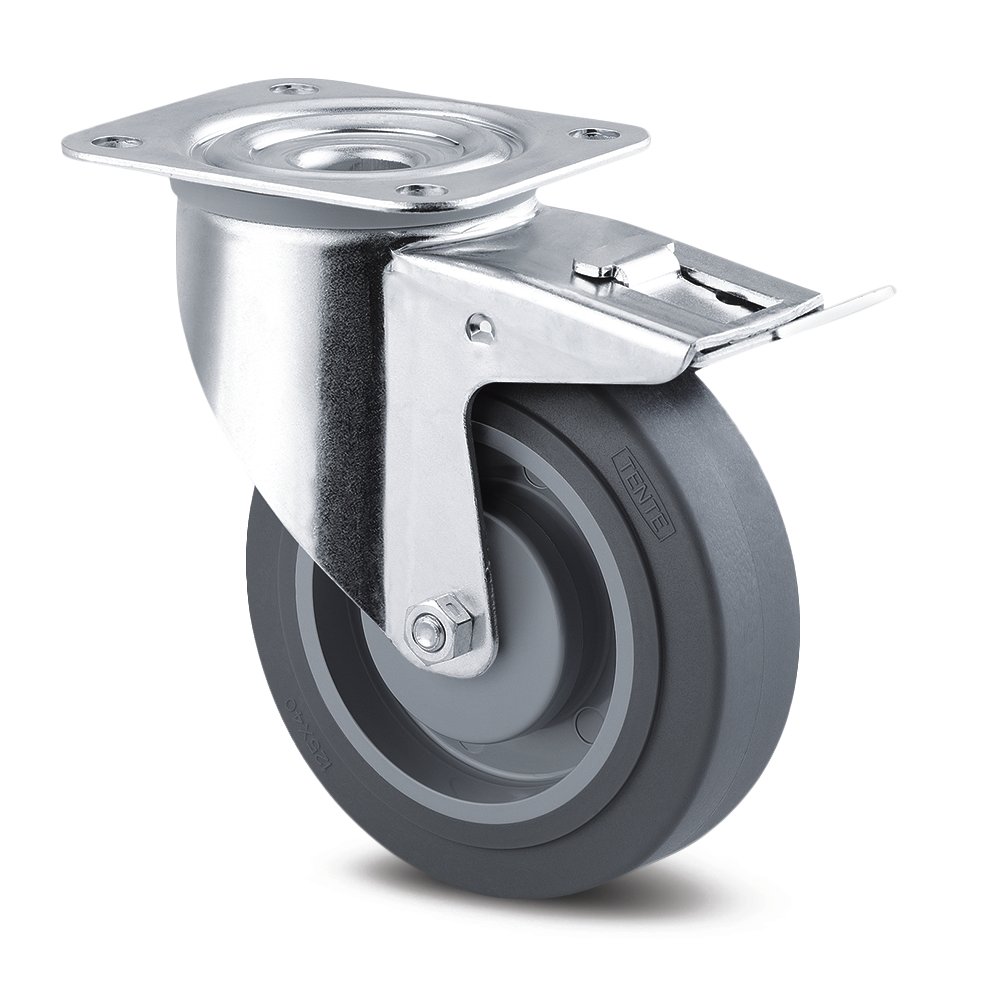

Gray Supratech instrument wheel, ø 200 mm, with total brake and mounting plate, rotatable
Code: 3477PJP200P63
Rotating instrument wheel of ø 200 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, fixing full description and parameters
Product description
Gray supratech instrument wheel ø 200 mm with total brake and mounting plate 3470PJP200P62
Rotating instrument wheel of ø 200 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel fixed with a screw and nut, anti-filament cover, fixing with a plate. Wheel center made of polypropylene, tread made of gray TENTEprene (thermoplastic rubber), precision ball bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double-row ball bearing with fiber wrap protection
- temperature resistance -20 °C to 60 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- turning radius 155 mm
- dynamic load capacity 250 kg
- static load capacity 500 kg
- wheel diameter 200 mm
- tread width 46 mm
- tread hardness Shore A65
- meets the EN 12532 standard
- building height 240 mm
Technical parameters
Carrying capacity
250 kg
Wheel diameter
200 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3477PJP200P63
ball
200 mm
250 kg
No
51.28 Eur
