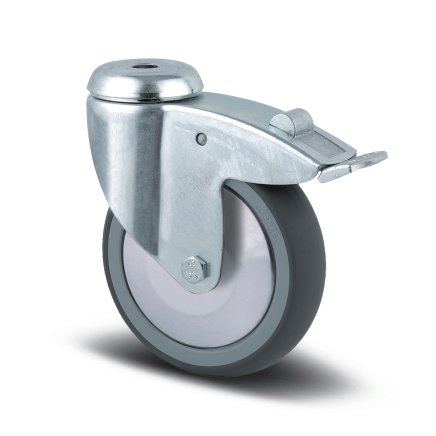

Gray instrument wheel of ø 100 mm with total brake, rotatable with cover
Code: 2477PJH100P30-11
Rotating instrument wheel ø 100 mm with total brake, fork made of pressed steel, double ball bearing in swivel head, hole for pin. The center of the wheel is made of polypropylene, the tread is made full description and parameters
Product description
Instrument wheel gray ø 100 mm 2477PJH100P30-11
Rotating instrument wheel ø 100 mm with total brake, fork made of pressed steel, double ball bearing in swivel head, hole for pin. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing. It can be mounted with standard screws of any length.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- diameter of central hole 11 mm
- turning radius 131 mm
- dynamic load capacity 80 kg
- static load capacity 160 kg
- wheel diameter 100 mm
- tread width 32 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 135 mm
Technical parameters
Carrying capacity
80 kg
Wheel diameter
100 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
