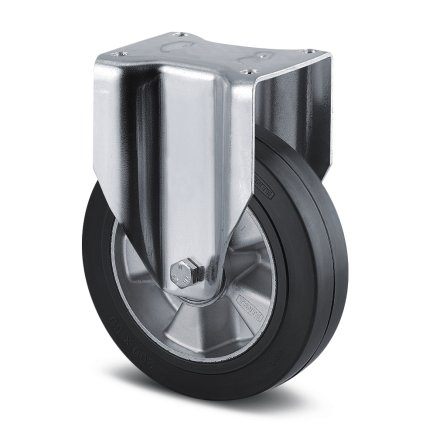

Fixed instrument wheel, black, ø 160 mm, with mounting plate
Code: 3648IEP160P63
Fixed instrument wheel with a diameter of 160 mm, fork made of reinforced sheet metal, blue zinc chromate, center of the wheel with a nut, attachment with a plate. Wheel center made of aluminum alloy, full description and parameters
Product description
Fixed instrument wheel, black, ø 160 mm with mounting plate 3648IEP160P63
Fixed instrument wheel with a diameter of 160 mm, fork made of reinforced sheet metal, blue zinc chromate, center of the wheel with a nut, attachment with a plate. Wheel center made of aluminum alloy, black elastic vulcanized rubber tread, precision ball bearing.
- aluminum alloy wheel center
- black elastic vulcanized rubber tread
- precision ball bearing
- temperature resistance -20 °C to 85 °C
- plate size 137 x 115 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 350 kg
- static load capacity 700 kg
- wheel diameter 160 mm
- tread width 50 mm
- Shore A67 tread hardness
- meets the EN 12532 standard
- building height 210 mm
Technical parameters
Carrying capacity
350 kg
Wheel diameter
160 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3648IEP160P63
ball
160 mm
350 kg
No
31.34 Eur
