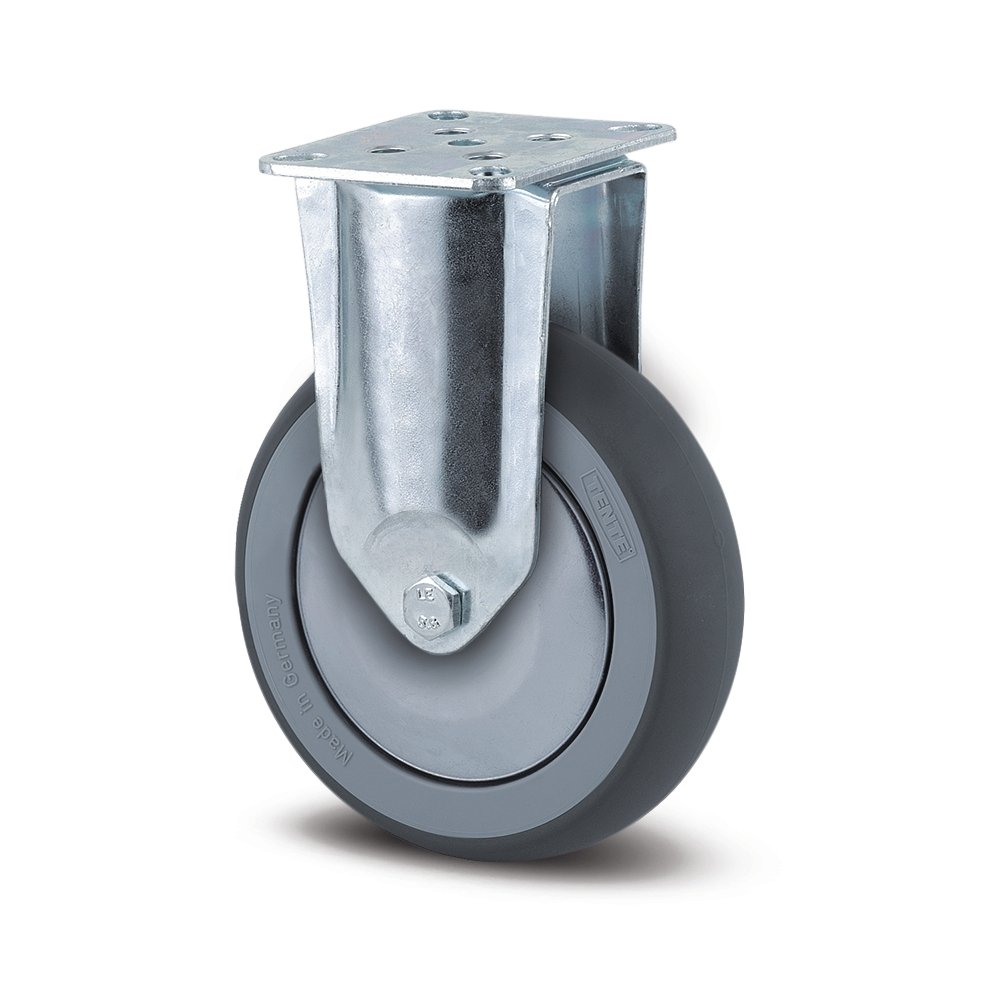

Fixed gray wheel with a diameter of 125 mm with a mounting plate
Code: 2478PJH125P50
Fixed instrument wheel with ø 125 mm, fork made of pressed steel, zinc chromated, mounting with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene full description and parameters
Product description
Fixed wheel gray ø 125 mm with mounting plate 2478PJH125P50
Fixed instrument wheel with ø 125 mm, fork made of pressed steel, zinc chromated, mounting with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.
- longitudinal side of the fixing plate transverse to the direction of travel
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- temperature resistance -20 °C to 60 °C
- plate size 77 x 67 mm
- hole spacing 61.5/56 x 51.5/46.5 mm
- hole diameter 8.5 mm
- dynamic load capacity 100 kg
- static load capacity 200 kg
- wheel diameter 125 mm
- tread width 32 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 160 mm
Technical parameters
Carrying capacity
75 kg
Wheel diameter
125 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
