Instrument body mini 1500 mm
Code: NSE15-Z
Instrument superstructure - bar mini 1500 mm. To store individual modules. The instrument bar can be placed on the worktop, in the superstructure or above the table top. It is possible to add up to two shelves above the instrument panel. Without individual modules - illustrative photos.
Instrument superstructure mini 2000 mm
Code: NSE20-Z
Instrument superstructure - bar mini 2000 mm. To store individual modules. The instrument bar can be placed on the worktop, in the superstructure or above the table top. It is possible to add up to two shelves above the instrument panel. Without individual modules - illustrative photos.
LED lamp 1200 mm
Code: ZSL-15-VL+
LED lamp, for table width 1500 mm, lamp length 1200 mm. Without individual modules, shelves, table and instrument bar - illustrative photo.
LED lamp 1700 mm
Code: ZSL-20-VL+
LED lamp, for table width 2000 mm, lamp length 1700 mm. Without individual modules, shelves, table and instrument bar - illustrative photo.
Module 1F
Code: M08K-10
Module 1F central switch, 10 A circuit breaker, protectors and TOTAL STOP button.
Module 3F
Code: M32K-10
3F central switch module, 10 A circuit breakers, protectors and TOTAL STOP buttons (360 mm).
Module 1F
Code: M59K-16 4.0
Module 1F circuit breaker 16 A / B / 0.03 A (60 mm).
Independent rocker switch module
Code: M13K 4.0
Separate rocker switch module 0/1 (30 mm).
DC source module
Code: M10K 4.0
Module DC source 6-12-24 V/2 A unstabilized, unfiltered (210 mm).
Stabilized DC source module
Code: M14K 4.0
12 V/1 A DC power supply module, ON/OFF switch (60 mm).
Stabilized DC source module
Code: M15K 4.0
DC power supply module 5 V/2 A, ON/OFF switch (90 mm).
Stabilized symmetrical DC source module
Code: M16K 4.0
Module of stabilized symmetrical DC source 15 V/1 A, ON/OFF switch (90 mm).
Stabilized DC source module
Code: M18K 4.0
Module of stabilized DC source 24 V/4 A, ON/OFF switch, power-on light (90 mm).
Stabilized DC source module
Code: M27K 4.0
Module of stabilized DC source 12 V/15 A, ON/OFF switch, power-on light (210 mm).
AC power supply module
Code: M11K 4.0
AC source module 6 - 12 - 24 V/2 A (210 mm).
AC module
Code: M26K 4.0
AC module, 3f source transformer 3x 42 V/24 V/10 A (90 mm).

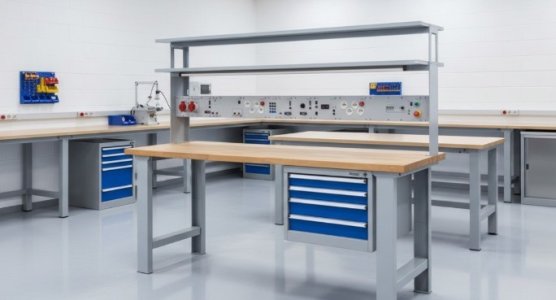

ELWork desks are the ideal solution for workplaces that need to combine electrical and mechanical work in one place. The base of the table is a durable steel structure and the worktop is a solid beech joint. The electromechanical equipment of the workplace is clearly and safely integrated in the instrument panel.
The individually designed composition of modules in the toolbar allows you to adapt the ELWork workplace to all the needs of the tasks and work being performed. We will configure the dashboard exactly according to your needs and requirements. The basis of the instrument panel is the mandatory M08K module for single-phase or M32K module for three-phase equipment. Choose the individual modules together with the work table and other accessories such as shelves or lighting and we will prepare a price calculation for you.
