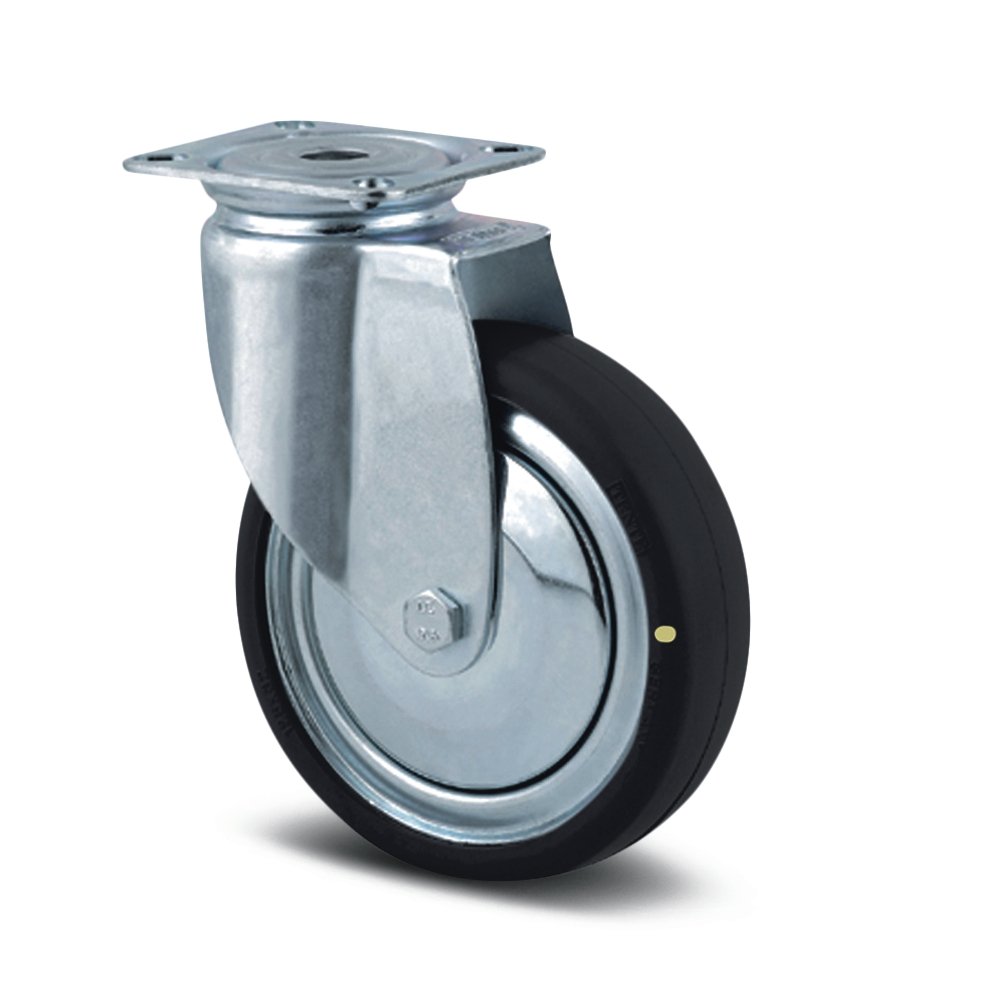

Electrically conductive wheel with a diameter of 100 mm with a mounting plate
Code: 2470DYK100P50
Electrically conductive swivel wheel with a diameter of 100 mm, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with full description and parameters
Product description
Electrically conductive wheel ø 100 mm with mounting plate 2470DYK100P50
Electrically conductive swivel wheel with a diameter of 100 mm, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with plate. The center of the wheel is made of pressed steel, the tread is made of black rubber non-blackening rim, anti-filament cover, taper bearing.
- wheel center made of pressed steel
- tread from black rubber non-blackening hoop
- tapered bearing
- temperature resistance -20 °C to 85 °C
- plate size 77 x 67 mm
- hole spacing 61.5/56 x 51.5/46.5 mm
- hole diameter 8.5 mm
- dynamic load capacity 80 kg
- static load capacity 160 kg
- wheel diameter 100 mm
- tread width 32 mm
- tread hardness Shore A80
- meets the EN 12530 standard
- building height 135 mm
Technical parameters
Carrying capacity
80 kg
Wheel diameter
100 mm
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Wheel diameter
Carrying capacity
In stock
Price
