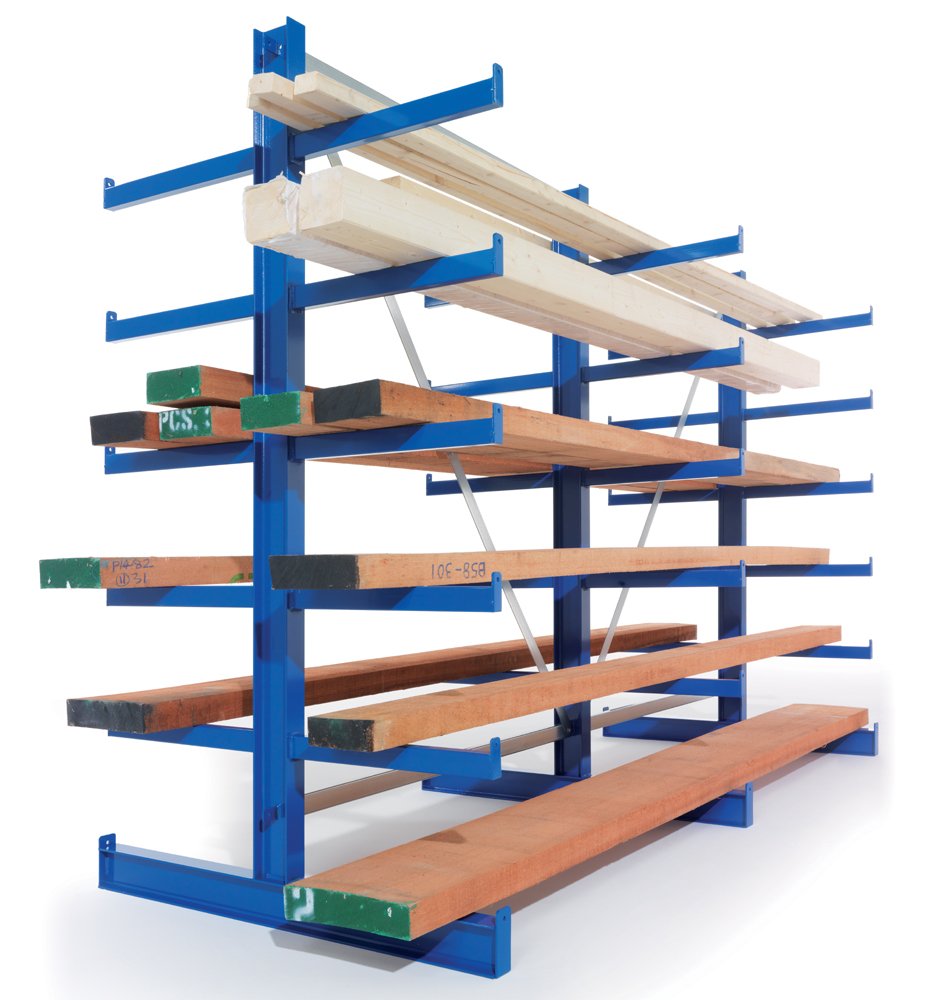

Double-sided console rack type 97841
Code: 97841
Atlas ST double-sided cantilever rack with the same arm length. Number of arms 2 x 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 full description and parameters
Product description
Double-sided console rack type 97841
Atlas ST double-sided cantilever rack with the same arm length. Number of arms 2 x 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg.
- with the number of webs 3, the total width of the shelf is 2700 mm
- with the number of webs 4, the total width of the shelf is 4050 mm
- with the number of webs 5, the total width of the rack is 5400 mm
- with the number of webs 6, the total width of the rack is 6750 mm

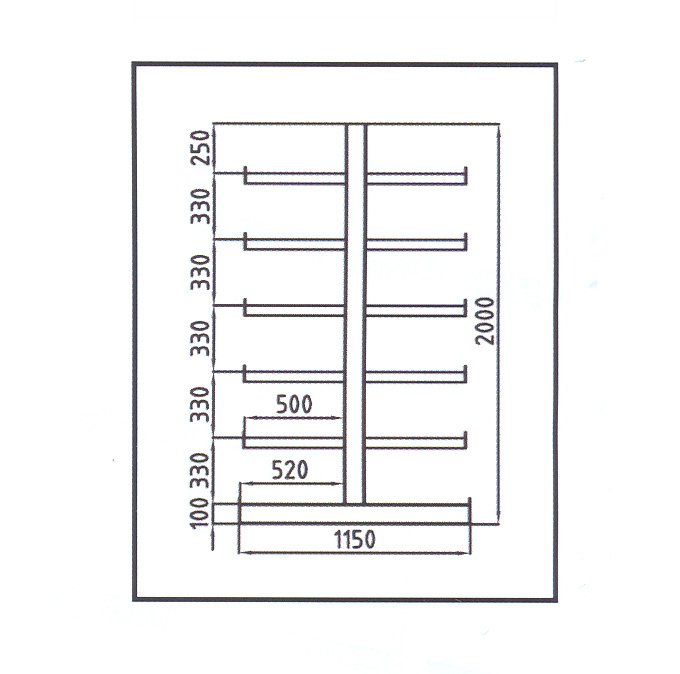

- axial distance of webs is 1350 mm
- arm capacity 200kg
- clearance between arms 300 mm
- clear arm depth 500 mm
Technical parameters
Total height
2000 mm
Width
6750 mm
Depth
1150 mm
Column load capacity
1200 kg
Carrying capacity of the arm
200 kg
Number of arms
10
Number of webs
6
Mass
251 kg
Warranty (years)
5
Manufacturer
All models
Technical parameters
Code
Mass
Number of webs
Number of arms
Carrying capacity of the arm
Column load capacity
Total height
Width
Depth
In stock
Price
You are currently browsing
97841
251 kg
6
10
200 kg
1200 kg
2000 mm
6750 mm
1150 mm
No
864.20 Eur
