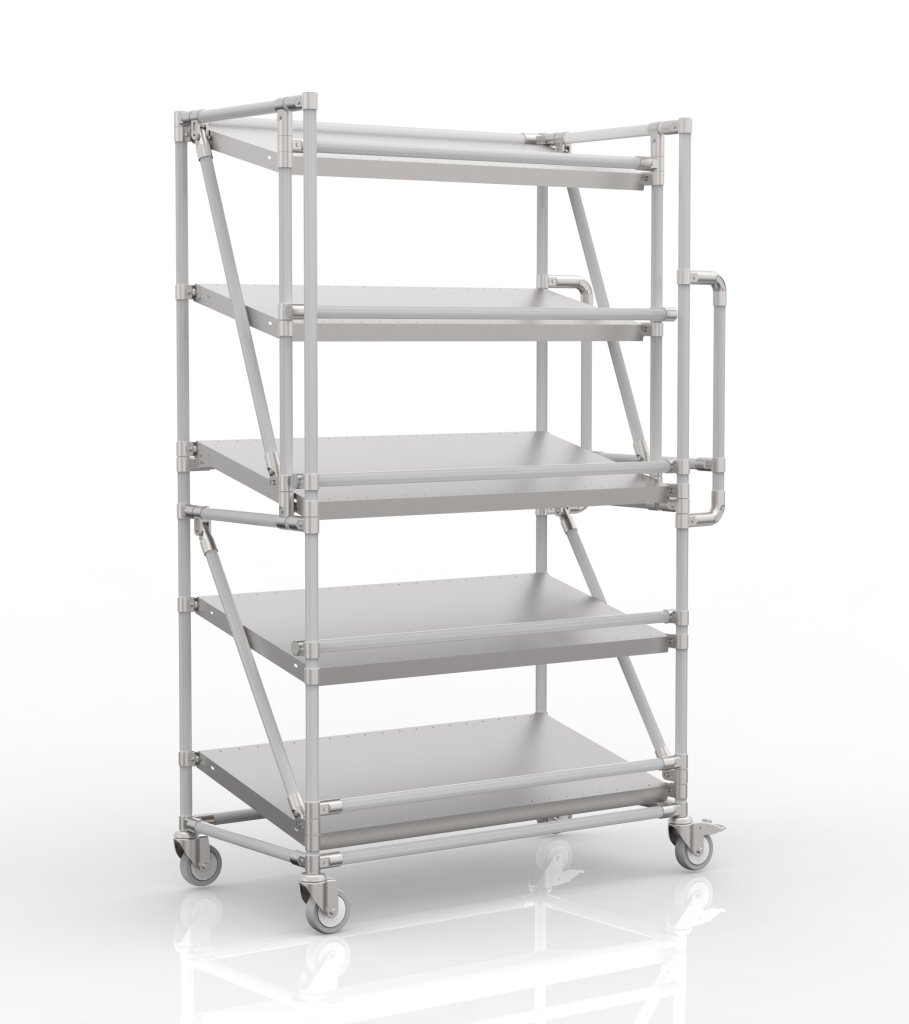

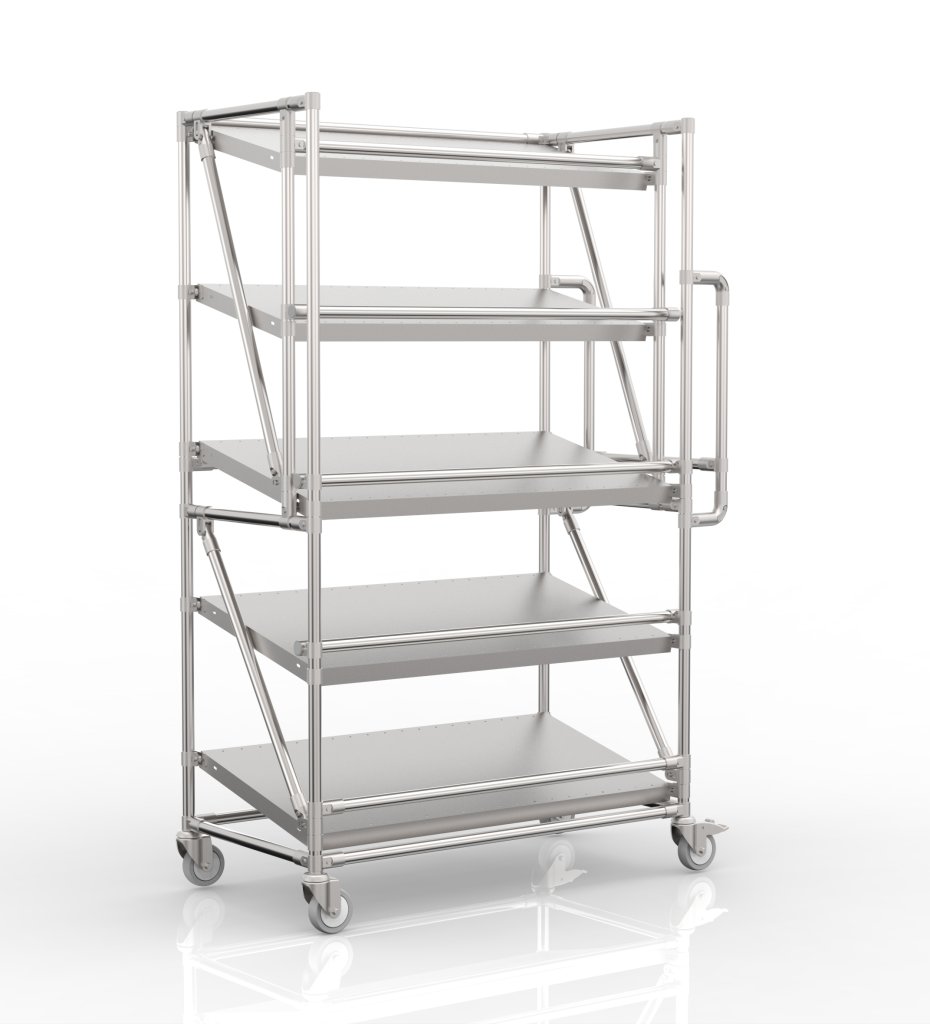

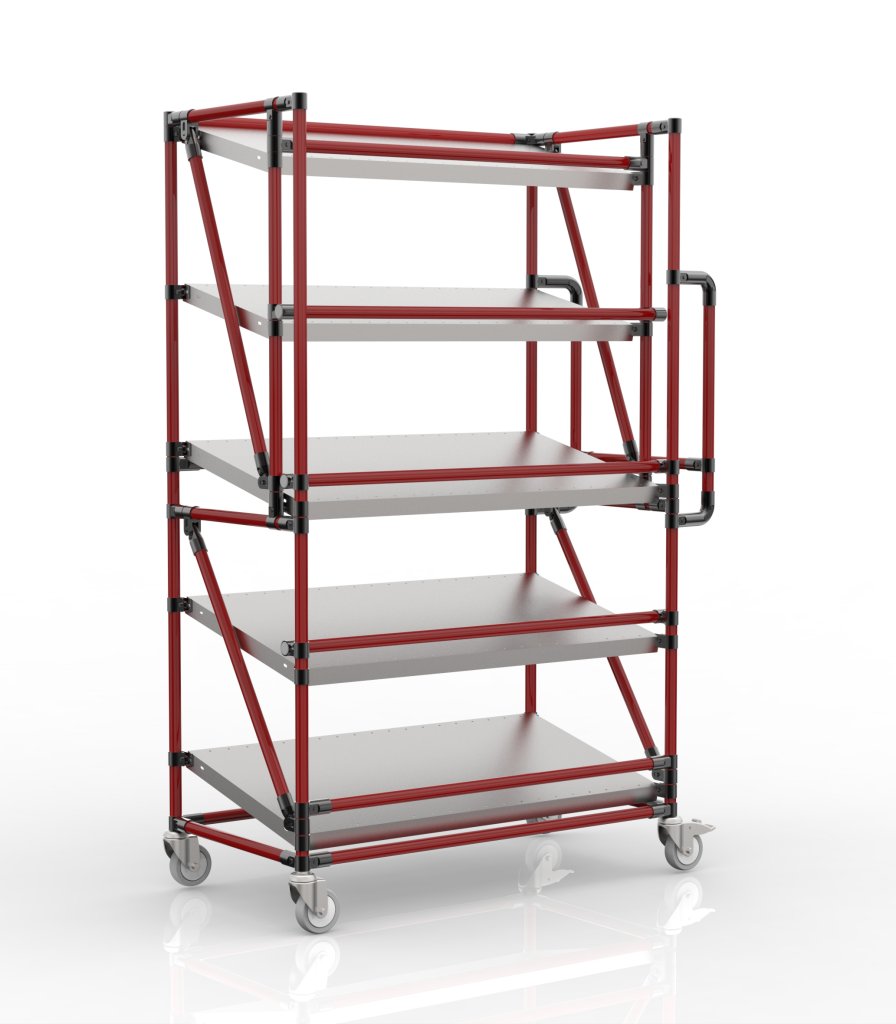

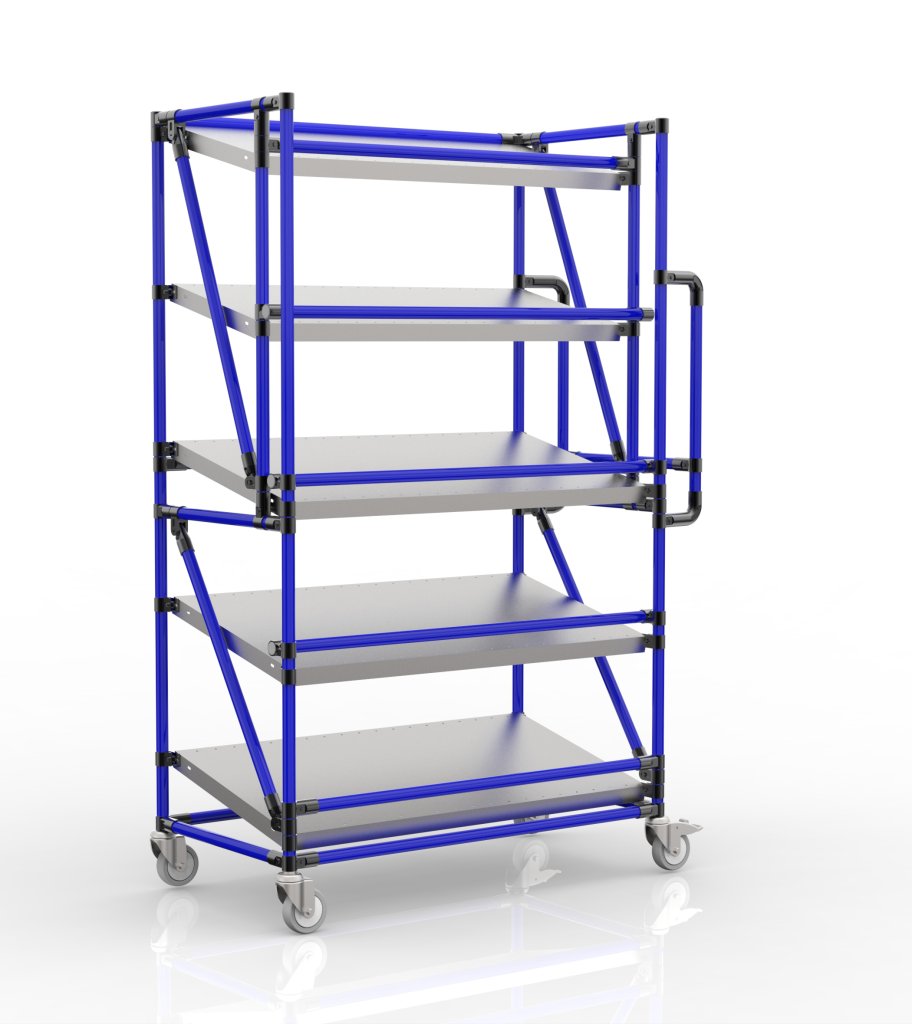

Crate rack trolley with inclined shelves SP100_50_40

Code: SP100_50_40

The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel full description and parameters

Product drawing SP100_50_40

Product description

Picking trolley with 5 inclined shelves SP100_50_40

The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1770 x 1059 x 567 mm.

rack trolley for crates
dimensions 1770 x 1059 x 567 mm
5x galvanized sloping shelves
2x shelves 1000 x 400 mm, 3x shelves 1000 x 500 mm
2x swivel wheel with brake, 2x swivel wheel without brake
wheel diameter 100 mm
low rolling resistance wheels for easy handling
ergonomic handle
possibility of equipping drawbars to connect "to the train" (Milk-run system)
total load capacity 300 kg
shelf load capacity 60 kg
cart weight 60-80 kg depending on the chosen configuration

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).

Color variants	ESD variant	Stainless steel variant

1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)

Black variant	Nickel variant	Silver variant

metal clutches are always available in three variants - black, silver and nickel

Technical parameters

Total height

1770 mm

Width

1059 mm

Depth

567 mm

Carrying capacity

300 kg

Shelf capacity

60 kg

Shelf dimension

1000x400 + 1000x500 mm

Number of shelves

5

Wheel diameter

mm

Warranty (years)

2
