Console rack one-sided type 97836
Code: 97836

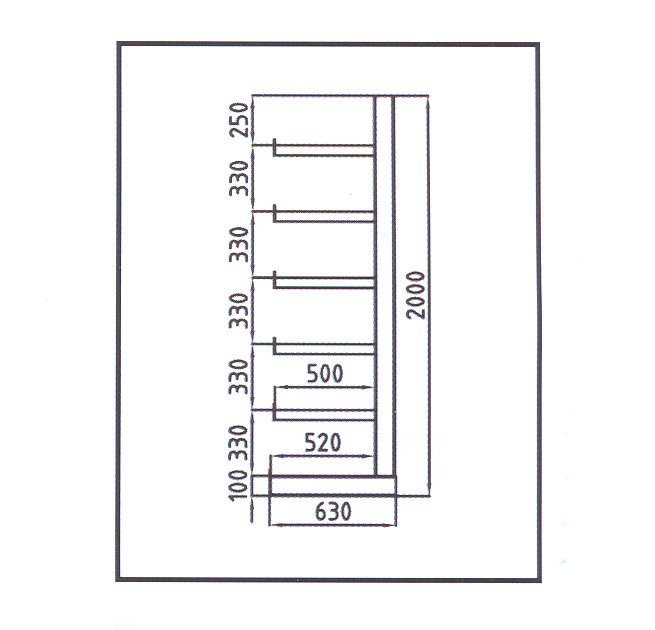

Atlas ST single-sided cantilever rack with the same length of arms. Number of arms 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 full description and parameters
Product description
Console rack one-sided type 97836
Atlas ST single-sided cantilever rack with the same length of arms. Number of arms 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 630 mm, color blue RAL 5010. Arm capacity 200 kg.
- with the number of webs 3, the total width of the shelf is 2700 mm
- with the number of webs 4, the total width of the shelf is 4050 mm
- with the number of webs 5, the total width of the rack is 5400 mm
- with the number of webs 6, the total width of the rack is 6750 mm
- axial distance of webs is 1350 mm
- arm capacity 200kg
- clearance between arms 300 mm
- clear shoulder depth 500 mm
Technical parameters
Total height
2000 mm
Width
6750 mm
Depth
630 mm
Column load capacity
1200 kg
Carrying capacity of the arm
200 kg
Number of arms
5
Number of webs
6
Mass
186 kg
Warranty (years)
5
Manufacturer
All models
Technical parameters
Code
Mass
Number of webs
Number of arms
Carrying capacity of the arm
Column load capacity
Total height
Width
Depth
In stock
Price
You are currently browsing
97836
186 kg
6
5
200 kg
1200 kg
2000 mm
6750 mm
630 mm
No
641.77 Eur
