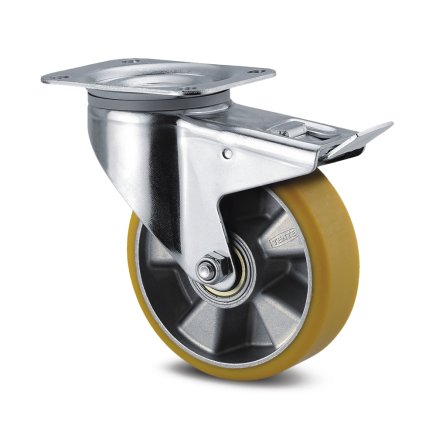

Brown instrument wheel with ø 160 mm with total brake and mounting plate
Code: 3477ITP160P63
Instrument wheel ø 160 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel fixed with screw and nut, anti-filament cover, mounting with plate. full description and parameters
Product description
Instrument wheel brown ø 160 mm with total brake and mounting plate 3477ITP160P63
Instrument wheel ø 160 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in swivel head, wheel fixed with screw and nut, anti-filament cover, mounting with plate. Wheel center made of aluminum alloy, tread cast from polyurethane, precision ball bearing.
- aluminum alloy wheel center
- polyurethane tread, cast
- precision ball bearing
- temperature resistance -20 °C to 60 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 350 kg
- static load capacity 700 kg
- wheel diameter 160 mm
- tread width 50 mm
- Shore A92 tread hardness
- meets the EN 12532 standard
- building height 200 mm
Technical parameters
Carrying capacity
350 kg
Wheel diameter
160 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
