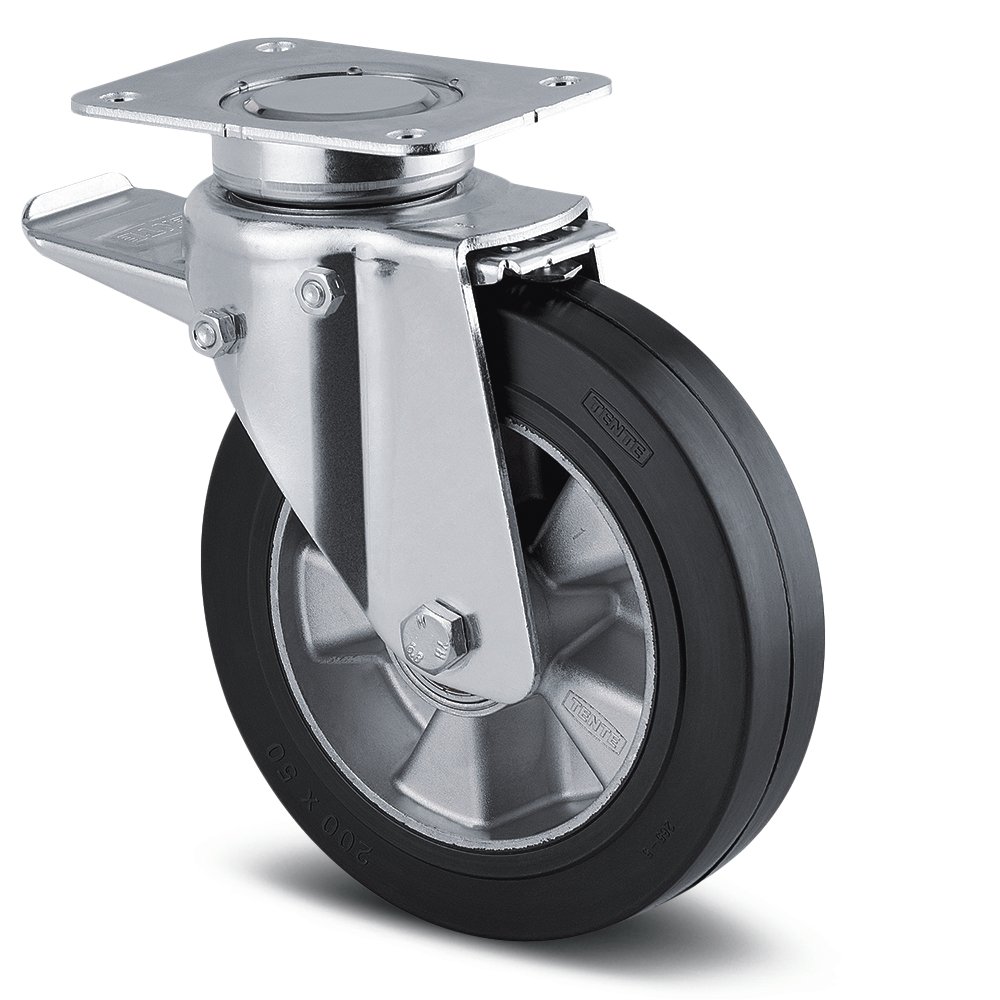

Black instrument wheel with ø 200 mm with total brake and mounting plate
Code: 3642IEP200P63
Instrument wheel ø 200 mm with total brake, fork made of reinforced sheet metal, blue zinc chromate, rotating wheel head with sealed precision ball bearing, wheel center with nut, mounting with plate. full description and parameters
Product description
Instrument wheel black ø 200 mm with total brake and mounting plate 3642IEP200P63
Instrument wheel ø 200 mm with total brake, fork made of reinforced sheet metal, blue zinc chromate, rotating wheel head with sealed precision ball bearing, wheel center with nut, mounting with plate. Wheel center made of aluminum alloy, black elastic vulcanized rubber tread, precision ball bearing.
- aluminum alloy wheel center
- black elastic vulcanized rubber tread
- precision ball bearing
- temperature resistance -20 °C to 85 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 450 kg
- static load capacity 900 kg
- wheel diameter 200 mm
- tread width 50 mm
- Shore A67 tread hardness
- meets the EN 12532 standard
- building height 250 mm
Technical parameters
Carrying capacity
450 kg
Wheel diameter
200 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
You are currently browsing
3642IEP200P63
ball
200 mm
450 kg
No
79.76 Eur
