Workshop trolley made of pipe system made to measure 25010830

Workshop trolley made of pipe system made to measure

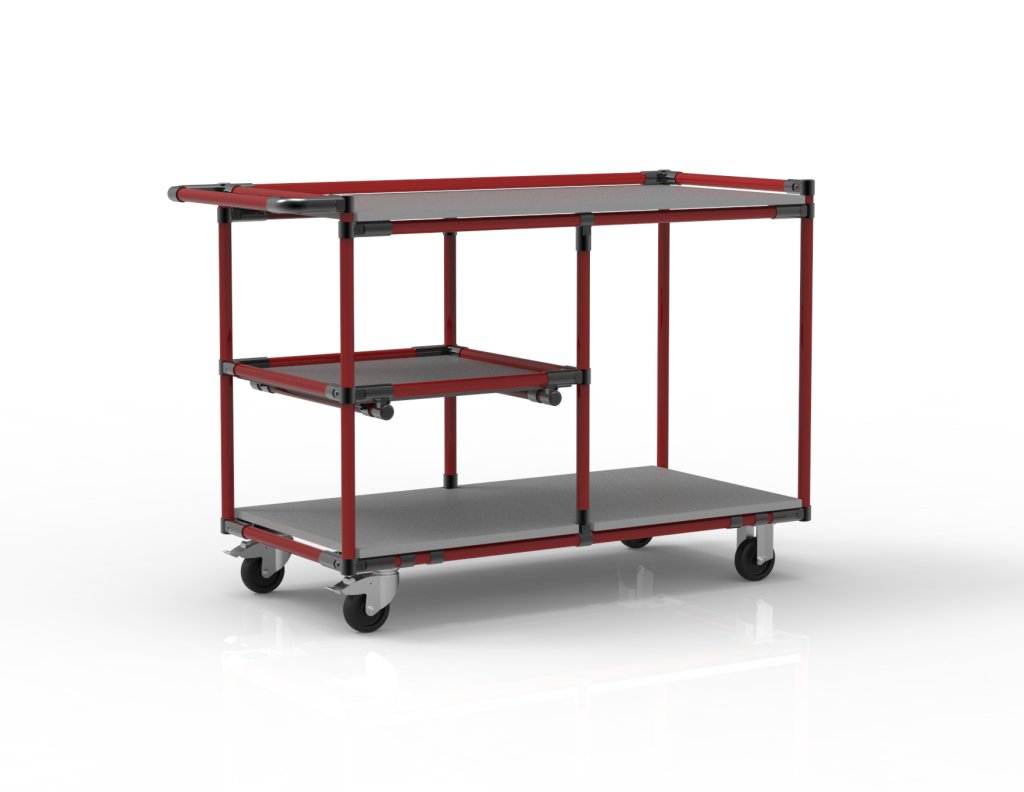

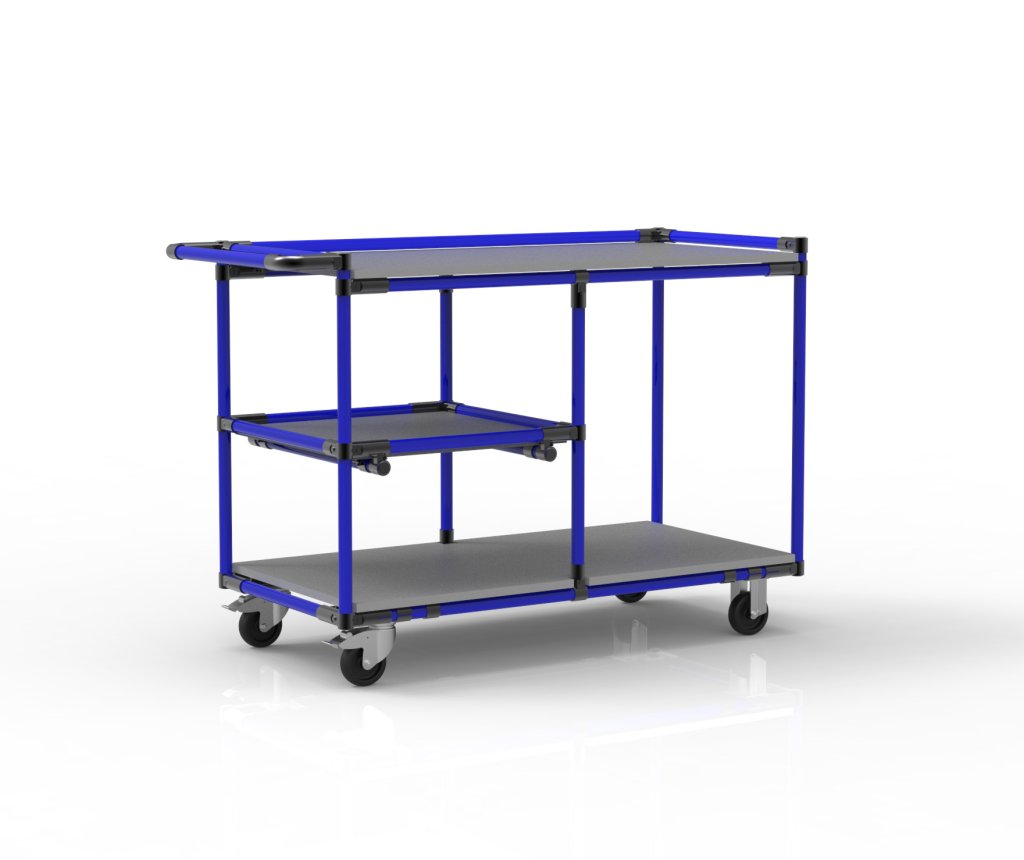

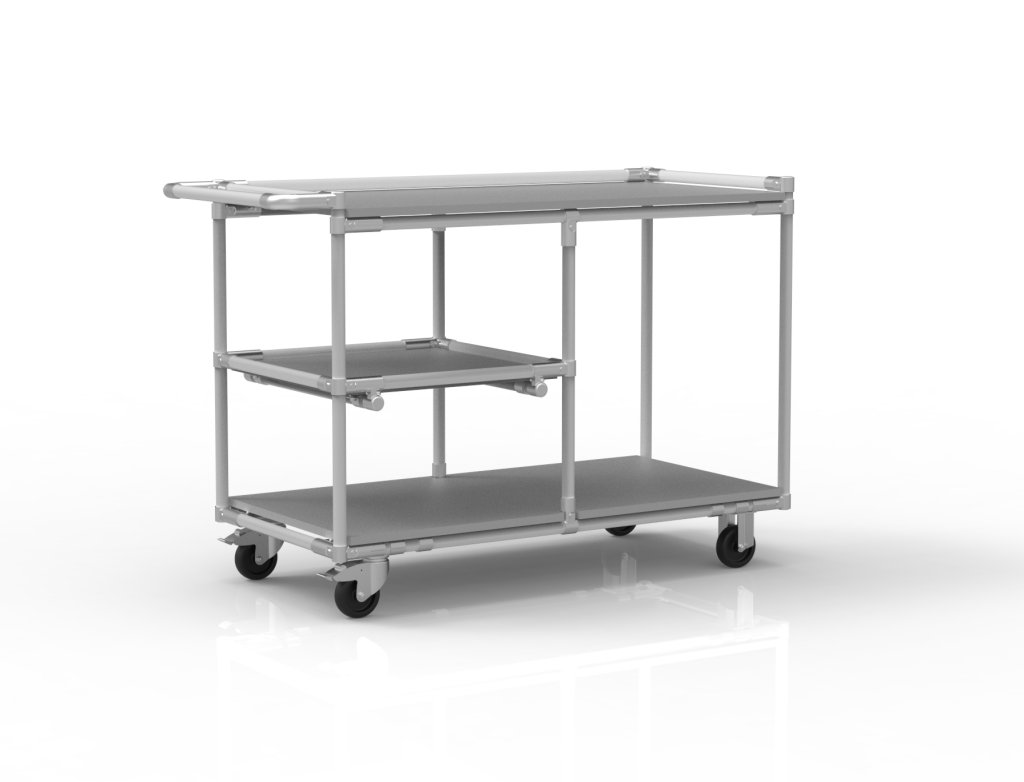

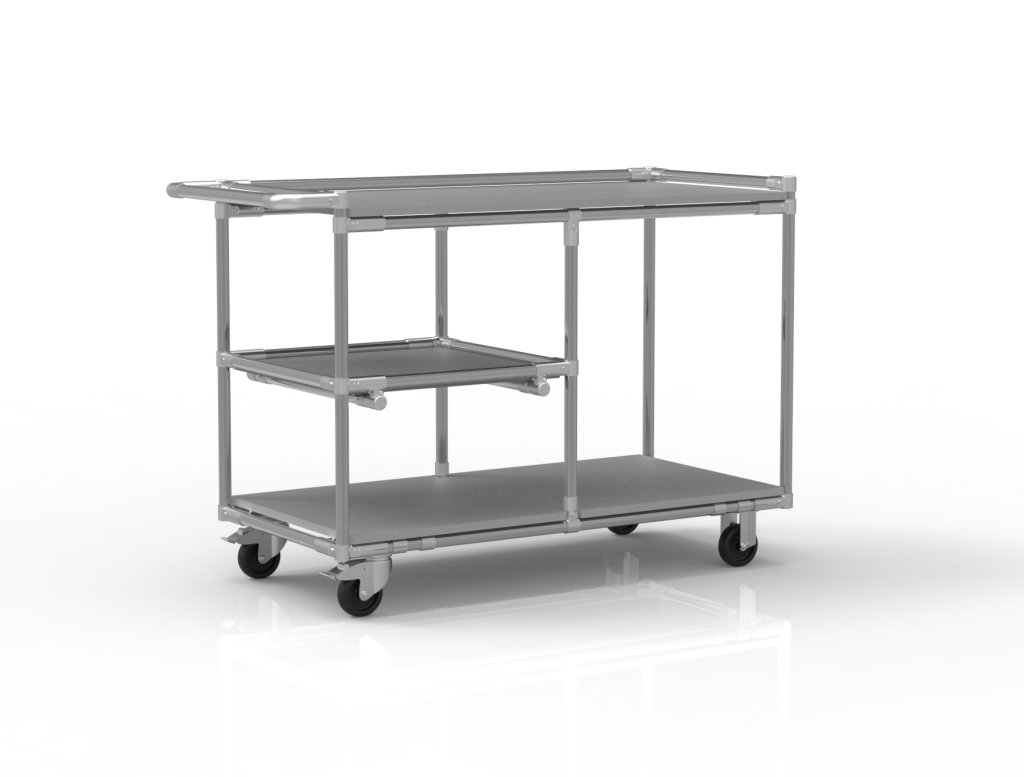

Workshop trolley made from a tubular modular system. This trolley is equipped with an 18 mm thick laminated chipboard that provides a solid and stable work surface. The trolley includes four wheels with a diameter of 100 mm. Total load capacity 250 kg, floor load capacity 100 kg. Dimension 900 x 1333 x 583 mm.

• tailored implementation
• the color of the trolley can be selected according to the available tubes on the website
• DTDL plate thickness 18 mm
• total load capacity 250 kg*
• floor load capacity 100 kg*
• 2x swivel wheel with brake Ø100 mm
• 2x swivel wheel fixed Ø100 mm
• ESD variant available

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.

*at uniform load

Color variants	ESD variant	Stainless steel version
1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)

Black variant	Nickel variant	Silver variant
metal clutches are always available in three variants - black, silver and nickel
