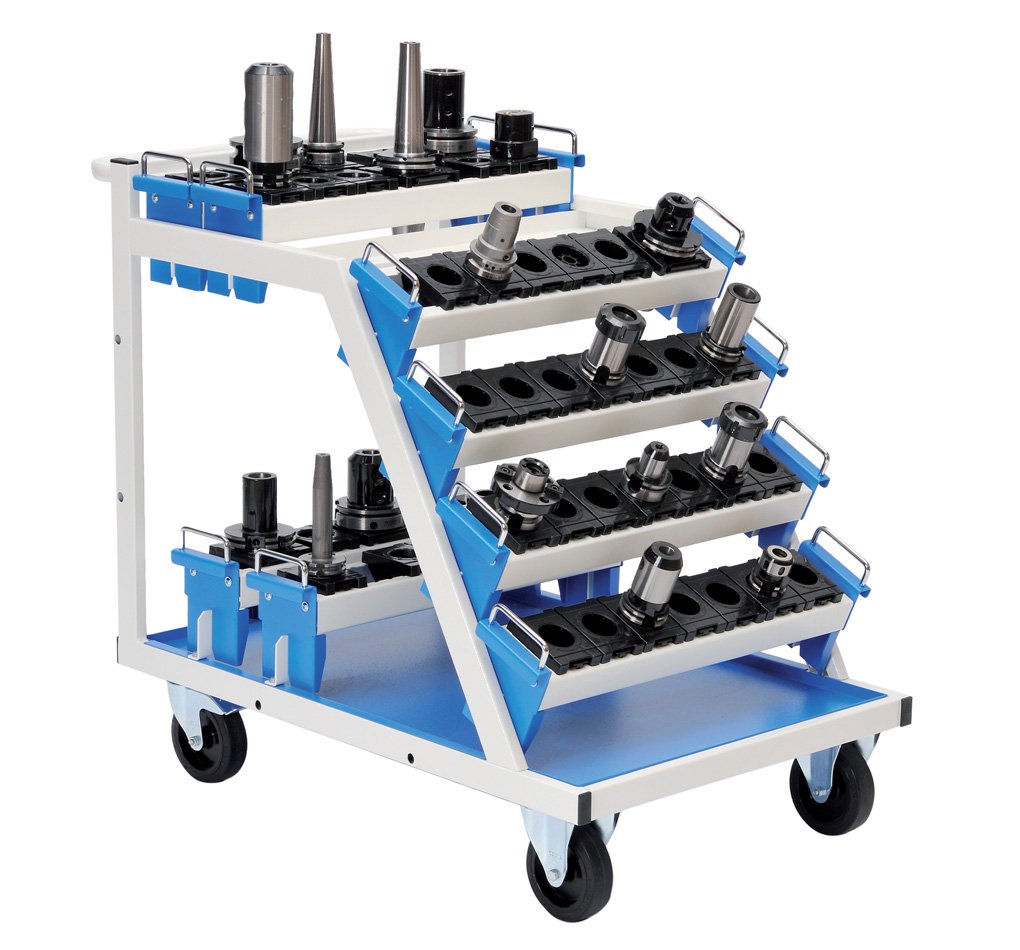

Trolley for CNC tools 02.288.06A with equipment

Code: 02.288.06A

Transport trolley for NC tools, height 860 x width 630 x depth 900 mm. Includes carriers and plastic CNC tool holders with a choice of E1, E2 or E3 holder sizes. The supplied and maximum number of full description and parameters

Made to order, delivery time 2 - 6 weeks. May vary depending on manufacturer's capacity.

1 663.13 Eur (2 012.39 Eur with VAT)

Product description

Trolley for CNC tools 02.288.06A with equipment

Transport trolley for NC tools, height 860 x width 630 x depth 900 mm. Includes carriers and plastic CNC tool holders with a choice of E1, E2 or E3 holder sizes. The supplied and maximum number of holders and other information see the table in the detailed description (see the full description in the left menu).

frame color light gray RAL 7035
color of carrier sides and storage shelves according to your choice

Interior equipment:

6x CNC carrier fixed
2x lower removable CNC carrier
1x storage area
plastic beds E1, E2 or E3 (according to your choice)

Code	Interior Equipment	W x D x H (mm)	Size and number of beds supplied - cannot be combined
Code	Interior Equipment	W x D x H (mm)	CNC E1	CNC E2	CNC E3
02.288.06A	8x CNC carrier, 1x storage area	630 x 900 x 860	42 / 60*	42 / 42*	25 / 30*
02.58.44A	8x CNC carrier, 1x upper shelf	990 x 610 x 1450	84 / 192*	84 / 132*	64 / 96*
* The 1st figure indicates the number of beds delivered together with the product, the 2nd figure indicates the maximum number of beds that can be placed in the carriers. When ordering, please indicate for which type of tool carrier the selected beds will be used (see table below). If you do not provide this information, beds type ISO / SK 40 (E2) will be delivered with the product. Beds do not include tools, their depiction is for illustration purposes only.

According to the chosen bed size, choose the required type and number of CNC tool holders (all without additional charges)< br />

ISO / SK 30	ISO / SK 40*	ISO / SK 50
Cyl / VDI 30	Cyl / VDI 40	VDI 50
MK 3	HSK A 50 / B 63	HSK A 32 / B 40
MK 4	HSK A 63 / B 80	HSK A 40 / B 50
Capto C 4	MK 5	HSK A 80 / B 100
	Capto C 5	HSK A 100 / B 125
		Universal
		Capto C 3
		Capto C 6
		Capto C 8
* NOTE - if no information is provided as to what type of carriers the beds are to be equipped with, the type ISO / SK 40 (size E2) will be delivered

Technical parameters

Height

860 mm

Width

630 mm

Depth

900 mm

Equipment holders

yes, as per your choice

Carrying capacity

400 kg

Warranty (years)

5

Manufacturer
