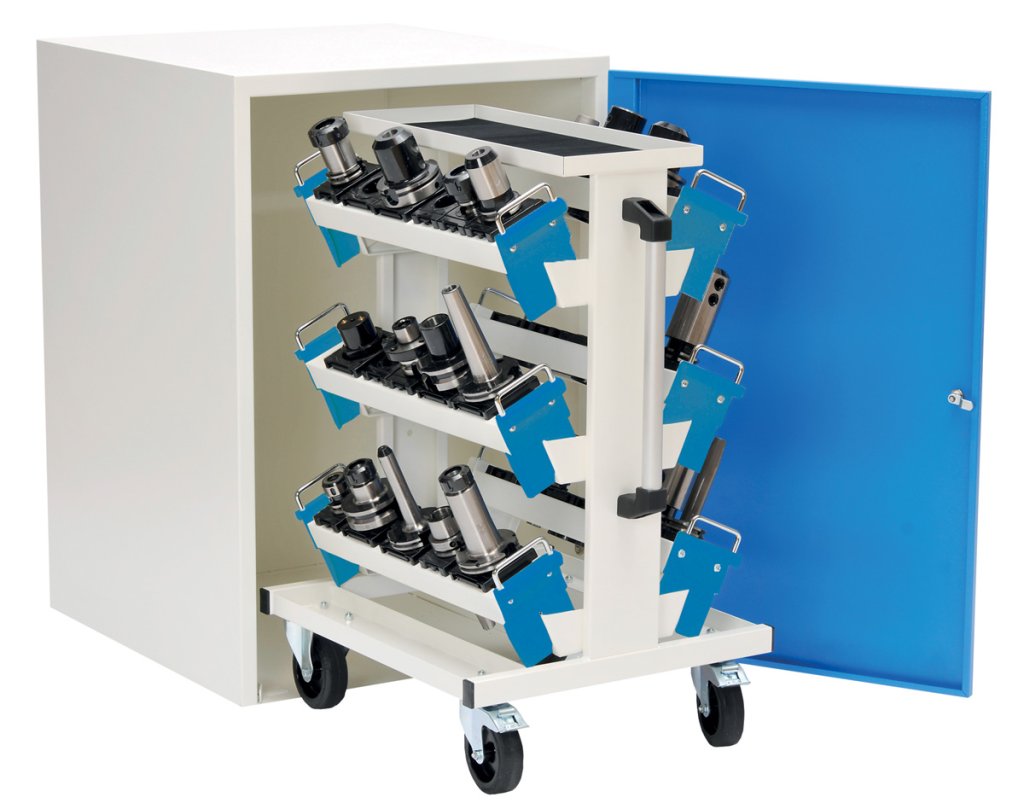

Trolley for CNC tools 02.285.07A with equipment
Code: 02.285.07A
Transport trolley for NC tools, height 950 x width 560 x depth 630 mm. Includes carriers and plastic CNC tool holders with a choice of E1, E2 or E3 holder sizes. Can be delivered including a lockable full description and parameters
Trolley for CNC tools 02.285.07A with equipment
Transport trolley for NC tools, height 950 x width 560 x depth 630 mm. Includes carriers and plastic CNC tool holders with a choice of E1, E2 or E3 holder sizes. Can be delivered including a lockable storage cabinet - height 1019 x width 705 x depth 736 mm. The supplied and maximum number of holders and other information see the table in the detailed description (see the full description in the left menu). The price shown is without the storage cabinet.
- body color light gray RAL 7035
- dimensions of the storage cabinet - height 1019 x width 705 x depth 736 mm
- color of the front surface of the cabinet and the side surfaces of the carriers according to your choice
Interior equipment of the trolley:
- 6x CNC carrier
- plastic beds E1, E2 or E3 (according to your choice)
| Code |
Interior Equipment |
W x D x H (mm) | Size and number of beds supplied - cannot be combined |
||
| CNC E1 |
CNC E2 |
CNC E3 |
|||
| 02.285.07A |
6x CNC carrier |
560 x 630 x 950 |
30 / 60* |
30 / 42* |
20 / 30* |
| 02.285.01A | 6x CNC carrier | 560 x 930 x 950 |
48 / 96* |
48 / 66* |
34 / 48* |
| * The 1st figure indicates the number of beds delivered together with the product, the 2nd figure indicates the maximum number of beds that can be placed in the carriers. When ordering, please indicate for which type of tool carrier the selected beds will be used (see table below). If you do not provide this information, beds type ISO / SK 40 (E2) will be delivered with the product. Beds do not include tools, their depiction is for illustration purposes only. |
|||||
| According to the chosen bed size, choose the required type and number of CNC tool holders (all without additional charges)< br /> | ||
 |
 |
 |
| ISO / SK 30 | ISO / SK 40* |
ISO / SK 50 |
| Cyl / VDI 30 |
Cyl / VDI 40 |
VDI 50 |
| MK 3 |
HSK A 50 / B 63 |
HSK A 32 / B 40 |
| MK 4 |
HSK A 63 / B 80 |
HSK A 40 / B 50 |
| Capto C 4 |
MK 5 |
HSK A 80 / B 100 |
| Capto C 5 |
HSK A 100 / B 125 |
|
| Universal | ||
| Capto C 3 |
||
| Capto C 6 |
||
| Capto C 8 |
||
| * NOTE - if no information is provided as to what type of carriers the beds are to be equipped with, the type ISO / SK 40 (size E2) will be delivered |
||
