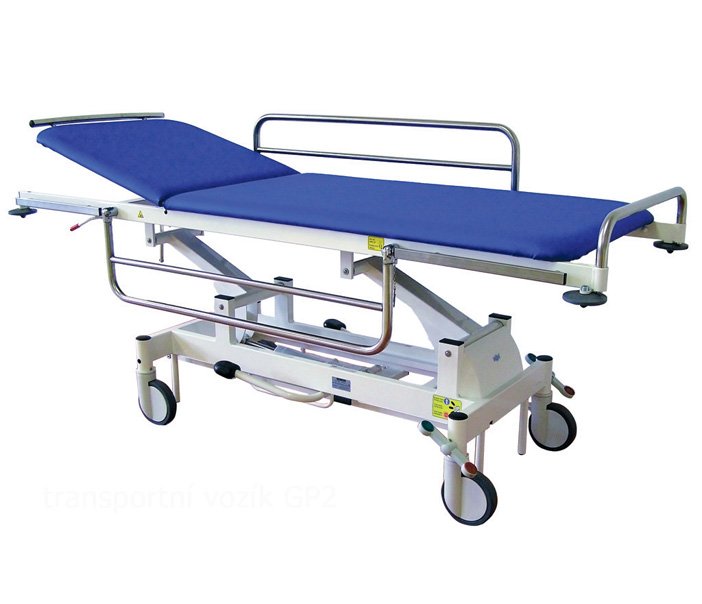

Transport bed GP2

Transport bed adjustable in height with a hydraulic foot pedal, dimensions of the loading area 66 x 195 cm, passage width 74 cm, external length of the trolley is 203 cm. Folding headrest, stainless steel barriers on both sides, height adjustable 49 - 94 cm.

The bed has a modern design with a successful construction. It is very stable, easy to maintain (little broken structure) and is intended for use inside buildings. Compared to previous models, the increased safety is primarily for patients. The bed is easy to operate due to its simplicity, the travel wheels are centrally controlled from both sides. The height adjustment makes it easier for the medical staff to move heavier patients. Possibility of tilting the leg part into the anti-shock Trendelenburg position (0 to +12°).

• with the help of foot hydraulic mechanics, the bed can be adjusted in height in the range of 49 - 94 cm (by stepping on the foot lever on any side, the entire loading area goes up and by lifting the lever, it goes down)
• fixing stainless steel media strip (euro strip) (25 x 10) is around the perimeter of the frame and also serves as a protective frame against damage to the leatherette by the door
• centrally operated wheels with a diameter of 150 mm - not antistatic (antistatic can be ordered)

1) upper position = straight direction arrest

2) middle position = relaxed state

3) lower position = total blocking

• stainless steel folding barriers on both sides of the cart
• carrying capacity 170 kg
• folding headrest from 0° to 60° lightened by a gas spring
• in the standard there is already a hole for an infusion stand with a diameter of 13 mm in the corners near the head
