Switch cabinet REV 22
Code: REV22 + REV22.001-02
Rev22 switchboard - for 2 separate two-tariff measurements (day, night). Steel sheet meter switchboards of the REV series are used to install single- and three-phase electricity meters with a 16A/B full description and parameters

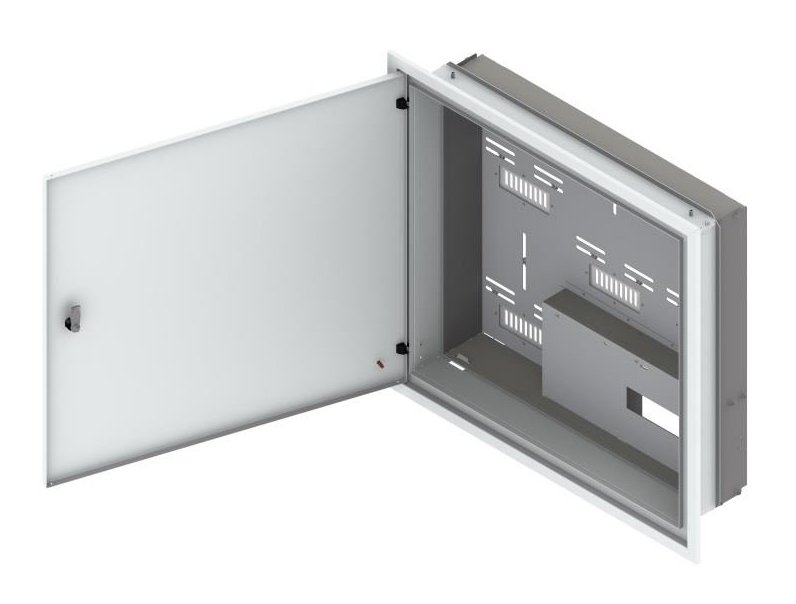

Switch cabinet REV 22
Rev22 switchboard - for 2 separate two-tariff measurements (day, night). Steel sheet meter switchboards of the REV series are used to install single- and three-phase electricity meters with a 16A/B main circuit breaker and a 2A single-phase circuit breaker for HDO switching and are intended for installation in outdoor pillars and solid walls. They are characterized by durable surface treatment, high-quality processing and easy and quick assembly. The cabinet is delivered empty, the installation is individual as needed.
- rev22 series sheet steel meter switchboard
- built-in + frame and door
- frame and door galvanized sheet 1 mm
- quality hinges and closures
- powder coating with a structured surface
- color light gray RAL 7035
- on request, production from 1 mm stainless steel sheet
- closing on a standard square loop (all available types on request)
- mounting tub galvanized sheet 1 mm
- output terminals for wire cross section 10 mm2
- use for 2 separate two-tariff measurements (day, night)
- intended for ČEZ / EON
- rated values 3x400/230V, 50 Hz, max. value of main circuit breaker 63A
- maximum internal power loss 95W

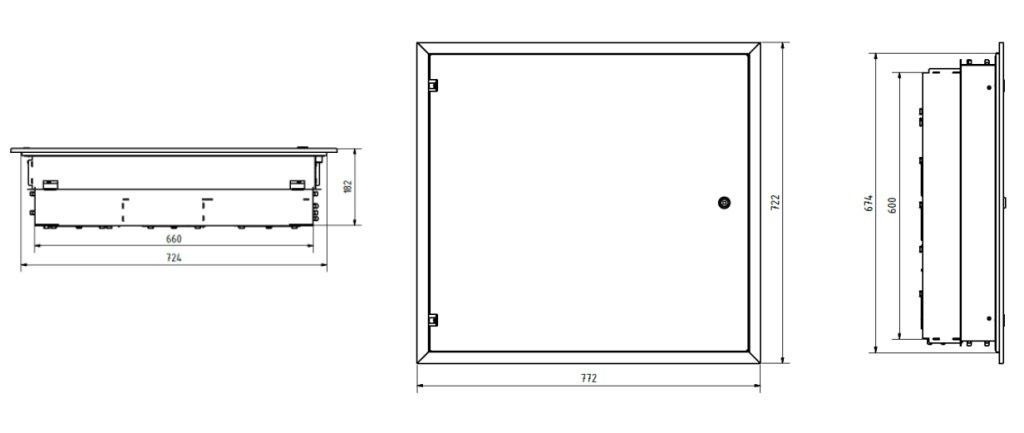

- opening for walling 675 x 725 mm
- the cabinet is delivered empty, the equipment is individual as needed
