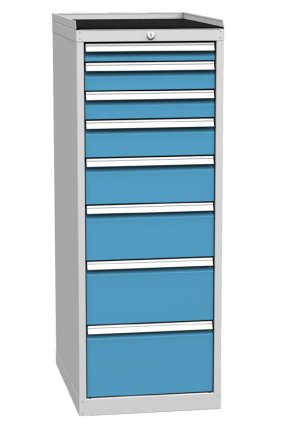

Drawer workshop cabinet DPO 04A
Code: DPO_04_A
Eight-drawer workshop cabinet, width 500, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 1x 120, 1x 150, 1x 180, 1x 210, 1x 240 mm. full description and parameters
Product description
Drawer workshop cabinet DPO 04A
Eight-drawer workshop cabinet, width 500, height 1350, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x drawer 60, 2x 90, 1x 120, 1x 150, 1x 180, 1x 210, 1x 240 mm. Body color RAL 7035 light gray.
- eight drawer
- central lock
- drawer extension 80%
- drawer capacity 80 kg
- the interior space of the drawers can be equipped with plastic or metal partitions
- blocking against pulling out multiple drawers at once
- upper storage area with rubber pad and edge to prevent small objects from falling over
Technical parameters
Total height
1350 mm
Width
500 mm
Depth
700 mm
Drawer front height
53 / 2x85 / 117 / 149 / 181 / 213 / 245 mm
Drawer side height
48 / 3x 72 / 2x 136 / 2x 200 mm
Internal dimensions of the drawer
400 x 560 mm
Mass
118.6 kg
Number of sockets
8
Pull out drawers
Load capacity of one drawer
80 kg
Carrying capacity of the hull
300 kg
Welded product
Yes
Warranty (years)
2
Manufacturer
