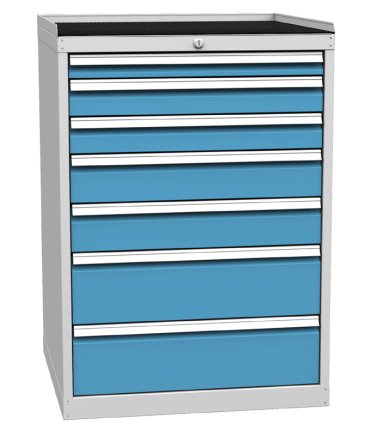

Drawer workshop cabinet DPO 01C
Code: DPO_01_C
Seven-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 60, 2x 90, 2x 120, 2x 180 mm. Body color RAL 7035 light full description and parameters
Product description
Drawer workshop cabinet DPO 01C
Seven-drawer workshop cabinet, width 720, height 1030, depth 700 mm. Drawer extension 80%, drawer load capacity 80 kg, central lock. 1x socket 60, 2x 90, 2x 120, 2x 180 mm. Body color RAL 7035 light gray.
- seven-drawer
- central lock
- drawer extension 80%
- drawer capacity 80 kg
- the interior space of the drawers can be equipped with plastic or metal partitions
- blocking against pulling out multiple drawers at once
- upper storage area with rubber pad and edge to prevent small objects from falling over
Technical parameters
Total height
1030 mm
Width
720 mm
Depth
700 mm
Drawer front height
53 / 85 / 85 / 117 / 117 / 181 / 181 mm
Drawer side height
48 / 72 / 72 / 72 / 72 / 136 / 136 mm
Internal dimensions of the drawer
620 x 560 mm
Mass
117.2 kg
Number of sockets
7
Pull out drawers
80%
Load capacity of one drawer
80 kg
Carrying capacity of the hull
300 kg
Welded product
Yes
Warranty (years)
2
Manufacturer
