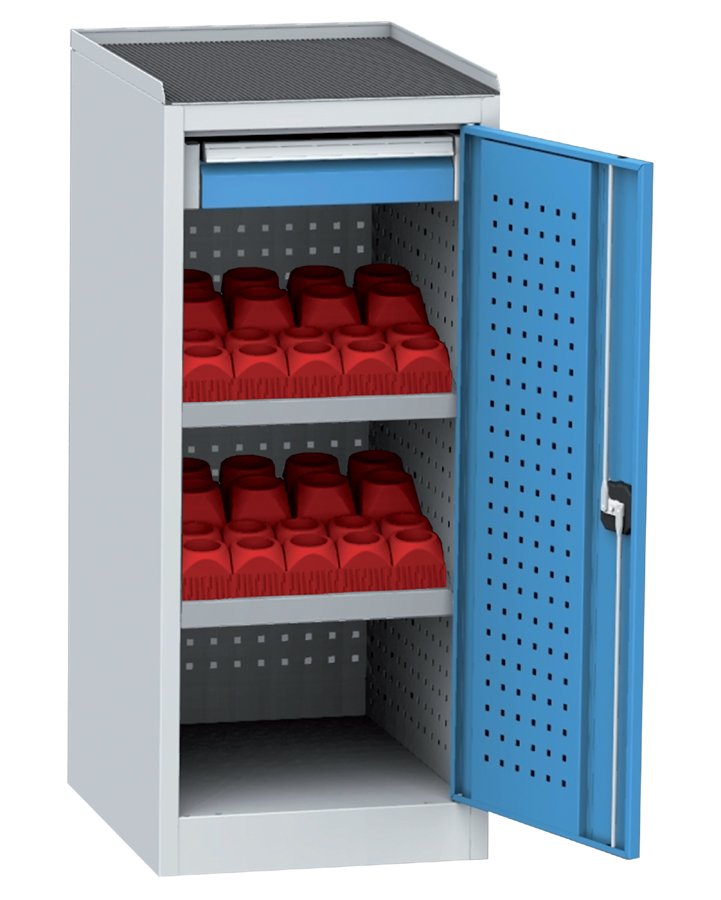

Case for NCS 14B CNC tools

A cabinet for CNC tools with swing doors, full swing doors, load capacity 800kg. Height 1180, width 505, depth 600 mm. Possibility of replacing solid doors with glass doors or doors with wire filling. Body color RAL 7035 light gray.

• two-point door locking
• doors are hung on internal hinges with an opening angle of 110°
• 2x folded shelf type NCS POL 02, adjustable by 25 mm
• shelf area is 435 x 565 mm, shelf load capacity 40 kg
• 1x drawer type SPD 13 Z - front height 100 mm, drawer load capacity 50 kg, adjustable in 25 mm increments

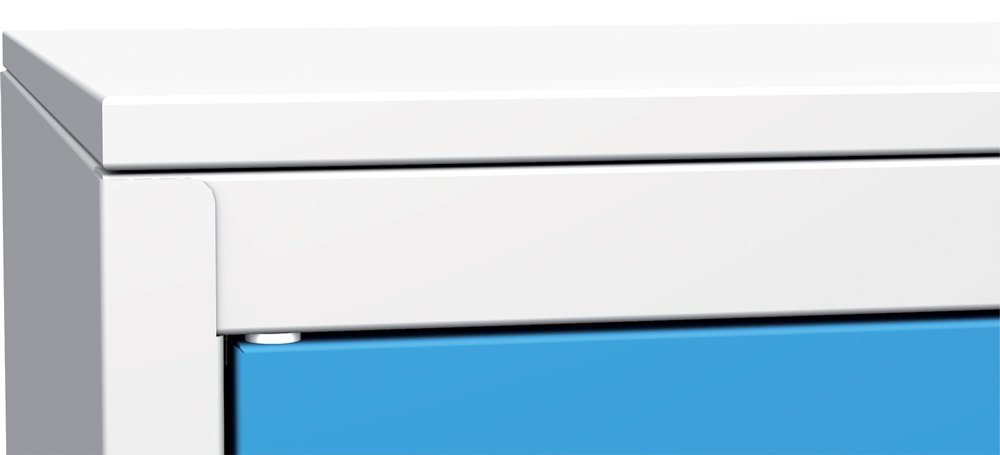

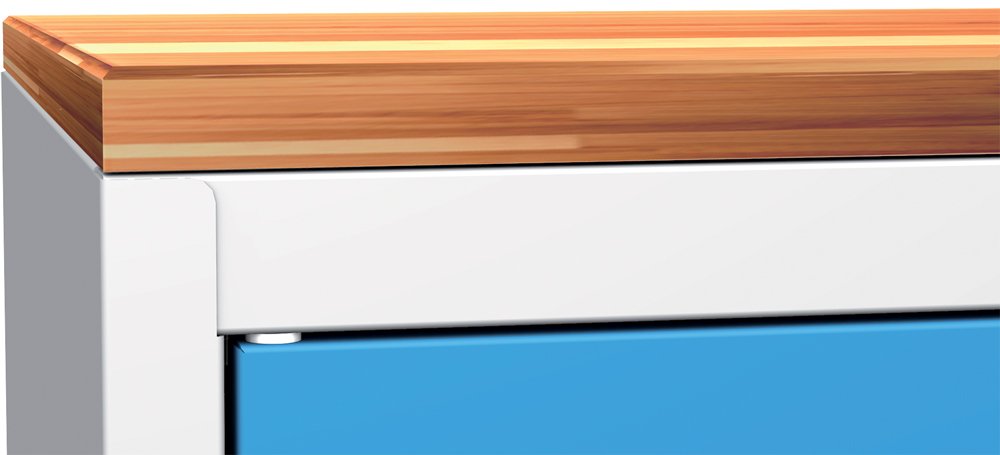

• the steel frame with rubber on the upper surface can be replaced with an 18 mm laminate board or a 25 mm beech joint
• part of the cabinet are internal perforated panels for hanging tool holders - 10 x 10 mm holes in a 38 mm grid

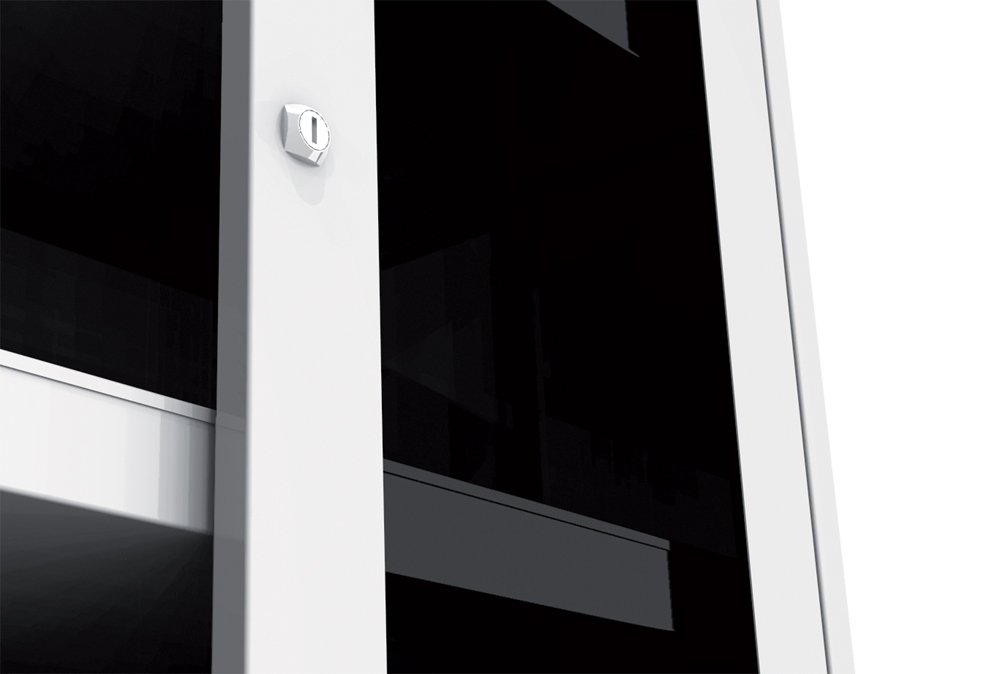

• variant glass door - 4 mm thick safety tempered glass in a steel frame

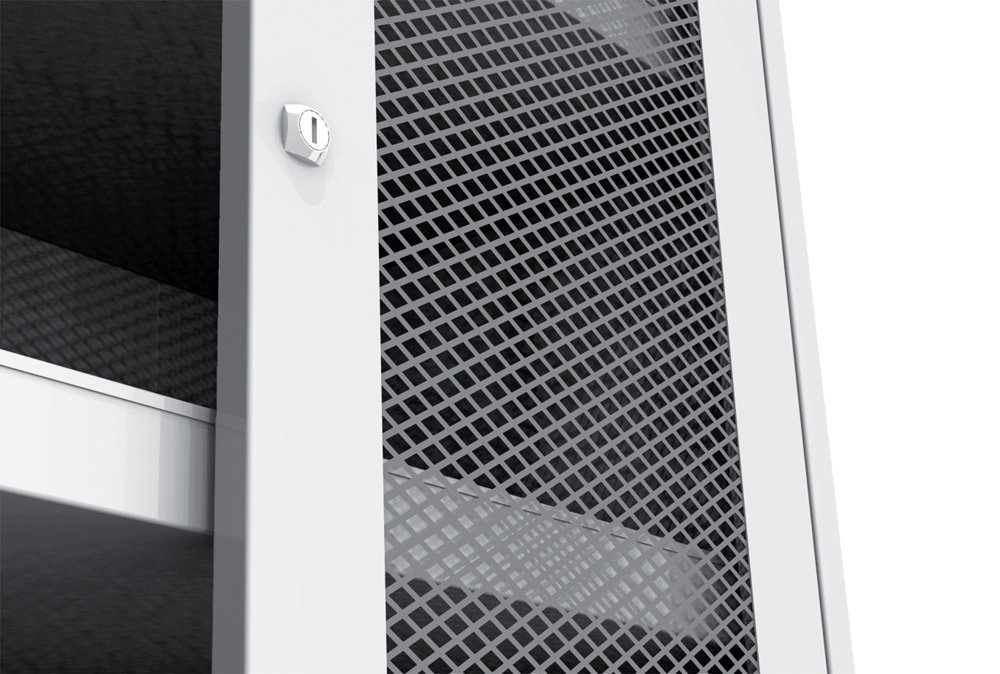

• variant wire door - filling of the steel door frame made of expanded metal in the same color as the body, mesh size 22 x 12 mm
