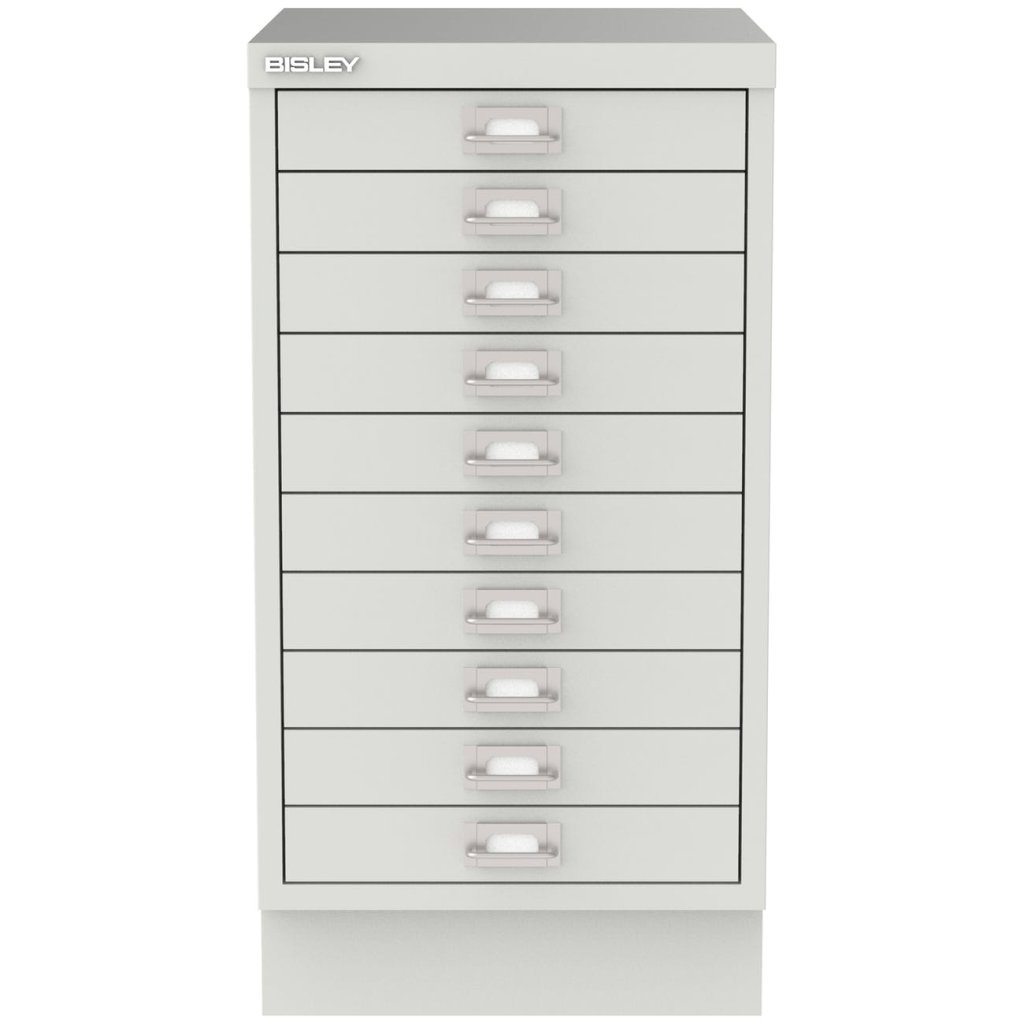

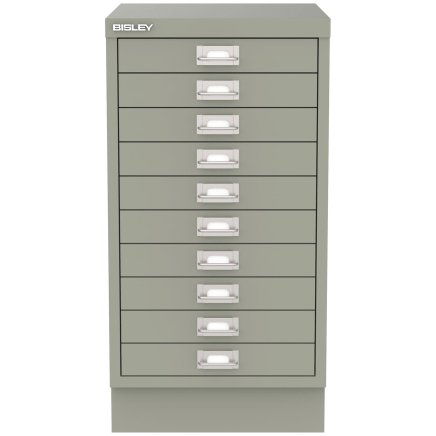

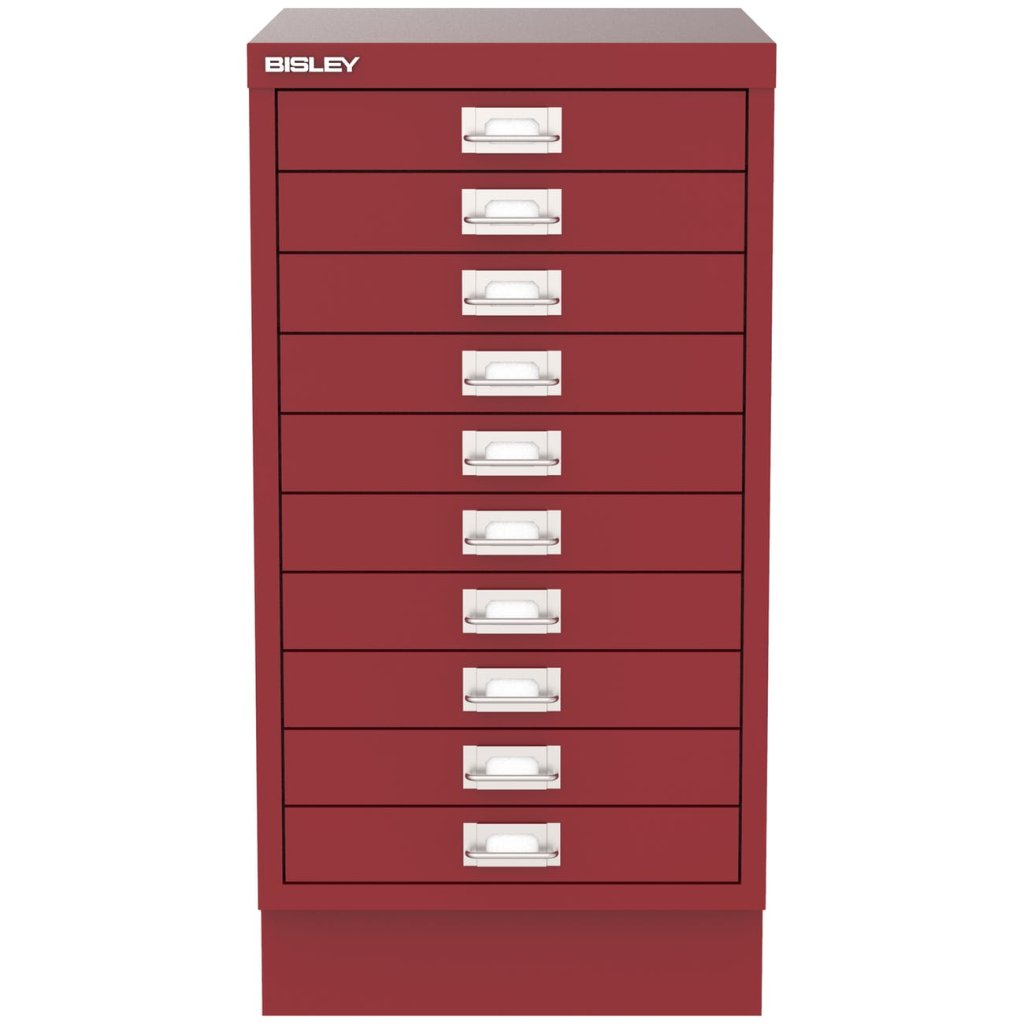

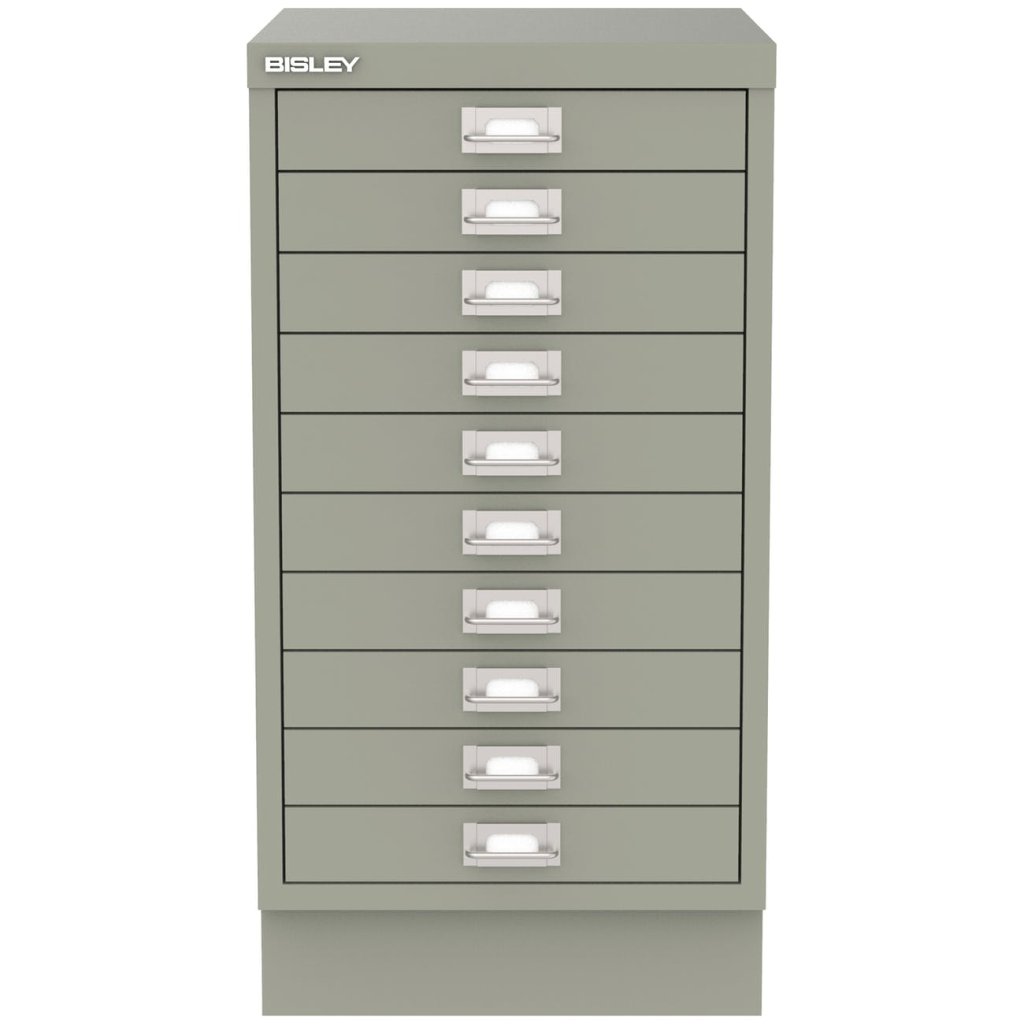

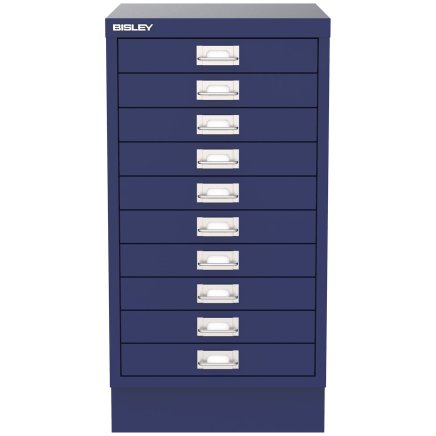

Bisley BA3/10 drawer cabinet, type 116
Code: 116
Ten-drawer metal cabinet A3, width 349, height 670, depth 432 mm. Including plinth in black or on request in the color of the cabinet. full description and parameters
Product description
Bisley BA3/10 drawer cabinet, type 116
Ten-drawer metal cabinet A3, width 349, height 670, depth 432 mm. Including plinth in black or on request in the color of the cabinet.
- chrome handles and frames for description labels
- drawers can be equipped with plastic inserts
- the drawers can be removed outside the body (guides only on fixed guide rails)
- drawer capacity 5.61 kg
- the plinth can be replaced with a base with wheels (CB3)
- weight 23.4 kg
- drawer height: 51 mm (inner 47 mm)
- internal dimensions of the drawer: width 300 mm x depth 417 mm
| Cabinet heights without plinth, including plinth, raised plinth or plinth with wheels | |||
| cabinet height without plinth |
standard plinth | raised plinth | pedestal with wheels |
| 590mm | 670mm | 696mm | 612mm |
Technical parameters
Total height
670 mm
Width
349 mm
Depth
432 mm
Mass
21.4 kg
Execution
drawer cabinet
Number of sockets
10
For format
A3
Welded product
Yes
Manufacturer
