Tailor-made tubular system workshop trolley with container 22082105
Code: 22082105
Workshop trolley made from a tubular modular system. This trolley is equipped with an 18 mm thick laminated chipboard that full description and parameters
Description and technical parameters

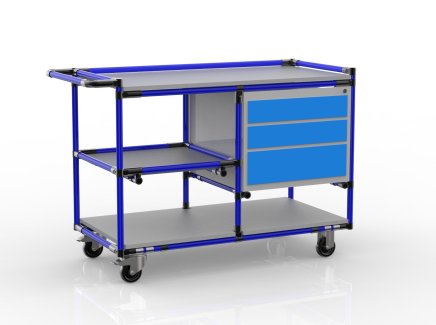

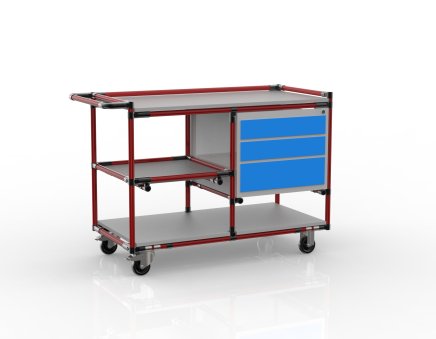

Tailor-made tubular system workshop trolley with container 22082105

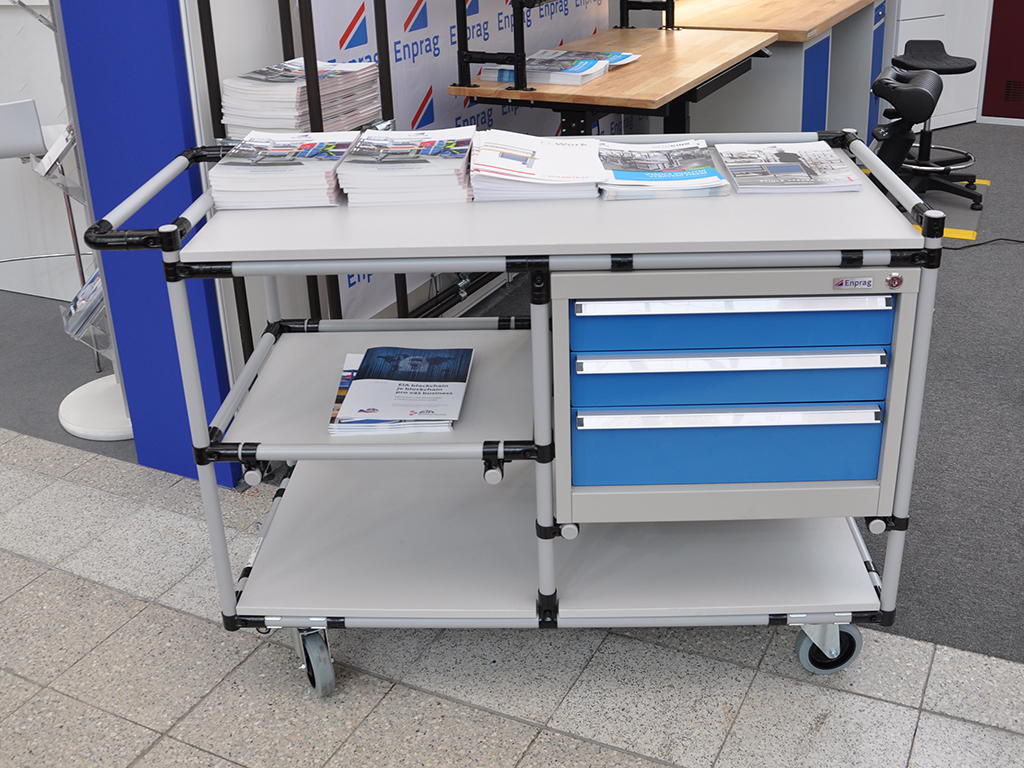

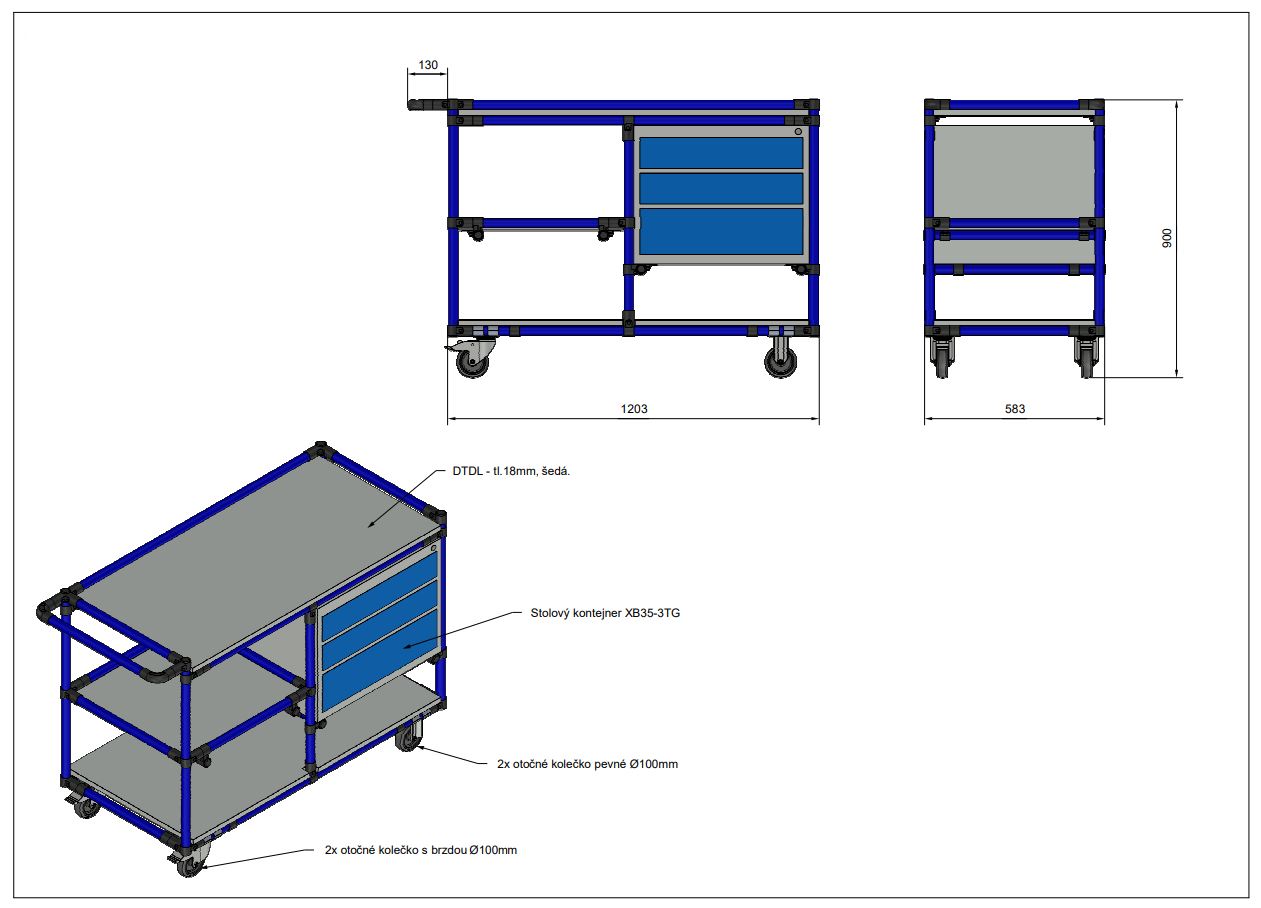

Workshop trolley made from a tubular modular system. This trolley is equipped with an 18 mm thick laminated chipboard that provides a solid and stable work surface. The cart includes four wheels with a diameter of 100 mm and a workshop three-drawer container XB35-3TG for practical storage of tools. Total load capacity 250 kg, floor load capacity 100 kg.
- tailored implementation
- the color of the trolley can be selected according to the available tubes on the website
- DTDL plate thickness 18 mm
- three drawer container XB35-3TG
- total load capacity 250 kg*
- floor load capacity 100 kg*
- 2x swivel wheel with brake Ø100m
- 2x swivel wheel fixed Ø100m
- ESD variant available
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
*at uniform load
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black version | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Total height: | 900 mm |
|---|---|
| Width: | 1203 mm |
| Depth: | 583 mm |
| Carrying capacity: | 250 kg |
| Shelf capacity: | 100 kg |
| Wheel diameter: | mm |
| Equipment: | container - 3x drawer |
| Warranty (years): | 2 |
